Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2019, 08:01 PM

  • 02 1339_02 1338_7222019_130442.mp4

Date
07/22/2019
W/O
0782131
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00238
PipeID
P03863
Time
1:01 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8035
Sewer Name
02 BELVEDERE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
20190722DF_BELVEDERE_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
02 1338
Downstream MH
02 1339
Dir. of Survey
Upstream
Length Surveyed
316.7 ft.
Total Length
316.7 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 1338 to 02 1339
MH: 02 1338MH: 02 1339upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:26 PM0 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout0 ft. MGO - General Observation - ROACHES @ MH1.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish36 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start44.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"122.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open204.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"246.7 ft. MGP - General Photograph312.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"314.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start314.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start316.7 ft. MWM - Water Mark, 45 %of cross sectional area316.7 ft. MWL - Water Level, 40 %of cross sectional area316.7 ft. AMH - Downstream Manhole, Survey Begins - 1:03 PM

Observation photos (3)

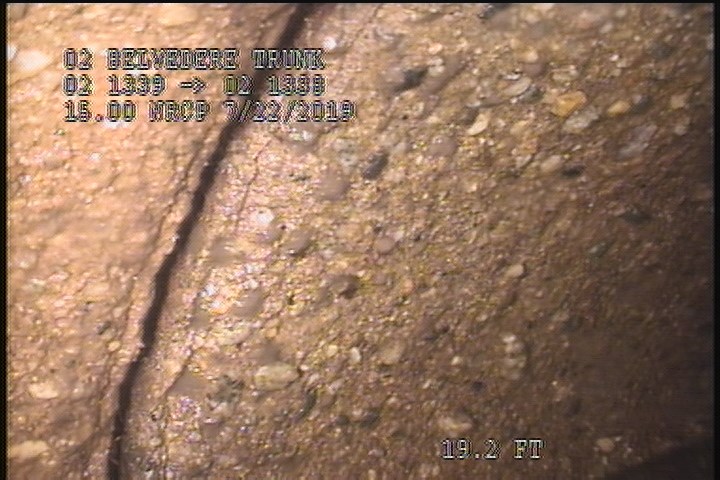

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

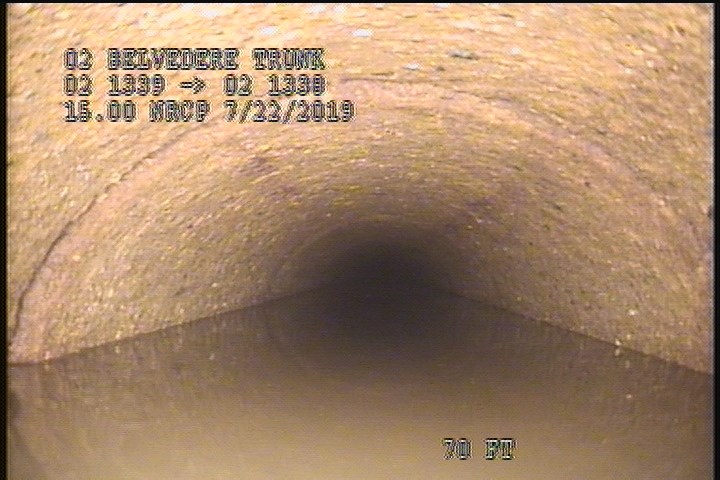

  • General Photograph

    70 ft. - General Photograph

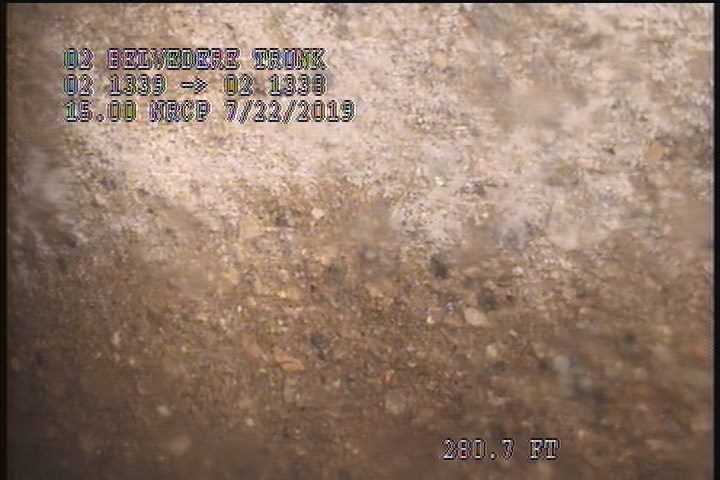

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    280.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P03863Work order 0782131

Observations (17)

DistanceCodeObservation
316.7AMH1:26 PM
316.7MGOMag Coat xx% 9 to 3 o' Clock Throughout
2CM—
315.2SSS—
4TFA—
315.2CM—
272.5TFA—
112.1TFA—
280.7SSS—
2SAV—
0MWM—
0MWL—
316.7MGOROACHES @ MH
0AMH1:03 PM
70MGP—
194.2TFOpen
315.2SAV—

Properties (6)

additional_info
THIS VIDEO IS RECORDED GOING U/S MH 1338 TO MH 1339
custom_field_two
3
customer
LACSD
datetime
2019-07-22T13:01:52-07:00
documentation
FRANKLIN, CASTILLO, RUVALCABA, IGNACIO
is_lateral_inspection
false
