Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2019, 07:22 PM

  • 02 1337_02 1336_7222019_122649.mp4

Date
07/22/2019
W/O
0782131
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00238
PipeID
P03861
Time
12:22 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8035
Sewer Name
02 BELVEDERE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
20190722DF_BELVEDERE_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
02 1337
Downstream MH
02 1336
Dir. of Survey
Downstream
Length Surveyed
280.5 ft.
Total Length
280.5 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 1337 to 02 1336
MH: 02 1337MH: 02 1336downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:24 PM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. UNKNOWN2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 30% MAG2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start63.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"105.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open156.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start208.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open262.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Unkown279.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish279.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 5% MAG279.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish279.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish280.5 ft. MGO - General Observation - Grease Throughout The Reach (5%)280.5 ft. AMH - Downstream Manhole, Survey Ends - 12:44 PM

Observation photos (5)

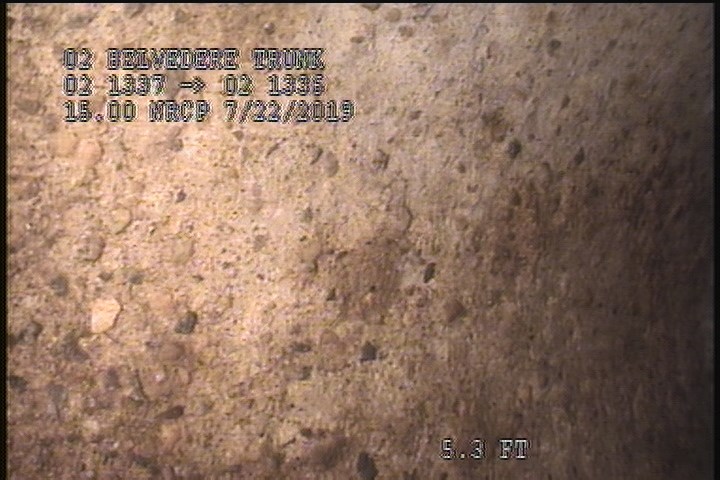

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

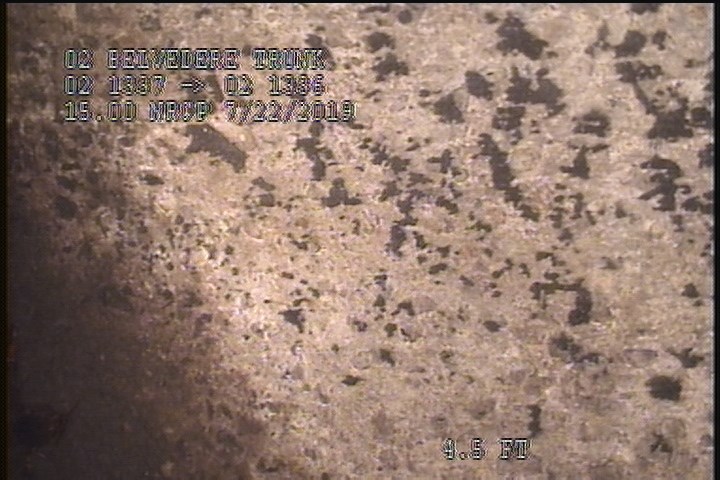

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 30% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 30% MAG

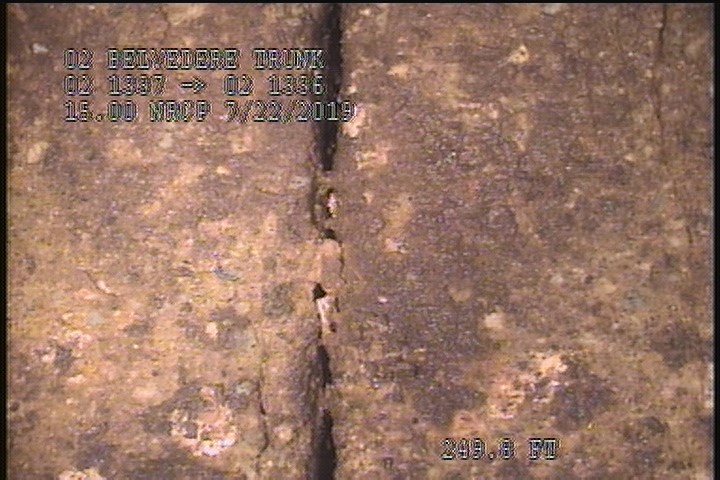

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

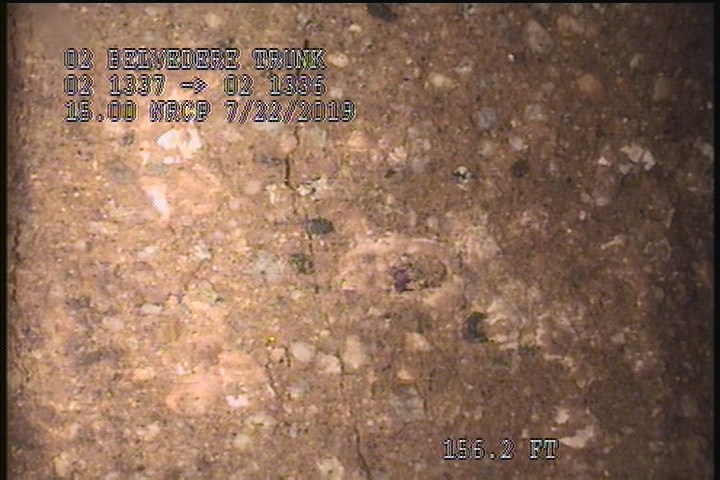

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    156.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

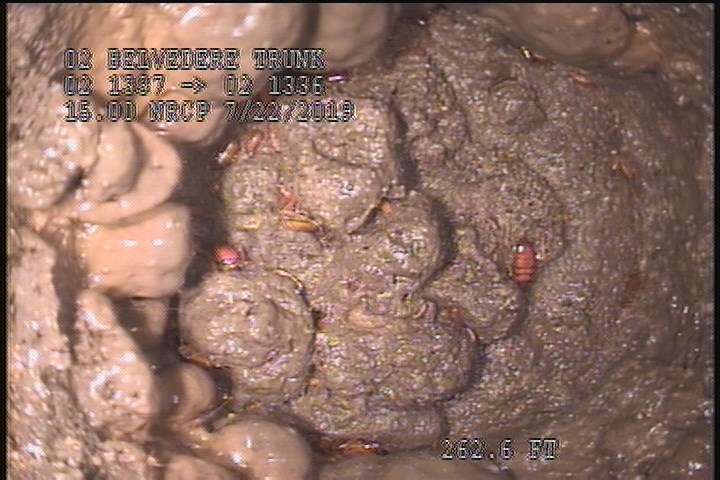

  • Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Unkown

    262.6 ft. - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Unkown

All inspections of P03861Work order 0782131

Observations (19)

DistanceCodeObservation
0AMH12:24 PM
156.2CM—
279.6SSS—
262.6TFUnkown
2MGOConn. @ Mh, 3 O' Clock. UNKNOWN
280.5MGOGrease Throughout The Reach (5%)
105.8TFOpen
2SSS—
279.6SZ5% MAG
2SZ30% MAG
2MGOConn. @ Mh, 9 O' Clock. Active
63.6TFC—
279.6CM—
0MWL—
279.6SAV—
280.5AMH12:44 PM
2SAV—
0MWM—
208.9TFOpen

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-07-22T12:22:55-07:00
documentation
FRANKLIN, CASTILLO, RUVALCABA, IGNACIO
is_lateral_inspection
false
