Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2019, 06:39 PM

  • 02 1338_02 1337_7222019_115635.mp4

Date
07/22/2019
W/O
0782131
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00238
PipeID
P03862
Time
11:39 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8035
Sewer Name
02 BELVEDERE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
20190722DF_BELVEDERE_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
02 1338
Downstream MH
02 1337
Dir. of Survey
Downstream
Length Surveyed
330.4 ft.
Total Length
330.4 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 1338 to 02 1337
MH: 02 1338MH: 02 1337downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:42 AM0.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.1 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. Active0.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start20.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start79.7 ft. MGP - General Photograph136 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open158.9 ft. SZ - Surface Other, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - 5% MAG246.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 40% MAG259.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - OPEN327.3 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% MAG327.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish327.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish327.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish327.3 ft. SZ - Surface Other, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish - 5% MAG330.4 ft. AMH - Downstream Manhole, Survey Ends - 12:22 PM330.4 ft. MGO - General Observation - Grease Throughout The Reach (5%)330.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active330.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN

Observation photos (4)

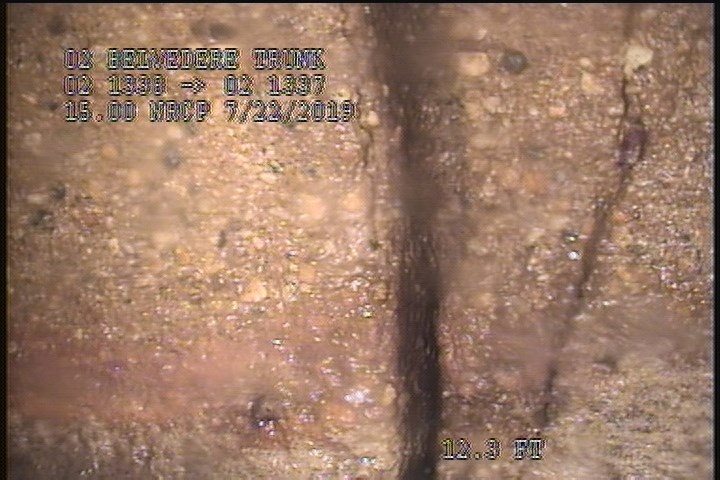

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

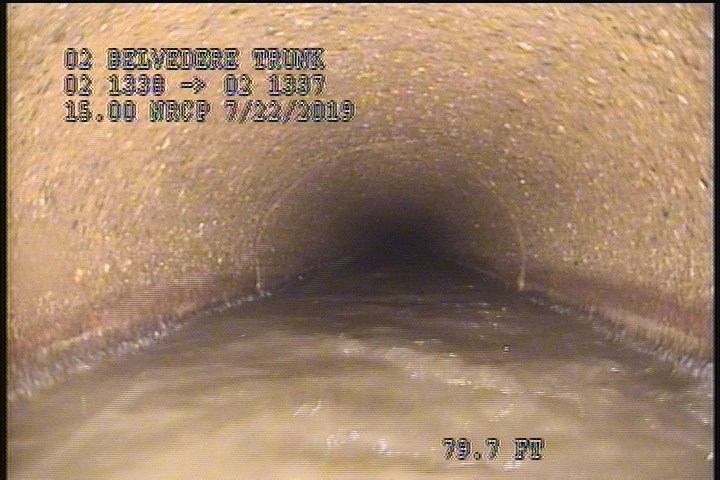

  • General Photograph

    79.7 ft. - General Photograph

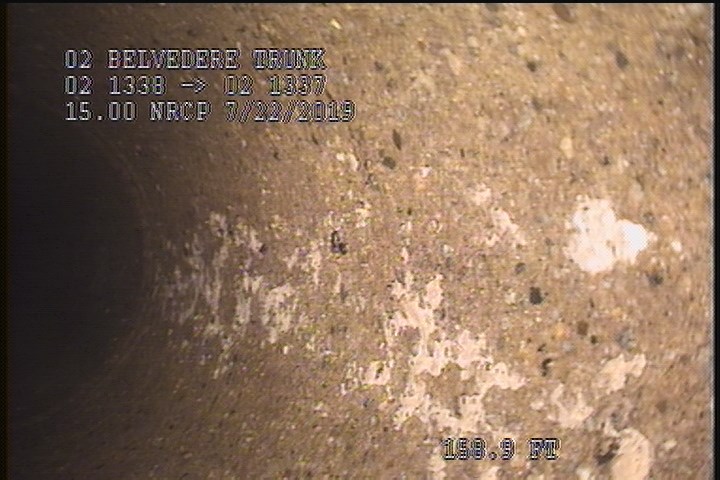

  • Surface Other, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - 5% MAG

    158.9 ft. - Surface Other, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - 5% MAG

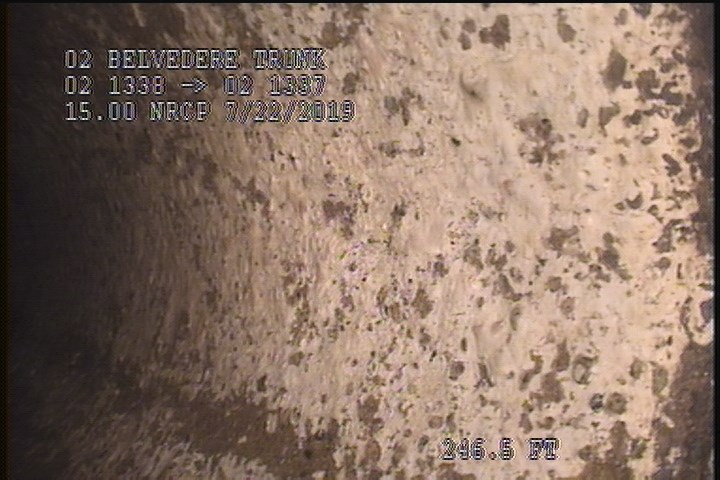

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 40% MAG

    246.5 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 40% MAG

All inspections of P03862Work order 0782131

Observations (23)

DistanceCodeObservation
246.5SZ40% MAG
327.3SZ40% MAG
2SSS—
20.8SAV—
0.1MGOConn. @ Mh, 3 O' Clock. Active
0AMH11:42 AM
259.7TFOPEN
327.3SAV—
0.1MWM—
327.3SSS—
2CM—
158.9SZ5% MAG
327.3CM—
327.3SZ5% MAG
0.1MWL—
330.4AMH12:22 PM
79.7MGP—
330.4MGOGrease Throughout The Reach (5%)
330.4MGOConn. @ Mh, 9 O' Clock. Active
136TFOpen
0.1MGOConn. @ Mh, 6 O' Clock. Active
0.1MGOConn. @ Mh, 9 O' Clock. Active
330.4MGOConn. @ Mh, 3 O' Clock. OPEN

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-07-22T11:39:19-07:00
documentation
FRANKLIN, CASTILLO, RUVALCABA, IGNACIO
is_lateral_inspection
false
