Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 7, 2018, 06:00 AM

  • 16 0048_16 0047 _09062018_230057.mp4

Date
09/06/2018
W/O
723896
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00639
PipeID
P13061
Time
11:00 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6024
Sewer Name
16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
City
SAN GABRIEL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
01
Purpose
Routine Assessment
Project
WO_723896_TV16113_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Width
16 in.
Upstream MH
16 0048
Downstream MH
16 0047
Dir. of Survey
Downstream
Length Surveyed
269.7 ft.
Total Length
269.7 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
93
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
93
Pipe schematic from manhole 16 0048 to 16 0047
MH: 16 0048MH: 16 0047downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 00480 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 20 %of cross sectional area41.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES118.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start267.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish269.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE269.7 ft. AMH - Downstream Manhole, Survey Ends - 16 0047

Observation photos (4)

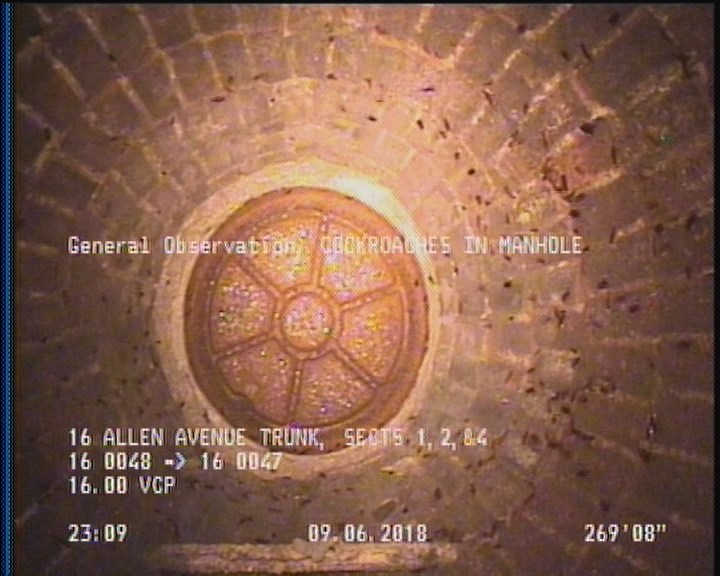

  • General Observation - COCKROACHES IN MANHOLE

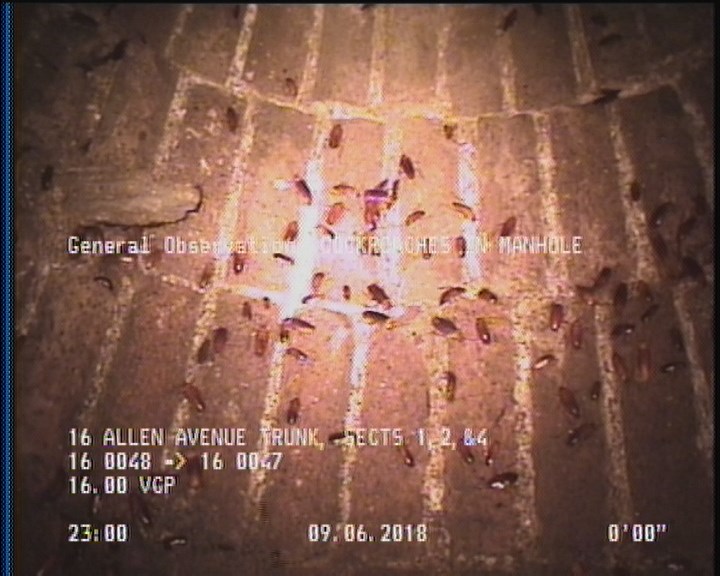

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

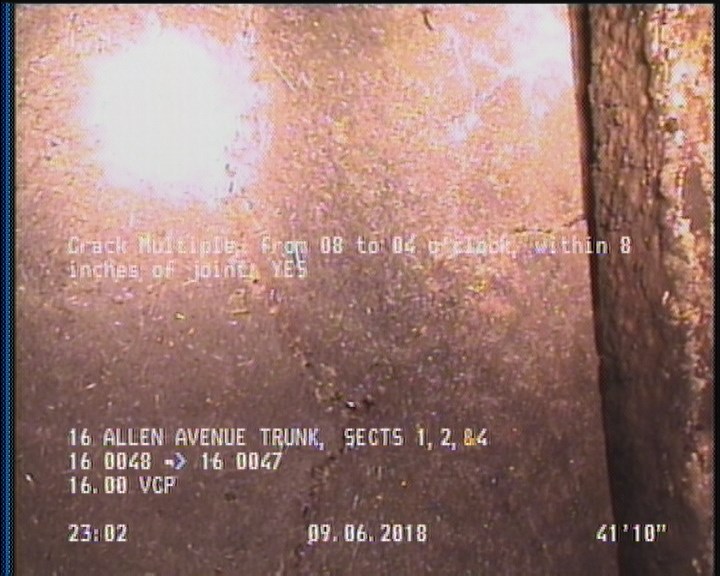

    41.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

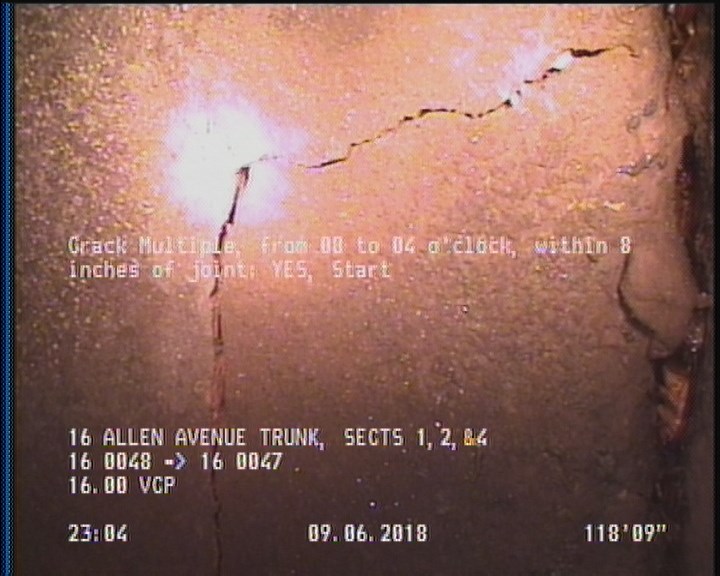

    118.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    269.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13061Work order 723896

Observations (9)

DistanceCodeObservation
0MWL—
118.8CM—
267.1CM—
0AMH16 0048
269.7MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
41.7CM—
269.7AMH16 0047
0MWM—

Properties (6)

additional_info
SC364788
custom_field_two
3
customer
LACSD
datetime
2018-09-06T23:00:41-07:00
documentation
PRO PIPE
is_lateral_inspection
false
