Wastewater/Activity/PacpInspection/1.0Sep 7, 2018, 09:22 AM
16 0043_16 0042 _09072018_022249.mp4
- Date
- 09/07/2018
- W/O
- 723896
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00639
- PipeID
- P13056
- Time
- 2:22 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6024
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_723896_TV16113_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0043
- Downstream MH
- 16 0042
- Dir. of Survey
- Downstream
- Length Surveyed
- 327.2 ft.
- Total Length
- 327.2 ft.
- Structural Index
- 3
- Structural Quick
- 3L21
- Structural Rating
- 194
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 326
Observation photos (5)

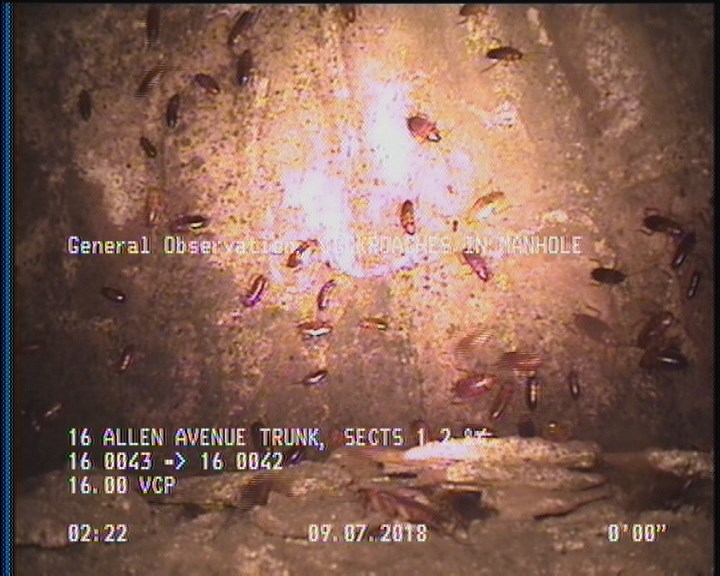

0 ft. - General Observation - COCKROACHES IN MANHOLE

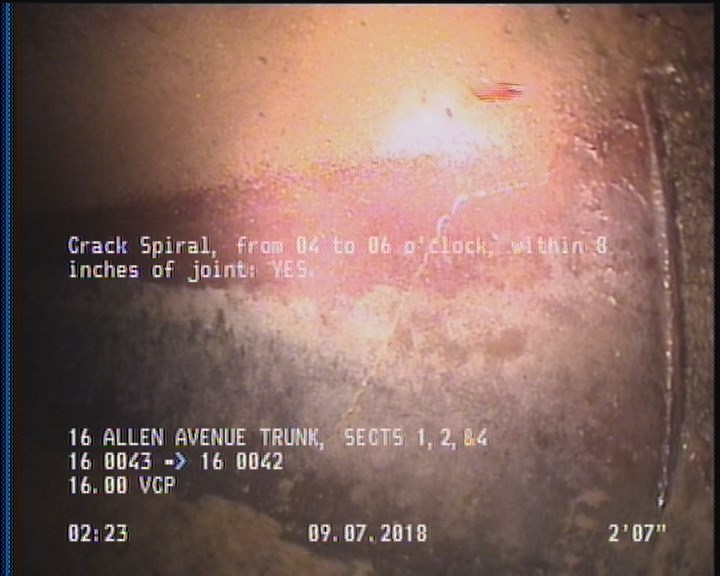

2.6 ft. - Crack Spiral, from 04 to 06 o'clock, within 8 inches of joint: YES

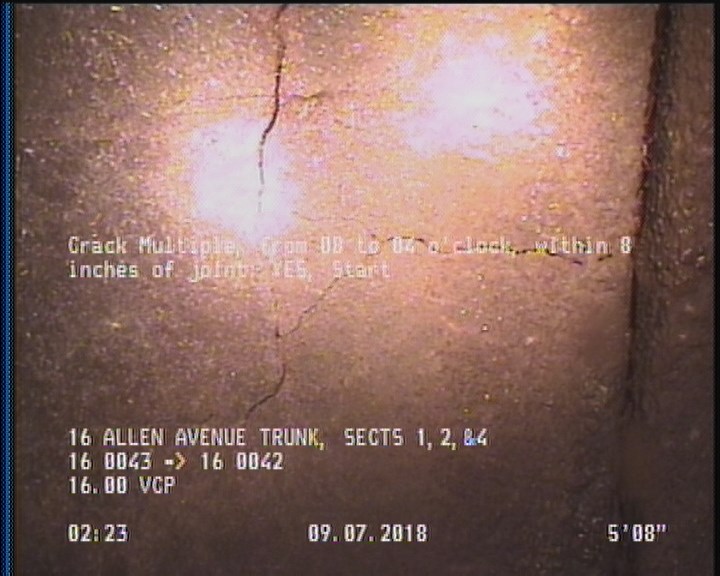

5.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

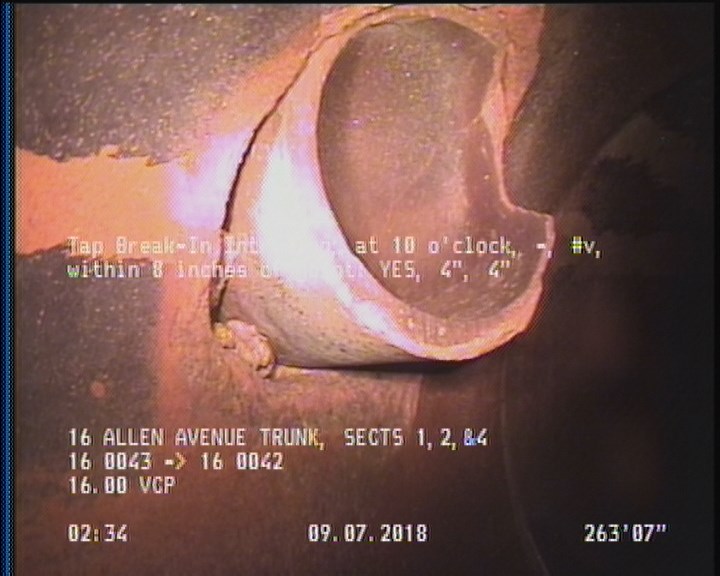

263.6 ft. - Tap Break-In Intruding, at 10 o'clock, -, #v, within 8 inches of joint: YES, 4", 4"

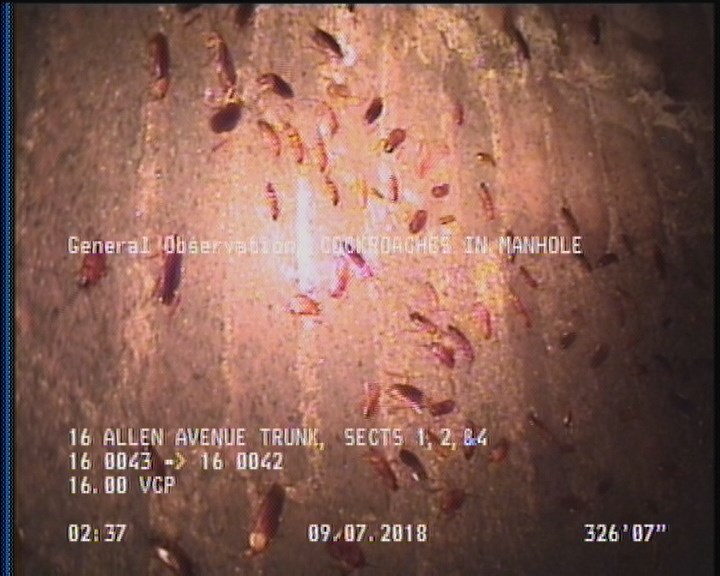

326.6 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | COCKROACHES IN MANHOLE |
| 326.6 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 326.6 | DAGS | — |
| 327.2 | AMH | 16 0042 |
| 5.7 | CM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 98.1 | TB | — |
| 263.6 | TBI | — |
| 0 | AMH | 16 0043 |
| 2.6 | CS | — |
| 326.6 | CM | — |
| 233.6 | TB | — |
| 10.9 | TBA | — |
Properties (6)
- additional_info
- SC364788
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-07T02:22:42-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
