Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 10:01 AM
08 0304_08 0303_09172018_030044.mp4
- Date
- 09/17/2018
- W/O
- 723814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00013
- PipeID
- P00350
- Time
- 3:01 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6027
- Sewer Name
- 08 KEYSTONE TRUNK
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_723814_TV08155_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0304
- Downstream MH
- 08 0303
- Dir. of Survey
- Downstream
- Length Surveyed
- 322.8 ft.
- Total Length
- 322.8 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 174
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 302
Observation photos (3)

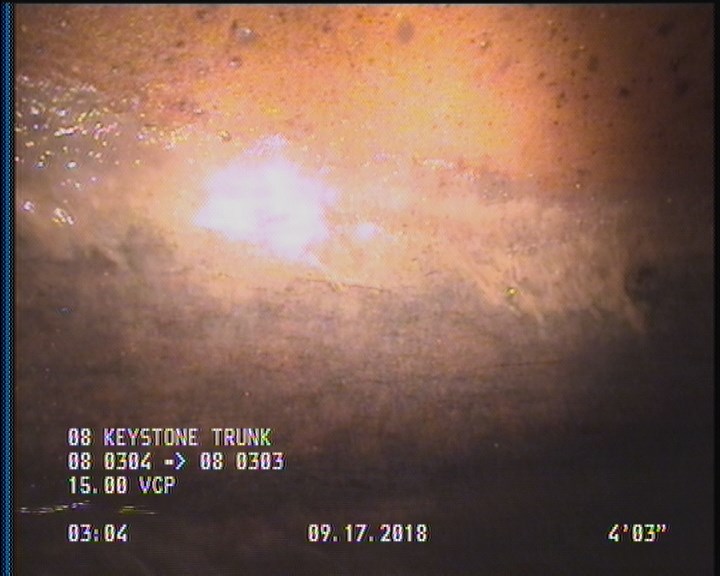

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

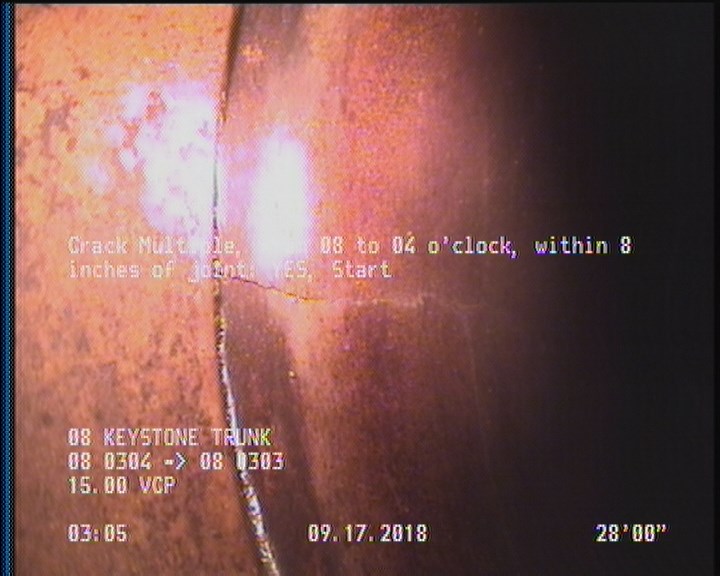

28 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

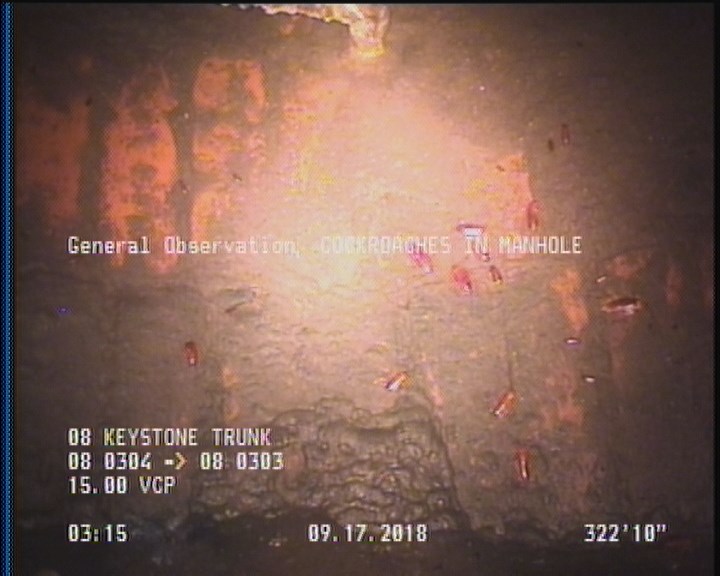

322.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 48.3 | TF | — |
| 248.6 | TFC | — |
| 321.3 | DAGS | — |
| 200.6 | TF | — |
| 6.8 | TF | — |
| 100.7 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION A MH 9 O'CLOCK |
| 0 | MWM | — |
| 322.8 | MGO | COCKROACHES IN MANHOLE |
| 322.8 | AMH | 08 0303 |
| 283.4 | TFC | — |
| 154.5 | TF | — |
| 311.8 | TFC | — |
| 28 | CM | — |
| 318.5 | CM | — |
| 0 | AMH | 08 0304 |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC364791
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-17T03:01:34-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
