Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 08:46 AM

  • 08 0306_08 0305A_09172018_014617.mp4

Date
09/17/2018
W/O
723814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00013
PipeID
P00355
Time
1:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6027
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
Page No.
10
Purpose
Routine Assessment
Project
WO_723814_TV08155_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0306
Downstream MH
08 0305A
Dir. of Survey
Downstream
Length Surveyed
92.8 ft.
Total Length
92.8 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
45
O&M Index
2
O&M Quick
2C00
O&M Rating
36
Overall Index
2
Overall Quick
—
Overall Rating
81
Pipe schematic from manhole 08 0306 to 08 0305A
MH: 08 0306MH: 08 0305Adownstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION A MH 3 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 03060 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start15.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"91.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish91.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish92.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE92.8 ft. AMH - Downstream Manhole, Survey Ends - 08 0305A92.8 ft. MGO - General Observation - ACTIVE CONNECTION A MH 9 O'CLOCK

Observation photos (4)

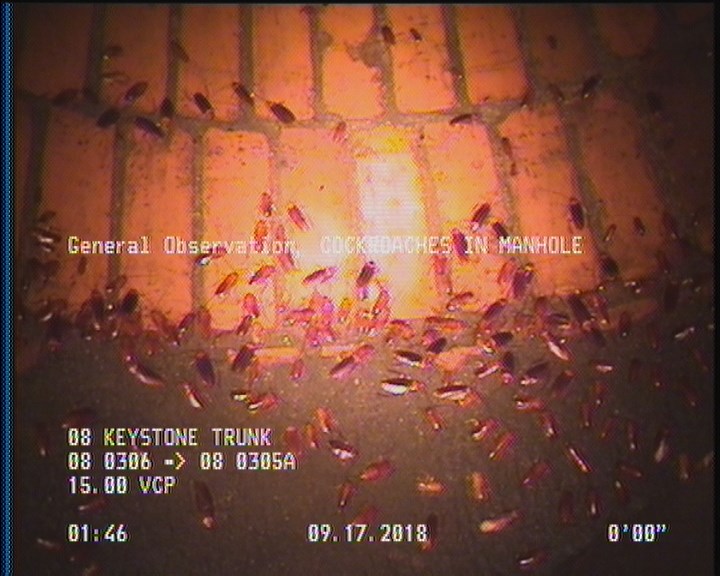

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

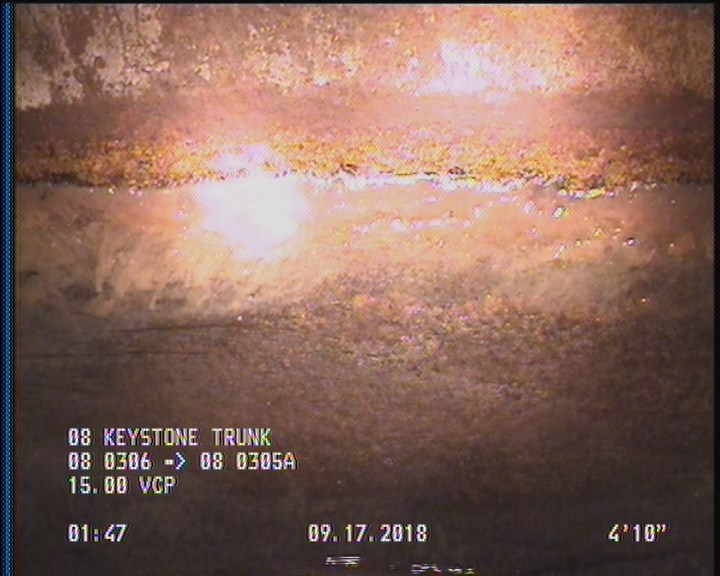

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

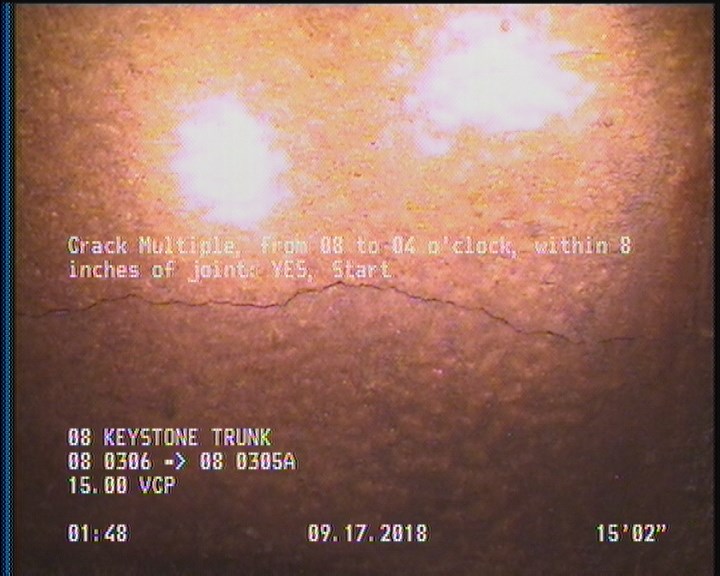

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    15.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

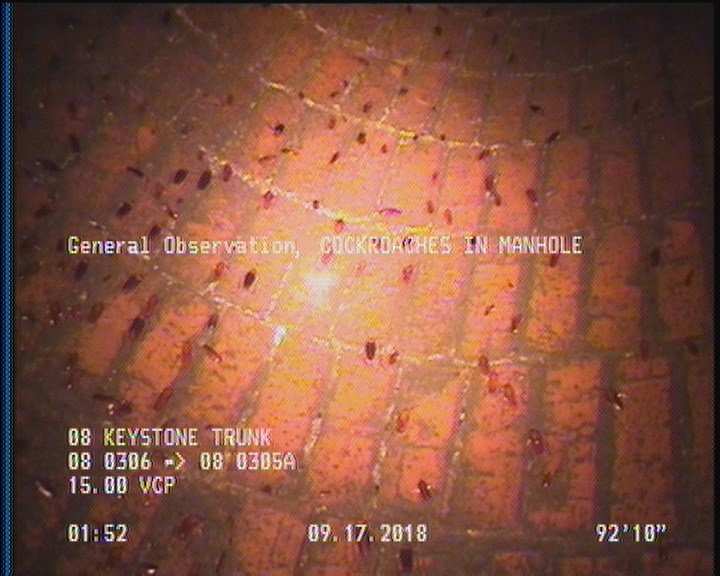

  • General Observation - COCKROACHES IN MANHOLE

    92.8 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00355Work order 723814

Observations (13)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
2DAGS—
0MGOACTIVE CONNECTION A MH 3 O'CLOCK
91.3DAGS—
0MWL—
51.9TFC—
0AMH08 0306
15.2CM—
0MWM—
92.8MGOCOCKROACHES IN MANHOLE
91.3CM—
92.8AMH08 0305A
92.8MGOACTIVE CONNECTION A MH 9 O'CLOCK

Properties (6)

additional_info
SC364791
custom_field_two
2
customer
LACSD
datetime
2018-09-17T01:46:10-07:00
documentation
PRO PIPE
is_lateral_inspection
false
