Wastewater/Activity/PacpInspection/1.0Sep 18, 2018, 06:03 AM
08 0327_08 0326_09172018_230346.mp4
- Date
- 09/17/2018
- W/O
- 723814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00013
- PipeID
- P00375
- Time
- 11:03 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6029
- Sewer Name
- 08 KEYSTONE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_723814_TV08155_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0327
- Downstream MH
- 08 0326
- Dir. of Survey
- Downstream
- Length Surveyed
- 334 ft.
- Total Length
- 334 ft.
- Structural Index
- 4
- Structural Quick
- 4L00
- Structural Rating
- 260
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 392
Observation photos (3)

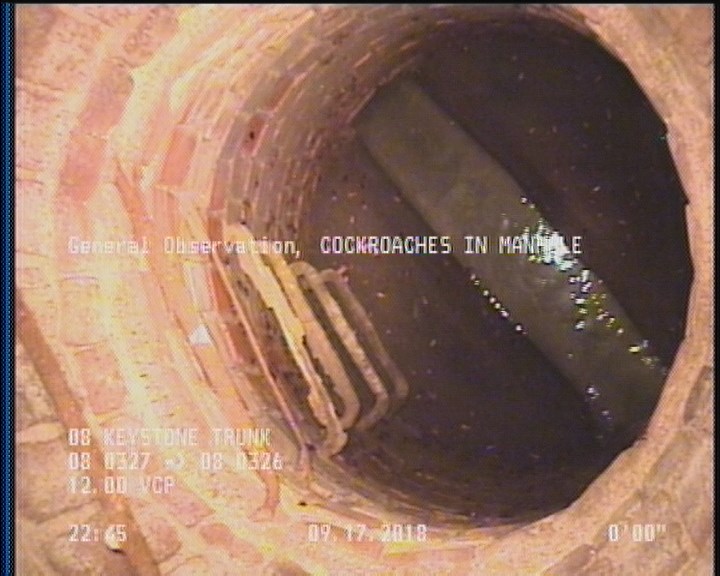

0 ft. - General Observation - COCKROACHES IN MANHOLE

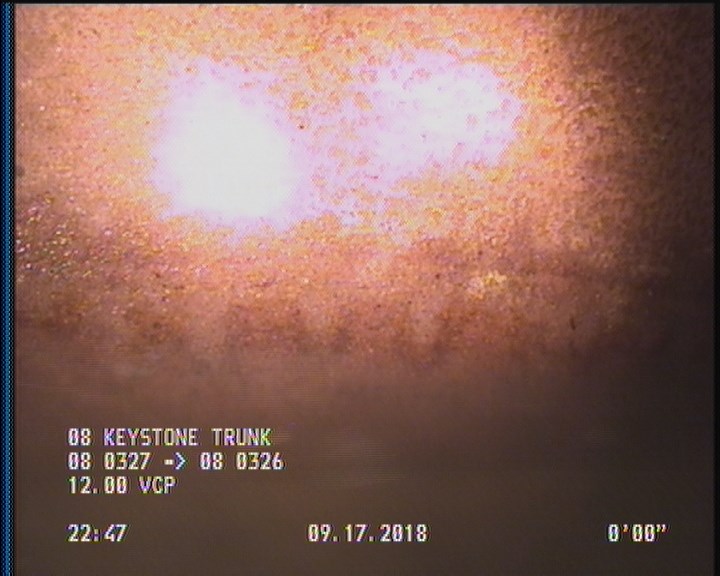

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

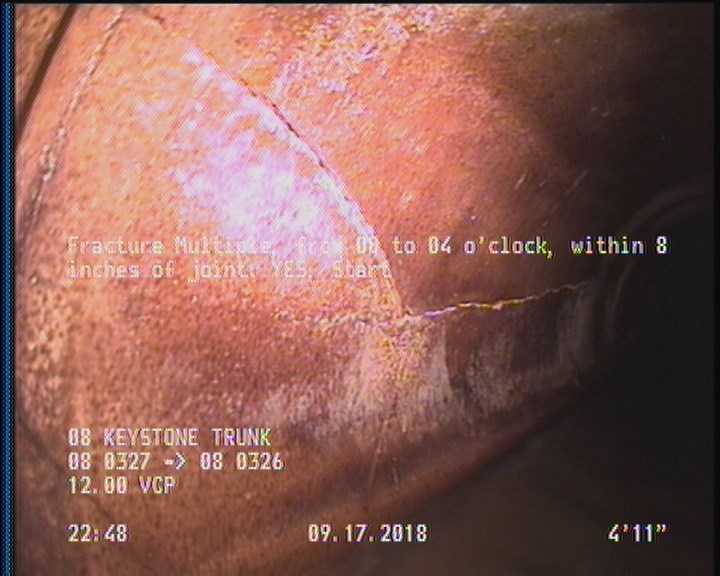

4.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | COCKROACHES IN MANHOLE |
| 286.4 | TFC | — |
| 242.1 | TFC | — |
| 332.2 | DAGS | — |
| 2 | DAGS | — |
| 143.5 | TFC | — |
| 194.5 | TFC | — |
| 89.3 | TFC | — |
| 0 | MWM | — |
| 4.9 | FM | — |
| 35.6 | TF | — |
| 332.2 | FM | — |
| 334 | AMH | 08 0326 |
| 0 | AMH | 08 0327 |
| 0 | MWL | — |
| 326.2 | TFC | — |
Properties (6)
- additional_info
- SC364793
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-17T23:03:40-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
