Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 18, 2018, 08:57 AM

  • 08 0319_08 0318_09182018_015739.mp4

Date
09/18/2018
W/O
723814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00013
PipeID
P00366
Time
1:57 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6029
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_723814_TV08155_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0319
Downstream MH
08 0318
Dir. of Survey
Downstream
Length Surveyed
334.9 ft.
Total Length
334.9 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
198
O&M Index
2
O&M Quick
412L
O&M Rating
136
Overall Index
3
Overall Quick
—
Overall Rating
334
Pipe schematic from manhole 08 0319 to 08 0318
MH: 08 0319MH: 08 0318downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 03190 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"60.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"89.6 ft. MGO - General Observation - UNMAPPED MH92 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK110.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"160.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"211.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"262 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"311.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"331.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish331.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE331.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish334.9 ft. AMH - Downstream Manhole, Survey Ends - 08 0318334.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (5)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

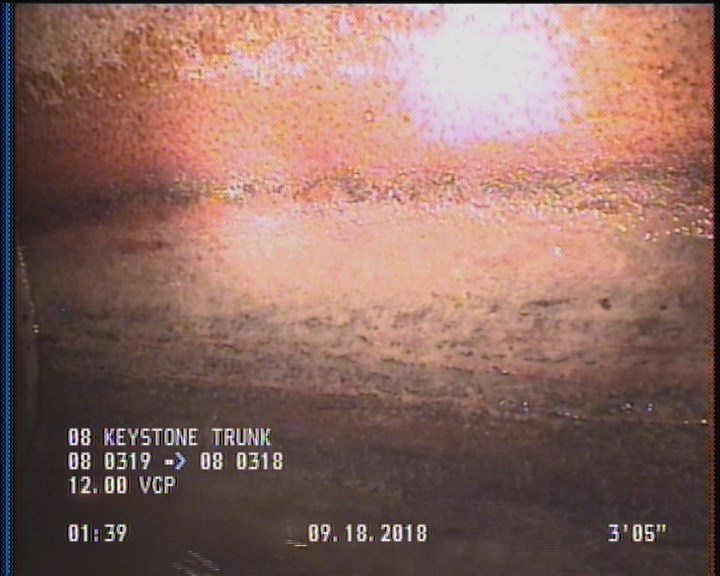

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

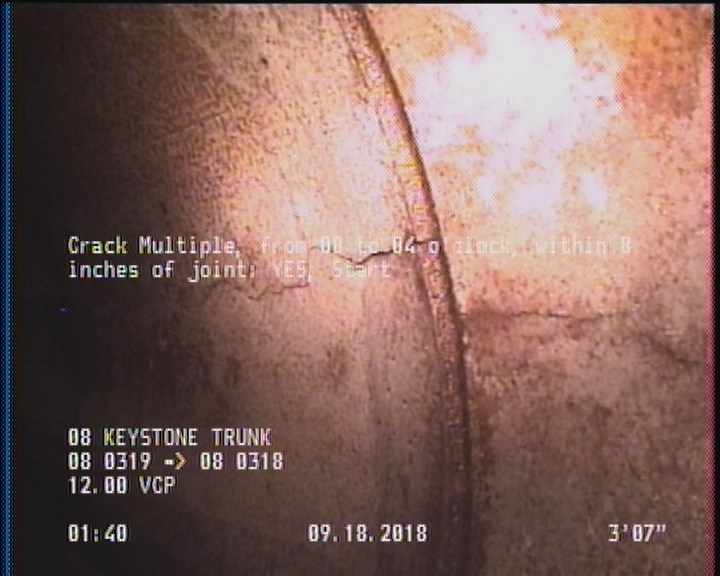

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

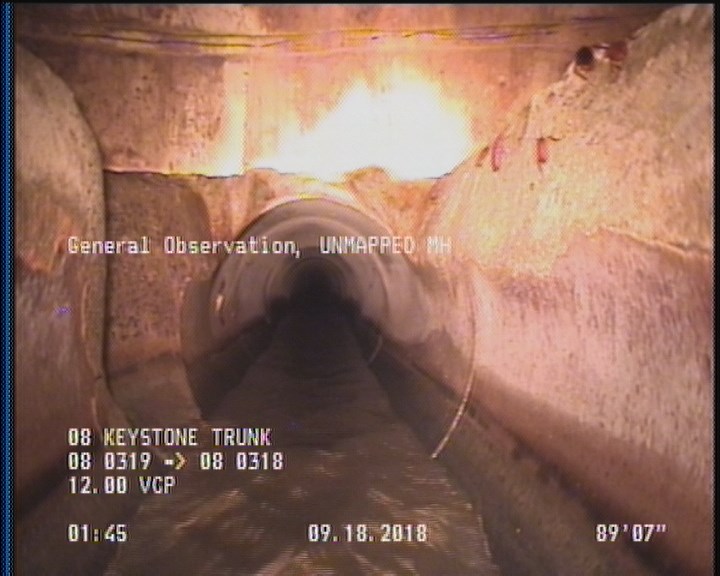

  • General Observation - UNMAPPED MH

    89.6 ft. - General Observation - UNMAPPED MH

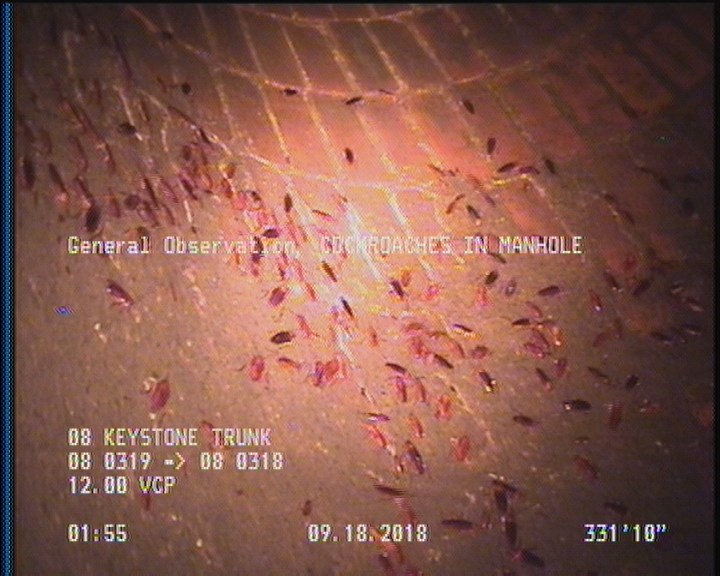

  • General Observation - COCKROACHES IN MANHOLE

    331.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00366Work order 723814

Observations (21)

DistanceCodeObservation
0MWL—
331.9DAGS—
0AMH08 0319
331.9MGOCOCKROACHES IN MANHOLE
89.6MGOUNMAPPED MH
0MGOCOCKROACHES IN MANHOLE
0MWM—
2DAGS—
334.9AMH08 0318
262TFA—
211.5TFC—
60.5TFC—
10.5TFC—
311.9TF—
160.8TFC—
331.9CM—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
334.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
92MGOACTIVE CONNECTION AT MH 9 O'CLOCK
3.6CM—
110.4TFC—

Properties (6)

additional_info
SC364793
custom_field_two
2
customer
LACSD
datetime
2018-09-18T01:57:33-07:00
documentation
PRO PIPE
is_lateral_inspection
false
