Wastewater/Activity/PacpInspection/1.0Sep 18, 2018, 06:32 AM
08 0325_08 0324_09172018_233302.mp4
- Date
- 09/17/2018
- W/O
- 723814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00013
- PipeID
- P00373
- Time
- 11:32 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6029
- Sewer Name
- 08 KEYSTONE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_723814_TV08155_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0325
- Downstream MH
- 08 0324
- Dir. of Survey
- Downstream
- Length Surveyed
- 173.1 ft.
- Total Length
- 173.1 ft.
- Structural Index
- 4
- Structural Quick
- 4F00
- Structural Rating
- 132
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 68
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 200
Observation photos (3)

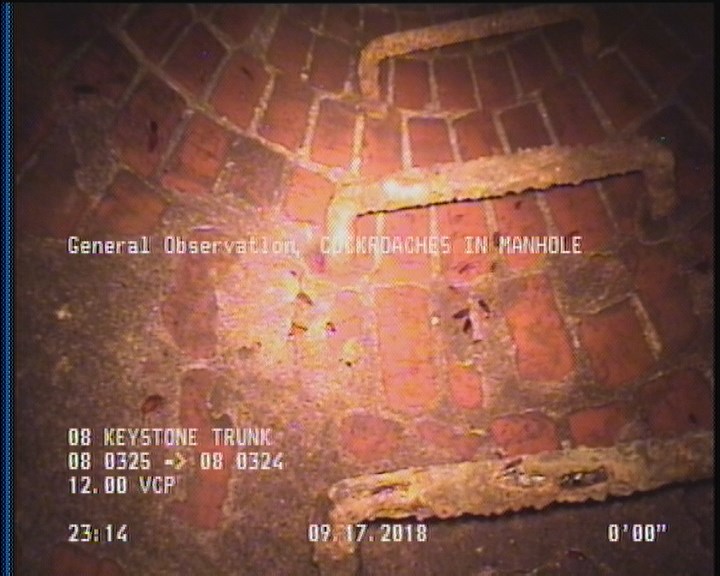

0 ft. - General Observation - COCKROACHES IN MANHOLE

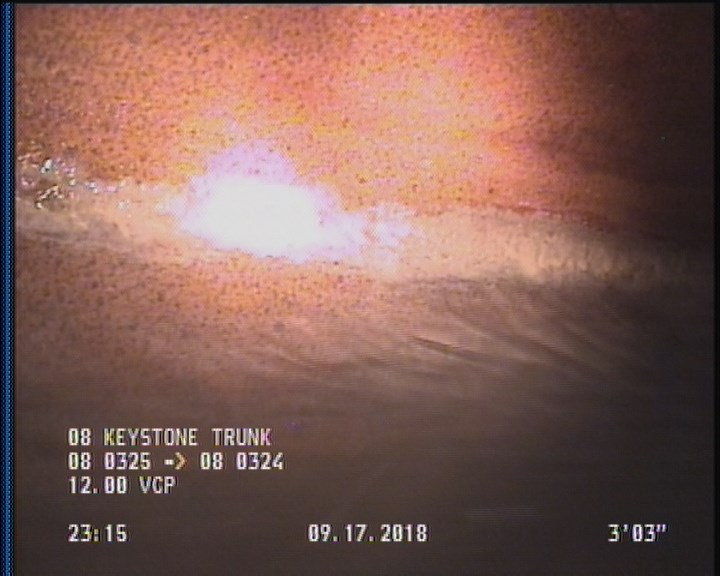

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

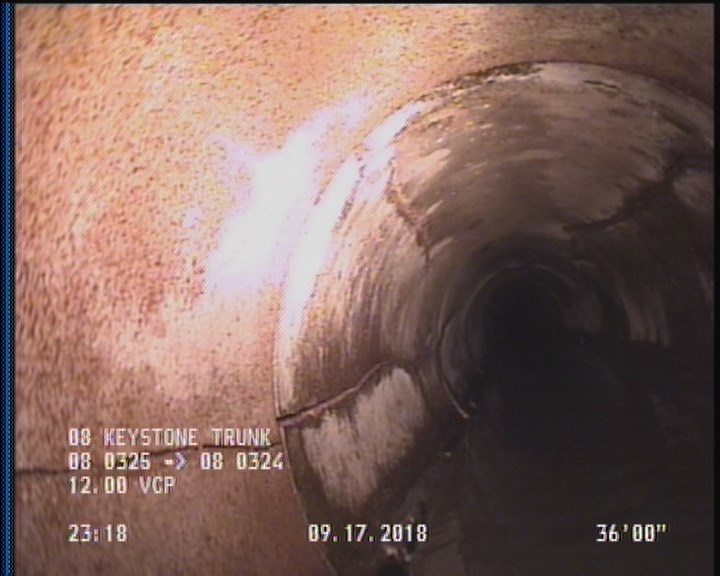

4.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 173.1 | AMH | 08 0324 |
| 0 | MWL | — |
| 100.9 | TFC | — |
| 36 | TBA | — |
| 0 | AMH | 08 0325 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 53.9 | TFC | — |
| 151.9 | TFA | — |
| 0 | MWM | — |
| 170.9 | DAGS | — |
| 2 | DAGS | — |
| 8.2 | TFC | — |
| 4.7 | FM | — |
| 170.6 | FM | — |
Properties (6)
- additional_info
- SC364793
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-17T23:32:56-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
