Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 08:40 AM

  • 08 0307_08 0306_09172018_014027.mp4

Date
09/17/2018
W/O
723814
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00013
PipeID
P00353
Time
1:40 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6027
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_723814_TV08155_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0307
Downstream MH
08 0306
Dir. of Survey
Downstream
Length Surveyed
81.7 ft.
Total Length
81.7 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
45
O&M Index
2
O&M Quick
2B00
O&M Rating
30
Overall Index
3
Overall Quick
—
Overall Rating
75
Pipe schematic from manhole 08 0307 to 08 0306
MH: 08 0307MH: 08 0306downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 03070 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start20.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"78.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish78.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish81.7 ft. MGO - General Observation - ACTIVE CONNECTION A MH 3 O'CLOCK81.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE81.7 ft. AMH - Downstream Manhole, Survey Ends - 08 0306

Observation photos (4)

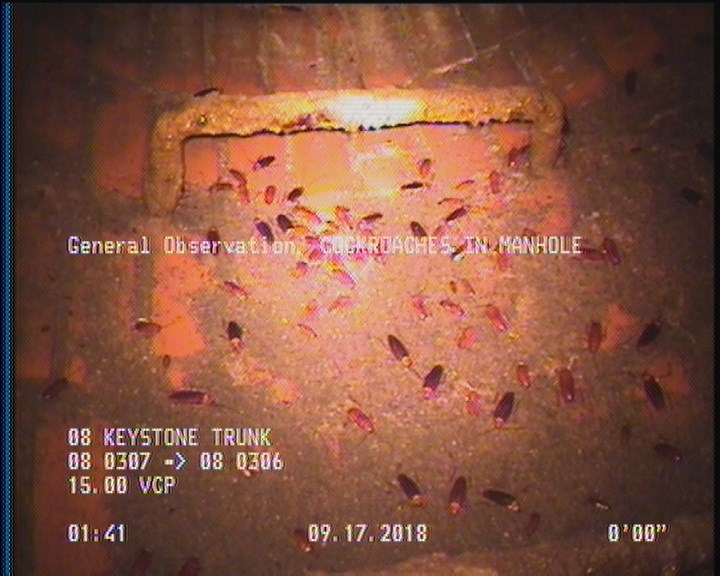

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

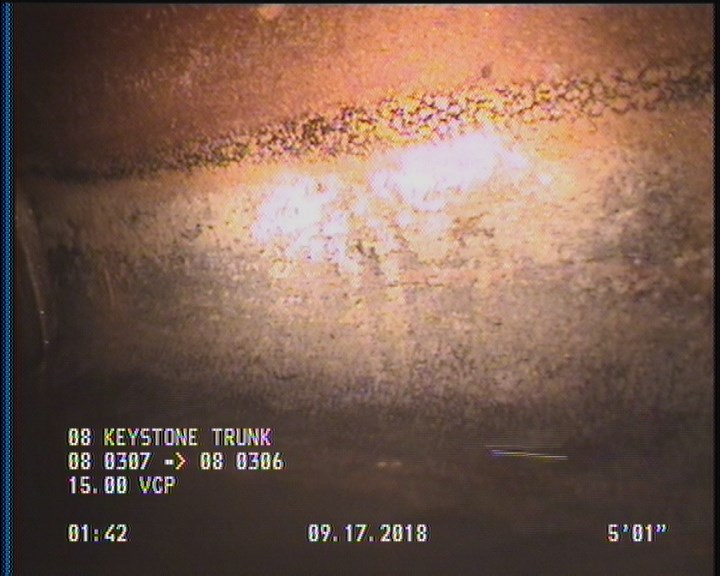

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

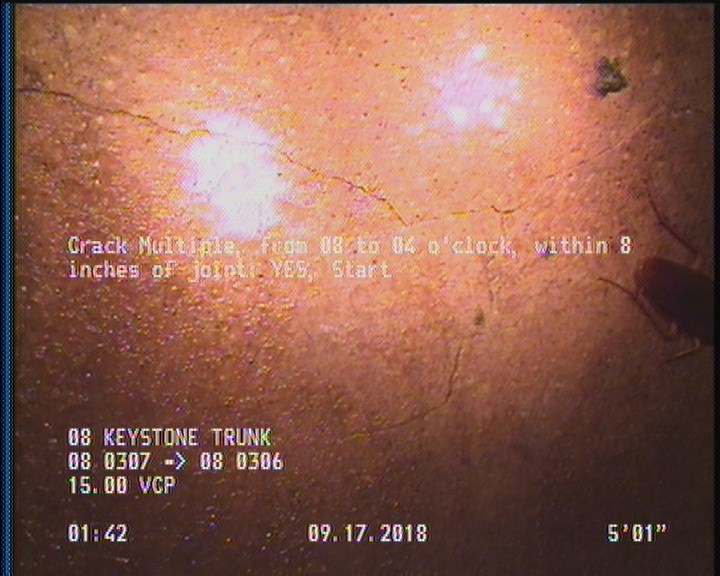

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

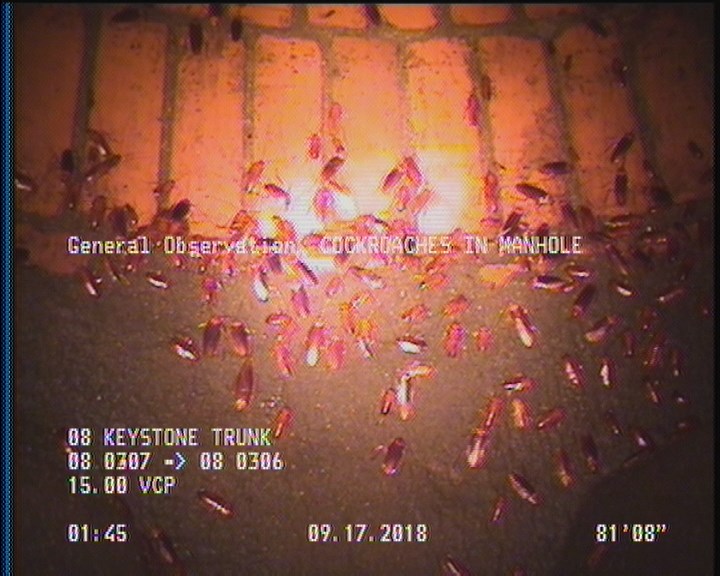

  • General Observation - COCKROACHES IN MANHOLE

    81.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00353Work order 723814

Observations (12)

DistanceCodeObservation
0MWM—
81.7MGOACTIVE CONNECTION A MH 3 O'CLOCK
0AMH08 0307
81.7MGOCOCKROACHES IN MANHOLE
2DAGS—
5.1CM—
78.7DAGS—
20.6TFC—
0MGOCOCKROACHES IN MANHOLE
78.6CM—
0MWL—
81.7AMH08 0306

Properties (6)

additional_info
SC364791
custom_field_two
2
customer
LACSD
datetime
2018-09-17T01:40:24-07:00
documentation
PRO PIPE
is_lateral_inspection
false
