Wastewater/Activity/PacpInspection/1.0Aug 29, 2018, 06:43 AM
21 0879_21 0878_28082018_234344.mp4
- Date
- 08/28/2018
- W/O
- 723783
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00775
- PipeID
- P15967
- Time
- 11:43 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5987
- Sewer Name
- 21 LA VERNE-"B" STREET TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_723783_TV21054_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0879
- Downstream MH
- 21 0878
- Dir. of Survey
- Downstream
- Length Surveyed
- 307.1 ft.
- Total Length
- 307.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

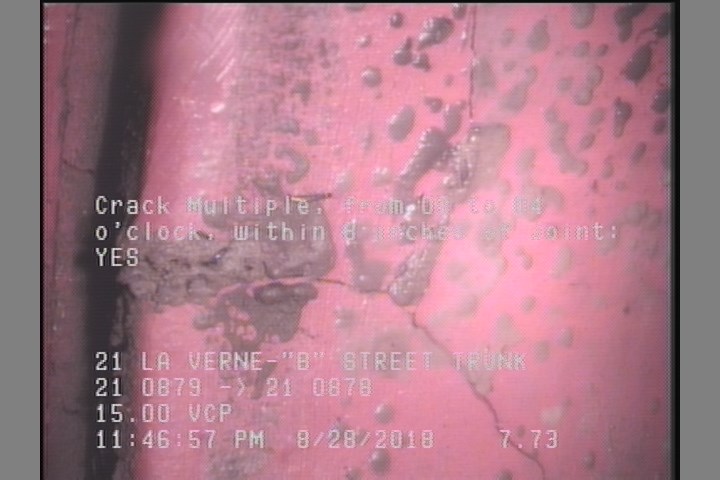

7.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

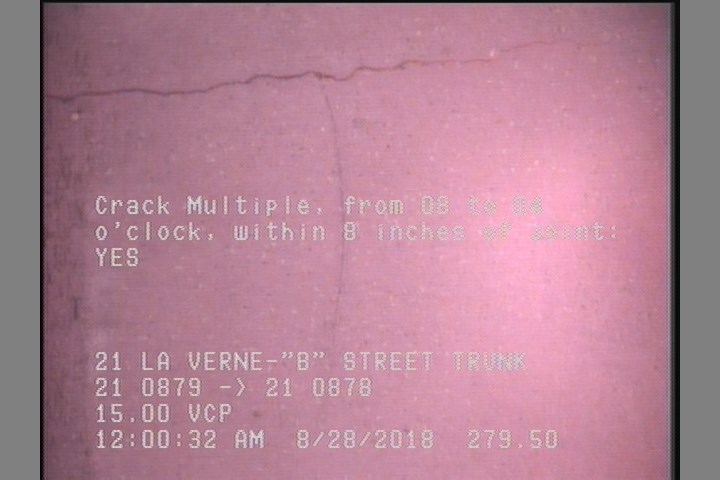

279.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 21 0879 |
| 0 | MWM | — |
| 279.5 | CM | — |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 307.1 | AMH | 21 0878 |
| 7.7 | CM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (6)
- additional_info
- SC364801
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-28T23:43:35-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
