Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2018, 07:37 AM

  • 21 0877_21 0876_29082018_003857.mp4

Date
08/29/2018
W/O
723783
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00775
PipeID
P15965
Time
12:37 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5987
Sewer Name
21 LA VERNE-"B" STREET TRUNK
City
LA VERNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
05
Purpose
Routine Assessment
Project
WO_723783_TV21054_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
21 0877
Downstream MH
21 0876
Dir. of Survey
Downstream
Length Surveyed
193.3 ft.
Total Length
193.3 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 21 0877 to 21 0876
MH: 21 0877MH: 21 0876downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 21 08770 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH61 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"81.6 ft. CM - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES126.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"131.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"135.6 ft. CM - Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES166 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES173.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"177.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"193.3 ft. AMH - Downstream Manhole, Survey Ends - 21 0876193.3 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH

Observation photos (3)

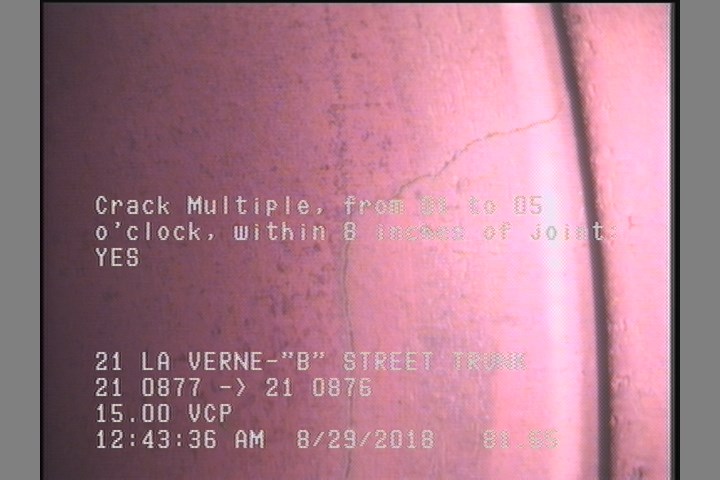

  • Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

    81.6 ft. - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

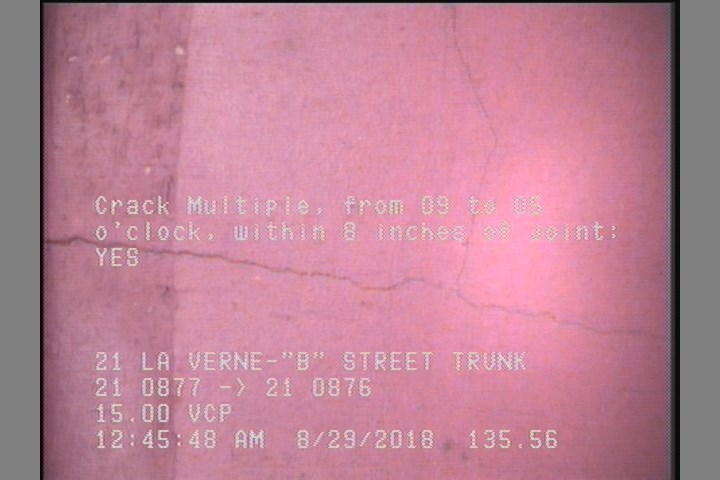

  • Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES

    135.6 ft. - Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES

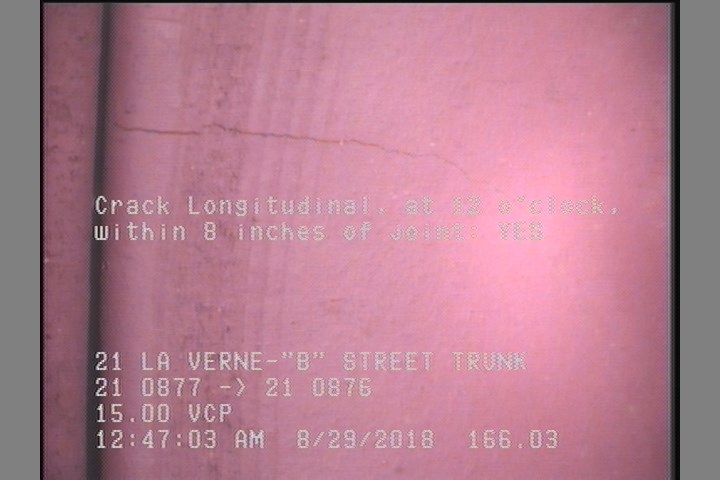

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    166 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P15965Work order 723783

Observations (14)

DistanceCodeObservation
0MWM—
166CL—
0MWL—
193.3AMH21 0876
135.6CM—
61TFC—
177.9TFC—
0AMH21 0877
131.5TFC—
173.1TFC—
193.3MGOCAPPED LATERAL 3 O'CLOCK @ MH
81.6CM—
126.8TF—
0MGOCAPPED LATERAL 3 O'CLOCK @ MH

Properties (6)

additional_info
SC364801
custom_field_two
3
customer
LACSD
datetime
2018-08-29T00:37:20-07:00
documentation
PROPIPE
is_lateral_inspection
false
