Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 18, 2018, 11:53 AM

  • 02 2446_02 2445_10182018_045741.mp4

Date
10/18/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00310
PipeID
P26506
Time
4:53 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1018
Sewer Name
02 UNION STREET TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
21
Purpose
Routine Assessment
Project
20181018MDM_UNION_STREET_TRUNK
Material
FRPP
Shape
Circular
Height
18 in.
Upstream MH
02 2446
Downstream MH
02 2445
Dir. of Survey
Downstream
Length Surveyed
619.4 ft.
Total Length
619.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 2446 to 02 2445
MH: 02 2446MH: 02 2445downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM0 ft. MWL - Water Level, 5 %of cross sectional area24.7 ft. MGO - General Observation - 18" FRPP141.8 ft. MGP - General Photograph330.5 ft. MGO - General Observation - 18" FRPP367.4 ft. MWM - Water Mark, 20 %of cross sectional area619.4 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (3)

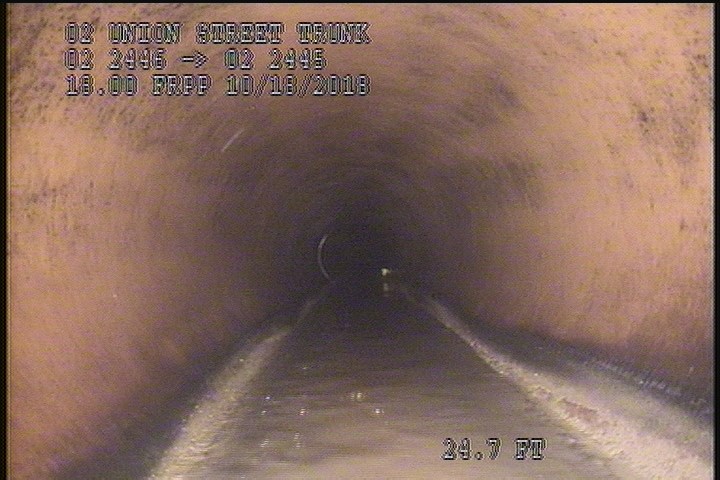

  • General Observation - 18" FRPP

    24.7 ft. - General Observation - 18" FRPP

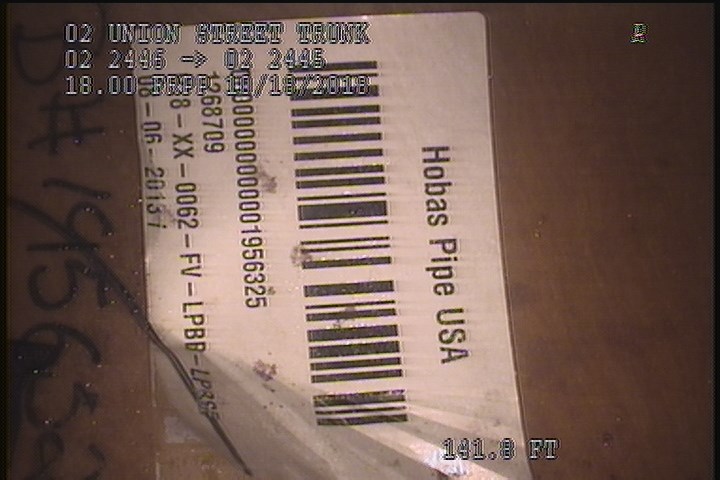

  • General Photograph

    141.8 ft. - General Photograph

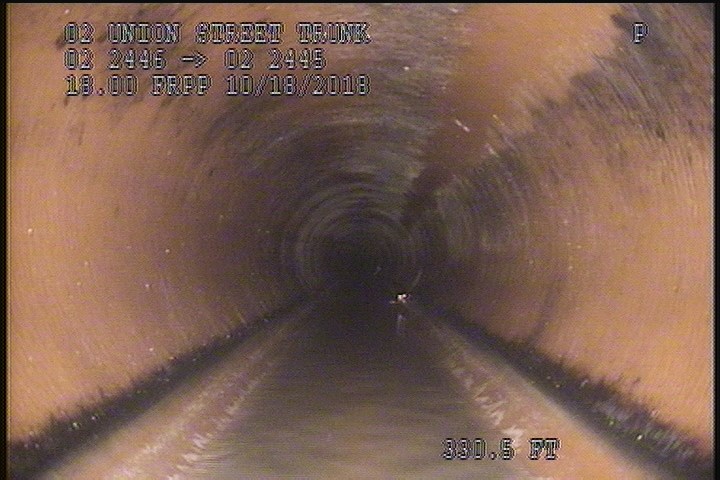

  • General Observation - 18" FRPP

    330.5 ft. - General Observation - 18" FRPP

All inspections of P26506Work order #

Observations (8)

DistanceCodeObservation
0MWM—
141.8MGP—
367.4MWM—
24.7MGO18" FRPP
0AMH4:55AM
330.5MGO18" FRPP
619.4AMH5:25AM
0MWL—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-10-18T04:53:24-07:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
