Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 07:24 AM

  • 19 0255_19 0254_10162018_003319.mp4

Date
10/16/2018
W/O
0734326
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00728
PipeID
P15225
Time
12:24 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1014
Sewer Name
19 STUDEBAKER ROAD TRUNK
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20181016MDM_STUDEBAKER_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
19 0255
Downstream MH
19 0254
Dir. of Survey
Downstream
Length Surveyed
86.8 ft.
Total Length
86.8 ft.
Structural Index
2
Structural Quick
5131
Structural Rating
28
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole 19 0255 to 19 0254
MH: 19 0255MH: 19 0254downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:30AM2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT8 ft. MGO - General Observation - 15" VCP8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start29.2 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE39.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H40.3 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H41.7 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H45.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - H48.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: NO - H76.2 ft. B - Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-SLIGHT FRACTURE76.2 ft. FC - Fracture Circumferential, from 07 to 11 o'clock, within 8 inches of joint: YES - SLIGHT76.2 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL81.4 ft. FC - Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES - SL86.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish86.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active86.8 ft. AMH - Downstream Manhole, Survey Ends - 12:50AM

Observation photos (3)

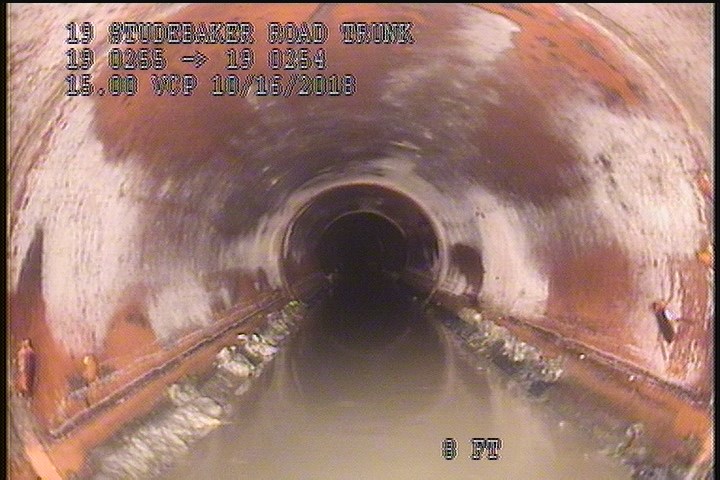

  • General Observation - 15" VCP

    8 ft. - General Observation - 15" VCP

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - H

    45.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - H

  • Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-SLIGHT FRACTURE

    76.2 ft. - Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-SLIGHT FRACTURE

All inspections of P15225Work order 0734326

Observations (20)

DistanceCodeObservation
0MWL—
29.2FCHAIRLINE
76.2BINDENTED-SLIGHT FRACTURE
45.8FLH
8MGO15" VCP
0MWM—
39.7FCH
2FCSLIGHT
0AMH12:30AM
86.8AMH12:50AM
76.2FCSLIGHT
48.2FCH
81.4FCSL
86.5DAGS—
41.7FCH
76.2FCSL
86.5MGOConn. @ Mh, 9 O' Clock. Active
8DAGS—
40.3FCH
2FCSLIGHT

Properties (6)

custom_field_three
BROKEN PIPE-SLIGHT FRACTURE
custom_field_two
2
customer
LACSD
datetime
2018-10-16T00:24:21-07:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
