Wastewater/Activity/PacpInspection/1.0Mar 23, 2018, 08:31 AM
20 0069_20 0068_23032018_014624.mp4
- Date
- 03/23/2018
- W/O
- 690552
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18990
- Time
- 1:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5497
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_690552_TV20023_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 20 0069
- Downstream MH
- 20 0068
- Dir. of Survey
- Downstream
- Length Surveyed
- 386.9 ft.
- Total Length
- 386.9 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 385
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 140
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 525
Observation photos (4)

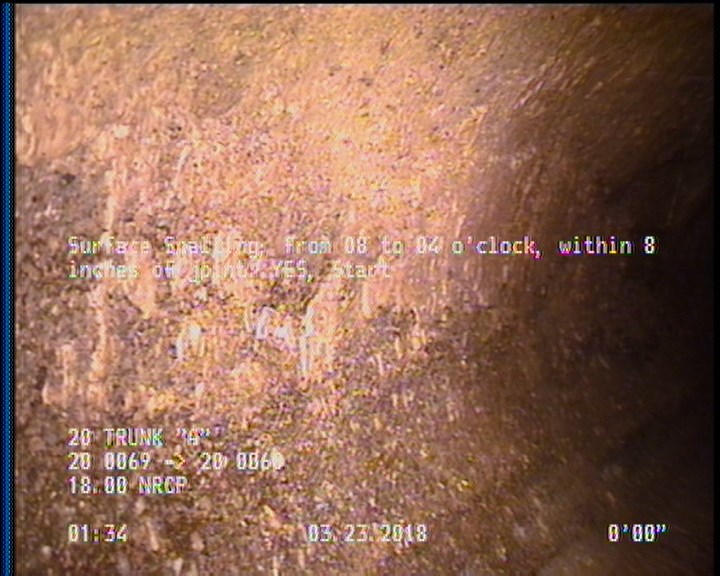

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

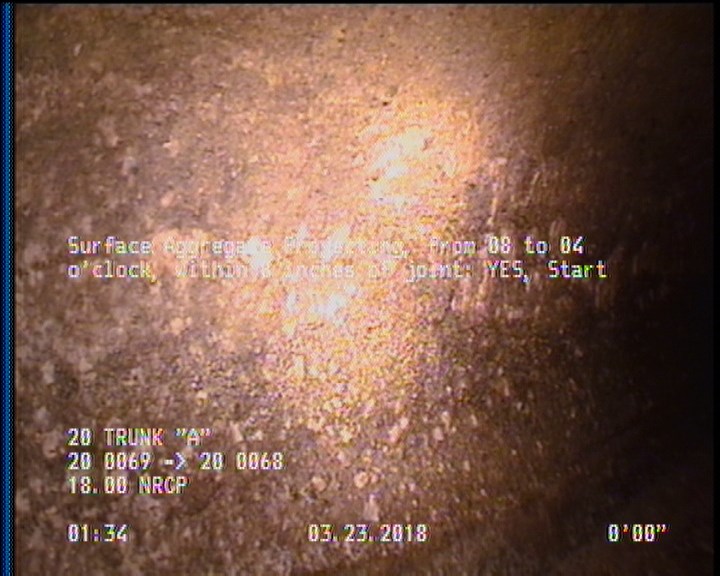

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

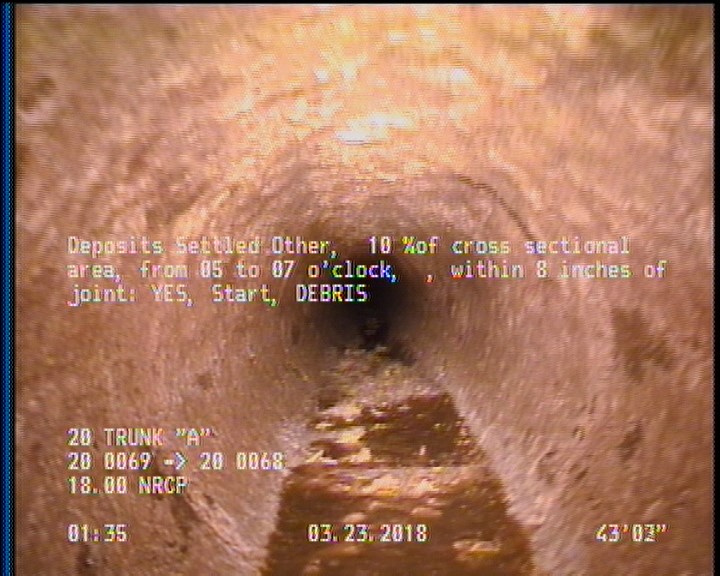

38.9 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

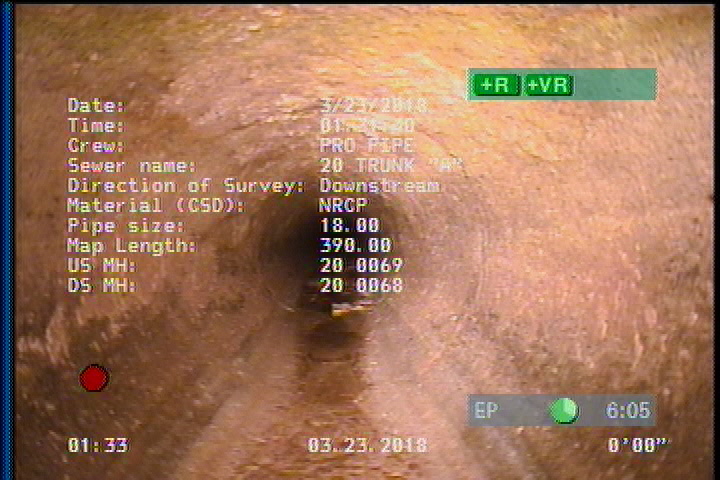

386.9 ft. - Downstream Manhole, Survey Ends - 20 0068
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 198 | TFC | — |
| 298.8 | TFC | — |
| 98 | TFC | — |
| 0 | MWL | — |
| 0 | AMH | 20 0069 |
| 38.9 | DSZ | DEBRIS |
| 47.4 | TFC | — |
| 386.9 | AMH | 20 0068 |
| 2 | SSS | — |
| 386.9 | SSS | — |
| 386.9 | SAP | — |
| 98 | MGO | MAG COATING THROUGHOUT 80% |
| 2 | SAP | — |
| 386.9 | DSZ | — |
| 246.3 | TFC | — |
| 347.2 | TFC | — |
| 148.7 | TFC | — |
Properties (6)
- additional_info
- SC358505
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-23T01:31:40-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
