Wastewater/Activity/PacpInspection/1.0Mar 23, 2018, 09:05 AM
20 0070_20 0069_23032018_022042.mp4
- Date
- 03/23/2018
- W/O
- 690552
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18991
- Time
- 2:05 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5497
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_690552_TV20023_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 20 0070
- Downstream MH
- 20 0069
- Dir. of Survey
- Downstream
- Length Surveyed
- 170.1 ft.
- Total Length
- 170.1 ft.
- Structural Index
- 3
- Structural Quick
- 3F2F
- Structural Rating
- 170
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 36
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 206
Observation photos (4)

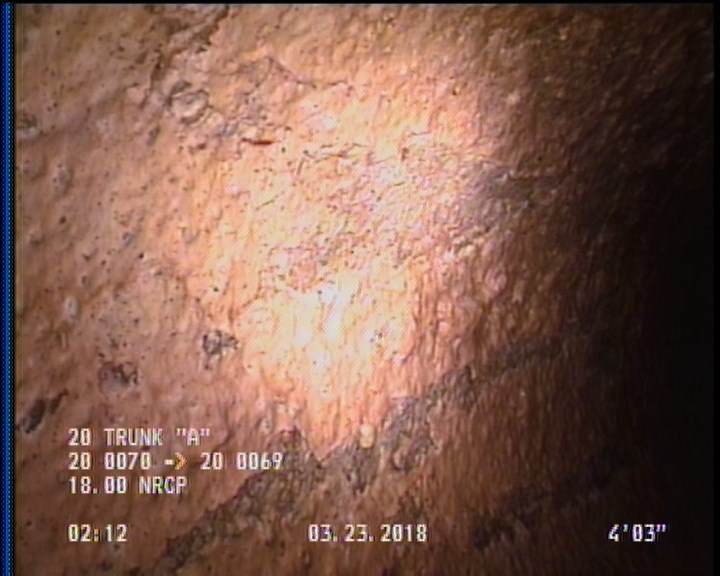

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

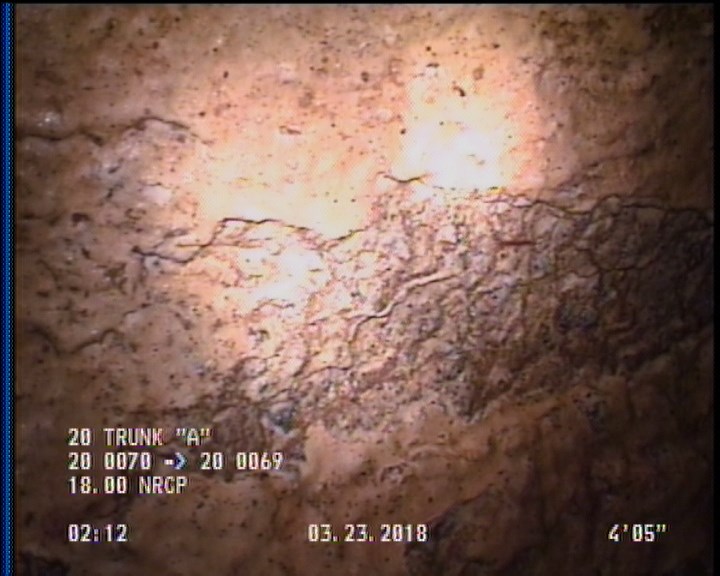

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

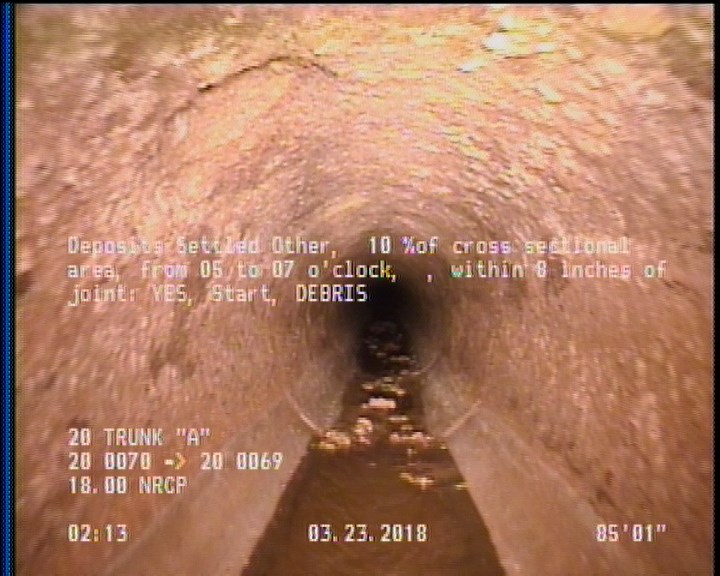

79.6 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

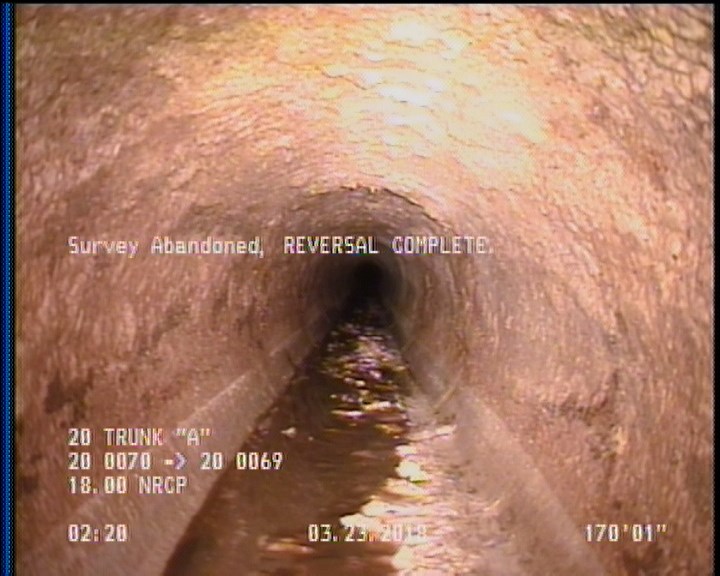

170.1 ft. - Survey Abandoned - REVERSAL COMPLETE.
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 170.1 | DSZ | — |
| 35.3 | TFC | — |
| 89.2 | TFC | — |
| 0 | MWL | — |
| 79.6 | DSZ | DEBRIS |
| 4.4 | MGO | MAG COATING THROUGHOUT 60% |
| 0 | AMH | 20 0070 |
| 2 | SAP | — |
| 170.1 | MSA | REVERSAL COMPLETE. |
| 136.1 | TFC | — |
| 170.1 | SAP | — |
| 170.1 | SSS | — |
Properties (6)
- additional_info
- SC358505
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-23T02:05:13-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
