Wastewater/Activity/PacpInspection/1.0Mar 23, 2018, 09:21 AM
20 0071_20 0070_23032018_024022.mp4
- Date
- 03/23/2018
- W/O
- 690552
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18992
- Time
- 2:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5497
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_690552_TV20023_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 20 0070
- Downstream MH
- 20 0071
- Dir. of Survey
- Upstream
- Length Surveyed
- 251 ft.
- Total Length
- 251 ft.
- Structural Index
- 3
- Structural Quick
- 3I00
- Structural Rating
- 150
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 22
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 172
Observation photos (3)

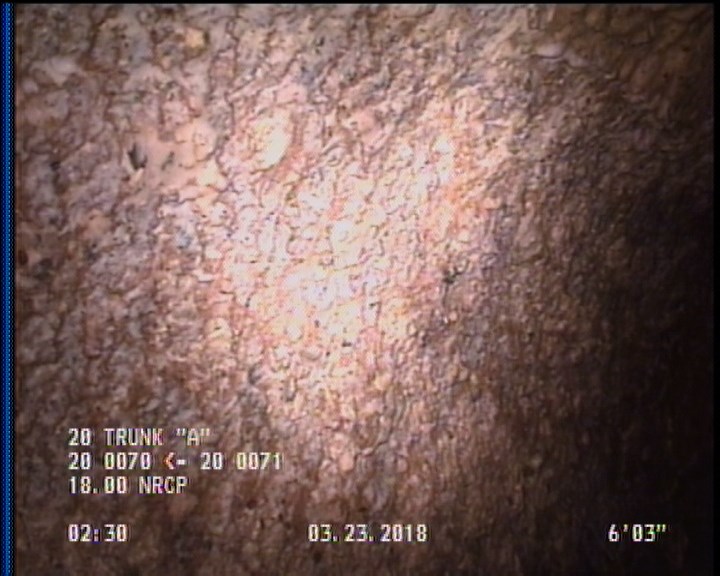

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
196.3 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

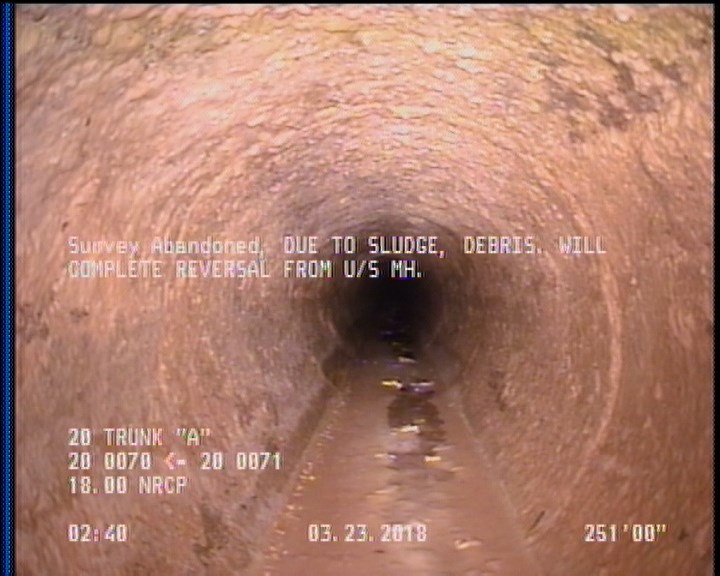

251 ft. - Survey Abandoned - DUE TO SLUDGE, DEBRIS. WILL COMPLETE REVERSAL FROM U/S MH.
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 216.3 | TFC | — |
| 0 | AMH | 20 0070 |
| 251 | SAP | — |
| 65.7 | TFC | — |
| 196.3 | DSZ | DEBRIS |
| 0 | MWL | — |
| 166.8 | TFC | — |
| 251 | MSA | DUE TO SLUDGE, DEBRIS. WILL COMPLETE REVERSAL FROM U/S MH. |
| 2 | SAP | — |
| 251 | DSZ | — |
| 0 | MGO | MAG COATING THROUGHOUT 50% |
| 114.3 | TFC | — |
Properties (6)
- additional_info
- SC358505
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-23T02:21:51-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
