Wastewater/Activity/PacpInspection/1.0Mar 19, 2018, 11:21 AM
20 0073_20 0072_19032018_044548.mp4
- Date
- 03/19/2018
- W/O
- 690552
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18994
- Time
- 4:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5490
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_690552_TV20023_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 20 0073
- Downstream MH
- 20 0072
- Dir. of Survey
- Downstream
- Length Surveyed
- 208.9 ft.
- Total Length
- 208.9 ft.
- Structural Index
- 3
- Structural Quick
- 3G2G
- Structural Rating
- 205
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 205
Observation photos (3)

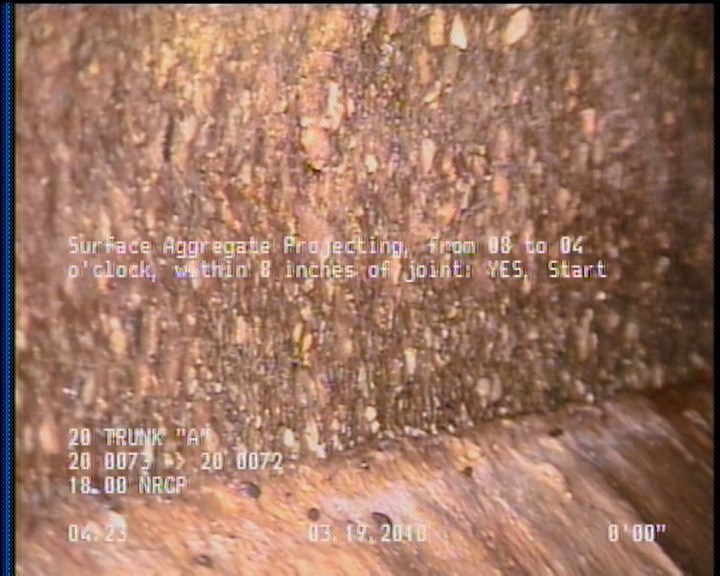

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

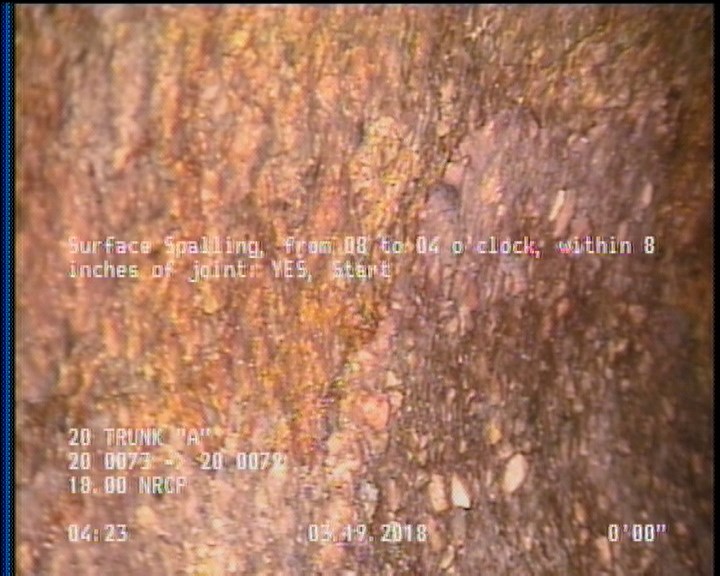

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

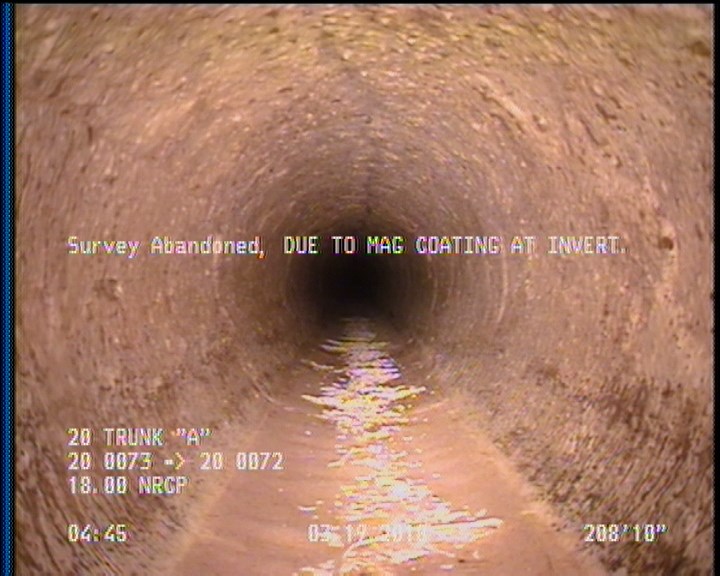

208.9 ft. - Survey Abandoned - DUE TO MAG COATING AT INVERT.
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 208.9 | MSA | DUE TO MAG COATING AT INVERT. |
| 86.3 | TFC | — |
| 2 | SAP | — |
| 208.9 | SSS | — |
| 36.4 | MGO | 50 % MAG COATING |
| 186.3 | TFC | — |
| 137.9 | TFC | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 0 | AMH | 20 0073 |
| 208.9 | SAP | — |
Properties (6)
- additional_info
- SC358498
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-19T04:21:28-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
