Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 20, 2018, 08:57 AM

  • 20 0227_20 0226_20032018_022506.mp4

Date
03/20/2018
W/O
690551
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00735
PipeID
P19194
Time
1:57 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5491
Sewer Name
20 AVENUE "Q" TRUNK
City
PALMDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_690551_TV20019_MAR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
20 0226
Downstream MH
20 0227
Dir. of Survey
Upstream
Length Surveyed
321.1 ft.
Total Length
321.1 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
192
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
193
Pipe schematic from manhole 20 0226 to 20 0227
MH: 20 0226MH: 20 0227upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 20 02271.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish8.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"11.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"51.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"54.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"100.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"103 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"111.5 ft. RFJ - Roots Fine Joint, from 01 to 02 o'clock, within 8 inches of joint: YESR148.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"151.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"194.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"197.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"252.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"255.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"292.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"294.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"319.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start321.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK321.1 ft. MWL - Water Level, 25 %of cross sectional area321.1 ft. AMH - Downstream Manhole, Survey Begins - 20 0226

Observation photos (2)

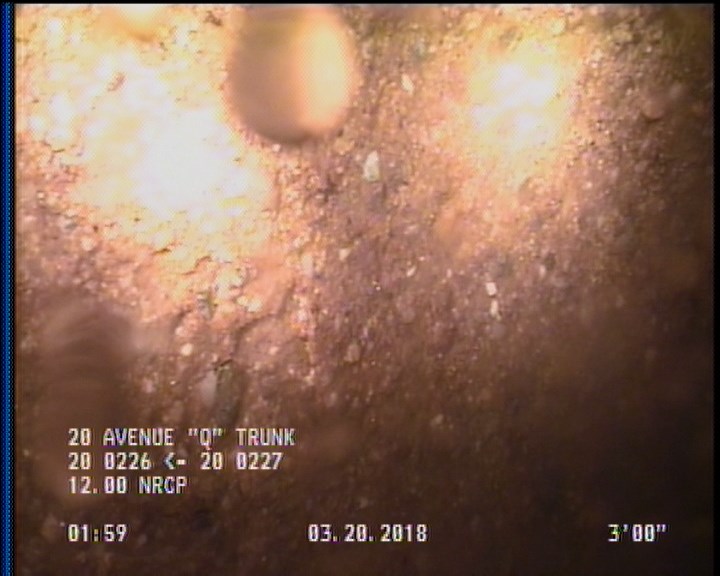

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

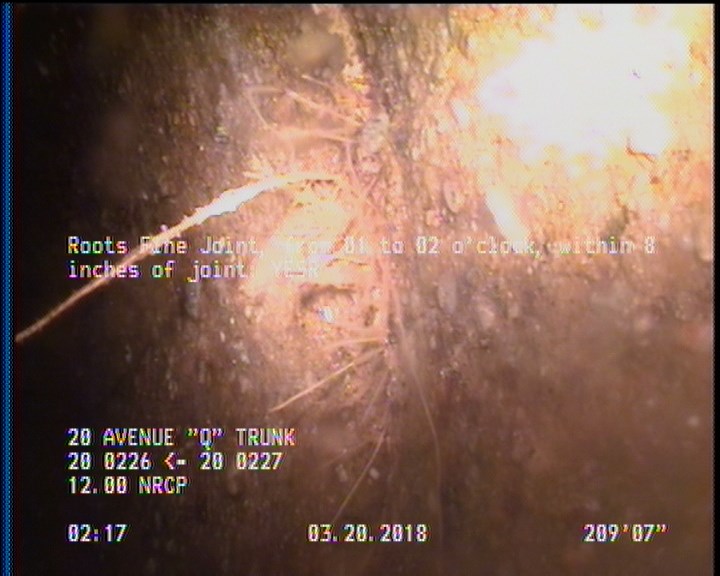

  • Roots Fine Joint, from 01 to 02 o'clock, within 8 inches of joint: YESR

    209.6 ft. - Roots Fine Joint, from 01 to 02 o'clock, within 8 inches of joint: YESR

All inspections of P19194Work order 690551

Observations (22)

DistanceCodeObservation
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
312.5TFC—
266.8TFC—
26.2TFC—
209.6RFJ—
172.3TF—
68.5TFC—
321.1MGOACTIVE CONNECTION AT MH 9 O'CLOCK
218.1TFC—
321.1AMH20 0227
0MWL—
220.9TFC—
126.7TFA—
309.7TFC—
65.6TFC—
0AMH20 0226
29TFC—
123.5TFC—
2SAP—
269.7TFC—
319.9SAP—
169.2TFC—

Properties (6)

additional_info
SC358499
custom_field_two
2
customer
LACSD
datetime
2018-03-20T01:57:19-07:00
documentation
PRO PIPE
is_lateral_inspection
false
