Wastewater/Activity/PacpInspection/1.0Mar 20, 2018, 10:26 AM
20 0218_20 0217_20032018_034730.mp4
- Date
- 03/20/2018
- W/O
- 690551
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00735
- PipeID
- P19185
- Time
- 3:26 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5491
- Sewer Name
- 20 AVENUE "Q" TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_690551_TV20019_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0218
- Downstream MH
- 20 0217
- Dir. of Survey
- Downstream
- Length Surveyed
- 320.2 ft.
- Total Length
- 320.2 ft.
- Structural Index
- 3
- Structural Quick
- 3L2J
- Structural Rating
- 306
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 308
Observation photos (3)

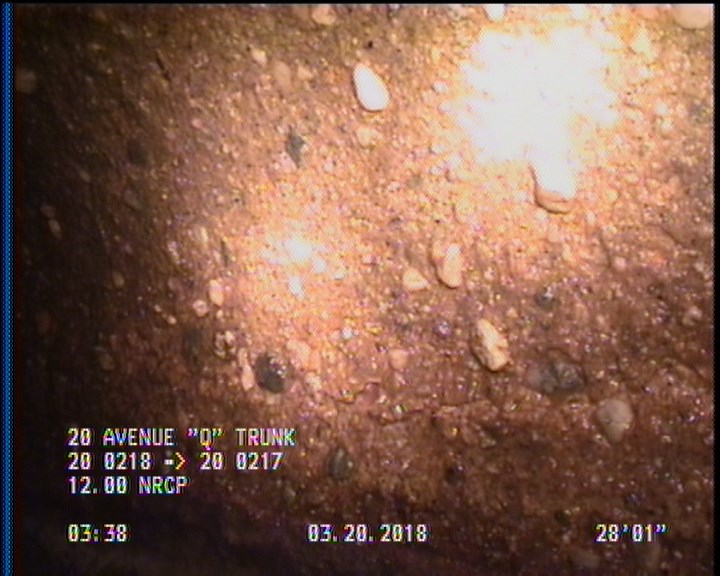

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

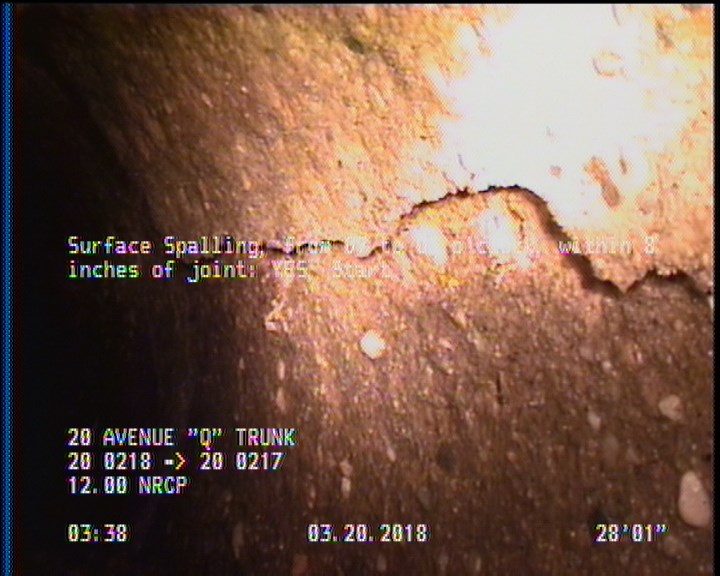

28 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

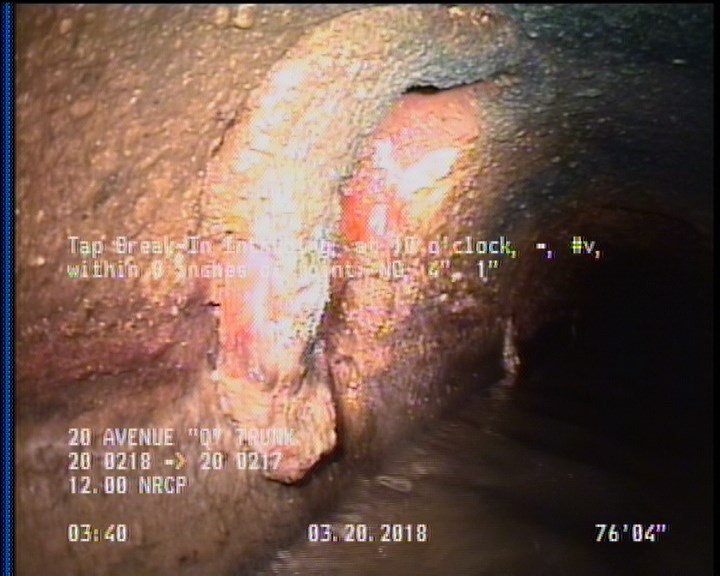

76.3 ft. - Tap Break-In Intruding, at 10 o'clock, -, #v, within 8 inches of joint: NO, 4", 1"
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 76.3 | TBI | — |
| 273.1 | TFC | — |
| 0 | AMH | 20 0218 |
| 73.6 | TFC | — |
| 320.2 | AMH | 20 0217 |
| 227.5 | TFC | — |
| 28 | SSS | — |
| 320.2 | SAP | — |
| 172 | TFC | — |
| 224.2 | TFC | — |
| 125.7 | TFC | — |
| 276.6 | TFC | — |
| 2 | SAP | — |
| 315.1 | SSS | — |
| 0 | MWL | — |
| 129.2 | TFC | — |
| 0 | MWM | — |
| 175.1 | TFC | — |
Properties (6)
- additional_info
- SC358499
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-20T03:26:27-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
