Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 26, 2016, 08:39 AM

  • 02 2046_02 2081_20161026_005029.mp4

Date
10/26/2016
W/O
592156
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00241
PipeID
P04291
Time
1:39 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3748
Sewer Name
02 CITY TERRACE TRUNK
City
LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
07A
Purpose
Routine Assessment
Project
WO_592156_TV02040_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
02 2046
Downstream MH
02 2081
Dir. of Survey
Downstream
Length Surveyed
241.9 ft.
Total Length
242 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2I00
O&M Rating
98
Overall Index
2
Overall Quick
—
Overall Rating
100
Pipe schematic from manhole 02 2046 to 02 2081
MH: 02 2046MH: 02 2081downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 20460 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start54.1 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"76.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4"76.6 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES122.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"172.2 ft. TBI - Tap Break-In Intruding, at 10 o'clock, -, -, within 8 inches of joint: NO, 4", 1"240.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish242 ft. AMH - Downstream Manhole, Survey Ends - 02 2081242 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (4)

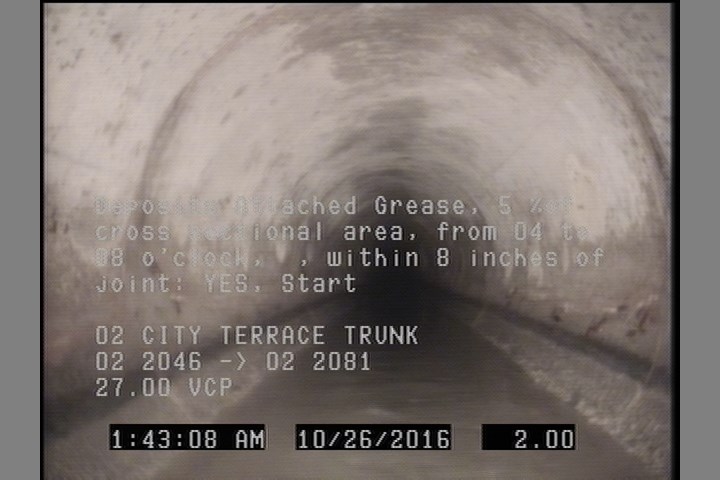

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

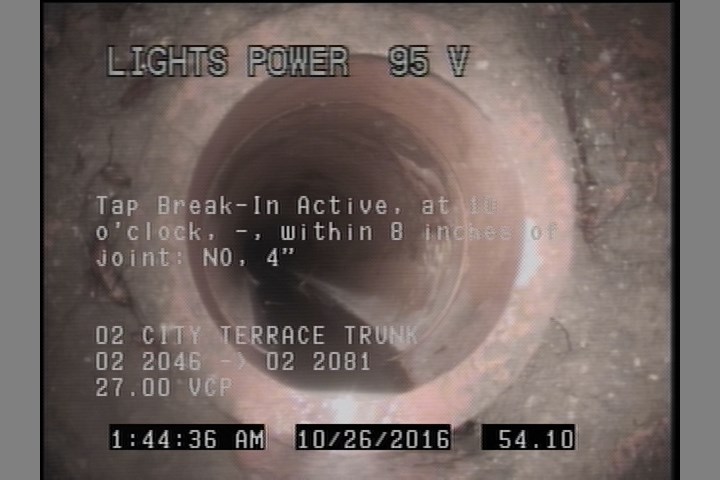

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"

    54.1 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"

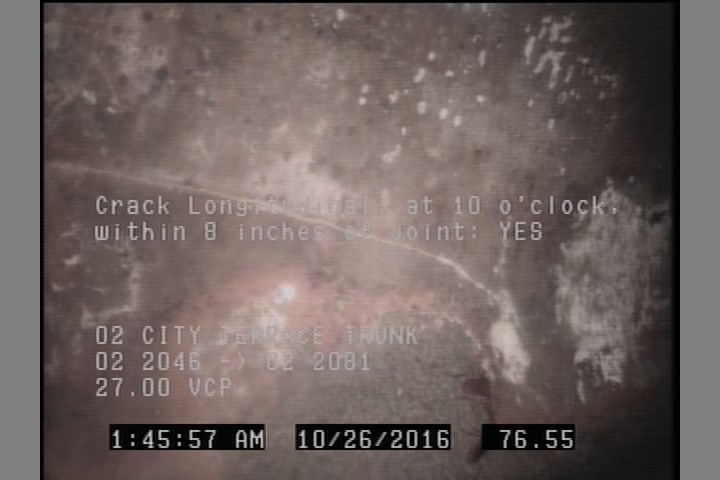

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    76.6 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

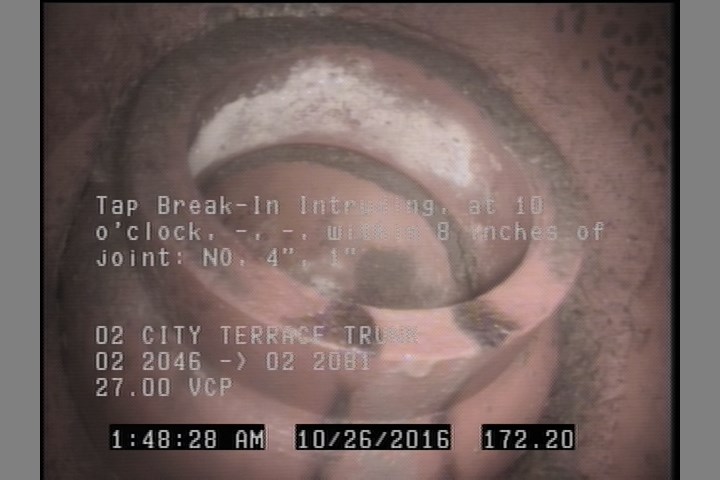

  • Tap Break-In Intruding, at 10 o'clock, -, -, within 8 inches of joint: NO, 4", 1"

    172.2 ft. - Tap Break-In Intruding, at 10 o'clock, -, -, within 8 inches of joint: NO, 4", 1"

All inspections of P04291Work order 592156

Observations (12)

DistanceCodeObservation
76.6CL—
242AMH02 2081
54.1TBA—
122.8TBA—
0AMH02 2046
0MWM—
242MGOCONNECTION AT MH 3 O'CLOCK
172.2TBI—
240.4DAGS—
0MWL—
76.5TB—
2DAGS—

Properties (7)

additional_info
SC303739
custom_field_two
4
customer
LACSD
datetime
2016-10-26T01:39:56-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
year_laid
27724
