Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 13, 2016, 09:58 AM

  • 03 0371_03 0370_20160513_030423.mp4

Date
05/13/2016
W/O
557879
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00381
PipeID
P04943
Time
2:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3376
Sewer Name
03 MARINA RELIEF TRUNK, SECTION 1B
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Routine Assessment
Project
WO_557879_TV03013_MARCH2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
24 in.
Upstream MH
03 0371
Downstream MH
03 0370
Dir. of Survey
Downstream
Length Surveyed
198.6 ft.
Total Length
198.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 03 0371 to 03 0370
MH: 03 0371MH: 03 0370downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 03710 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK5.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start93.7 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES195.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish198.6 ft. AMH - Downstream Manhole, Survey Ends - 03 0370

Observation photos (2)

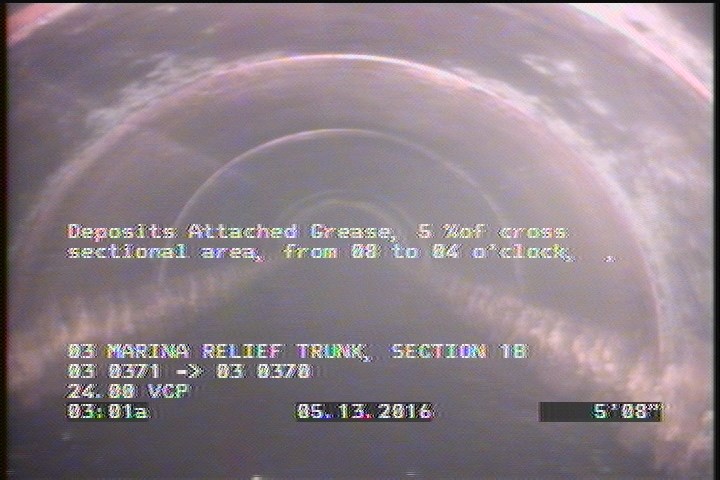

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    5.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

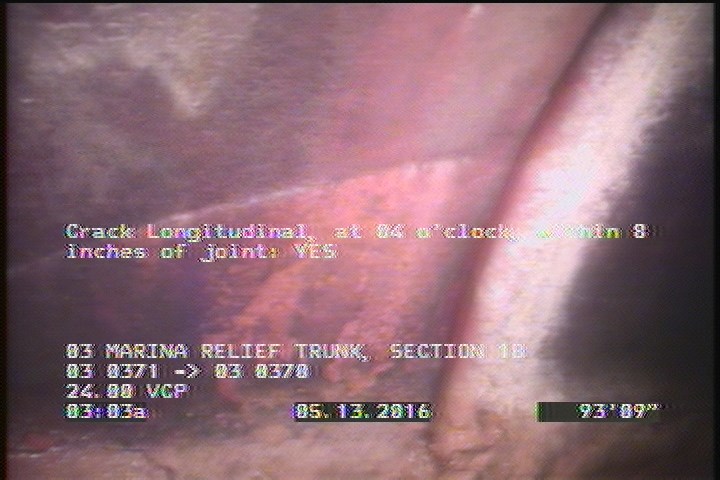

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    93.7 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

All inspections of P04943Work order 557879

Observations (8)

DistanceCodeObservation
5.5DAGS—
195.7DAGS—
0MWM—
0MWL—
93.7CL—
0AMH03 0371
0MGOCONNECTION AT MH 3 O'CLOCK
198.6AMH03 0370

Properties (6)

additional_info
SC300375
custom_field_two
4
customer
LACSD
datetime
2016-05-13T02:58:30-07:00
documentation
PROPIPE
is_lateral_inspection
false
