Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 13, 2016, 08:31 AM

  • 03 0379_03 0378_20160513_015156.mp4

Date
05/13/2016
W/O
557879
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00381
PipeID
P05170
Time
1:31 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3376
Sewer Name
03 MARINA RELIEF TRUNK, SECTION 1B
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Routine Assessment
Project
WO_557879_TV03013_MARCH2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
27 in.
Upstream MH
03 0379
Downstream MH
03 0378
Dir. of Survey
Downstream
Length Surveyed
511.1 ft.
Total Length
511.1 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 03 0379 to 03 0378
MH: 03 0379MH: 03 0378downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 03 03790 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area4.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start148.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES149.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"152.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"199.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"288.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"297 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"310.3 ft. MGO - General Observation - UNMAPPED MH423.4 ft. MGO - General Observation - UNMAPPED MH505.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES508 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish511.1 ft. AMH - Downstream Manhole, Survey Ends - 03 0378

Observation photos (2)

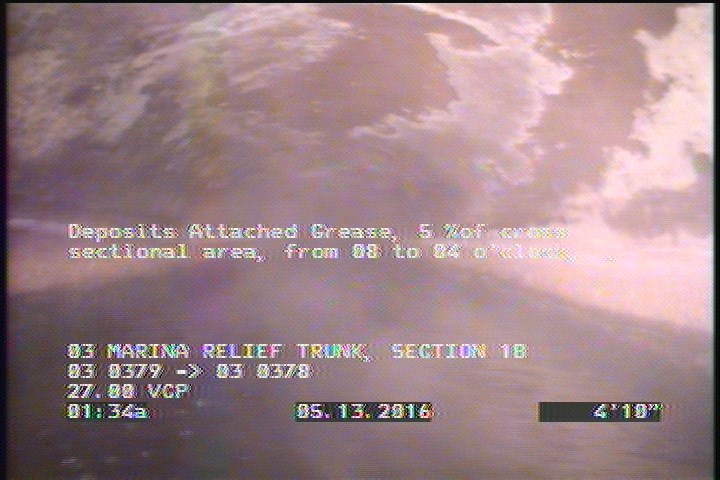

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    4.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

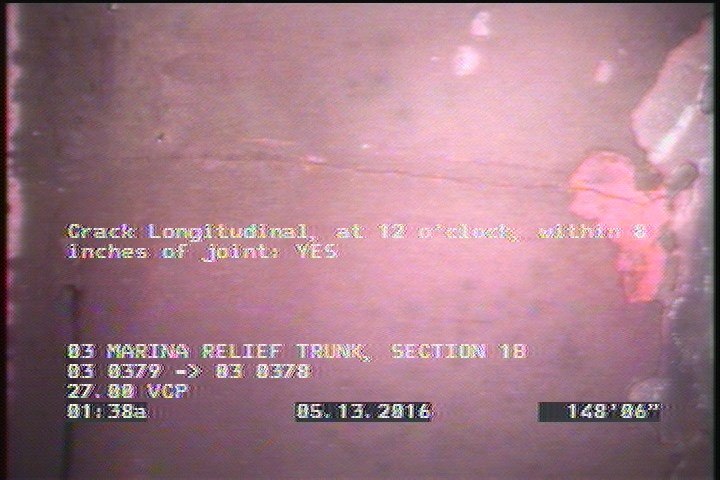

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    148.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P05170Work order 557879

Observations (16)

DistanceCodeObservation
148.5CL—
0MGOCONNECTION AT MH 9 O'CLOCK
511.1AMH03 0378
0AMH03 0379
4.8DAGS—
423.4MGOUNMAPPED MH
508DAGS—
505.6CL—
0MWM—
297TF—
0MWL—
310.3MGOUNMAPPED MH
288.9TF—
149.9TF—
199.2TF—
152.9TF—

Properties (6)

additional_info
SC300375
custom_field_two
4
customer
LACSD
datetime
2016-05-13T01:31:02-07:00
documentation
PROPIPE
is_lateral_inspection
false
