Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 08:16 AM

  • B 0441_B 0440 _07062018_013042.mp4

Date
06/07/2018
W/O
706794
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00093
PipeID
P08953
Time
1:16 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5690
Sewer Name
B JOINT OUTFALL B - UNIT 5C
City
PASADENA
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_706794_TV16033_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
B 0441
Downstream MH
B 0440
Dir. of Survey
Downstream
Length Surveyed
380.1 ft.
Total Length
380.1 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
228
O&M Index
1
O&M Quick
1L00
O&M Rating
67
Overall Index
2
Overall Quick
—
Overall Rating
295
Pipe schematic from manhole B 0441 to B 0440
MH: B 0441MH: B 0440downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 04410 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start32.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES43.6 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YES45.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"56.8 ft. RFJ - Roots Fine Joint, from 12 to 03 o'clock, within 8 inches of joint: YES66.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start247.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"304.9 ft. RFC - Roots Fine Connection, at 10 o'clock304.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"380.1 ft. AMH - Downstream Manhole, Survey Ends - B 0440380.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK380.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish380.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

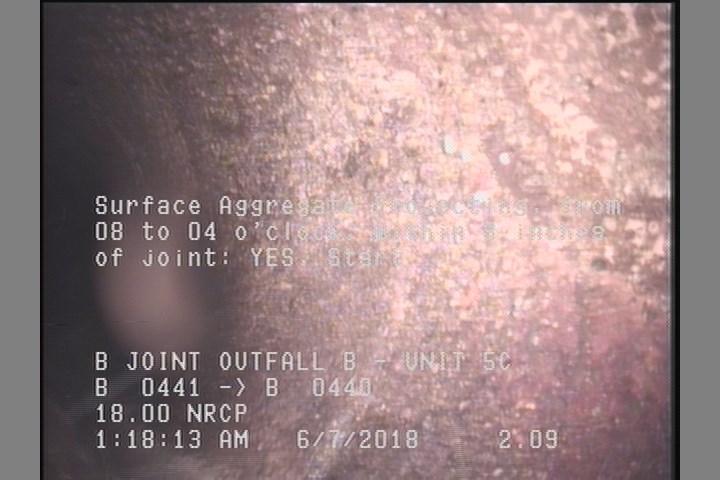

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

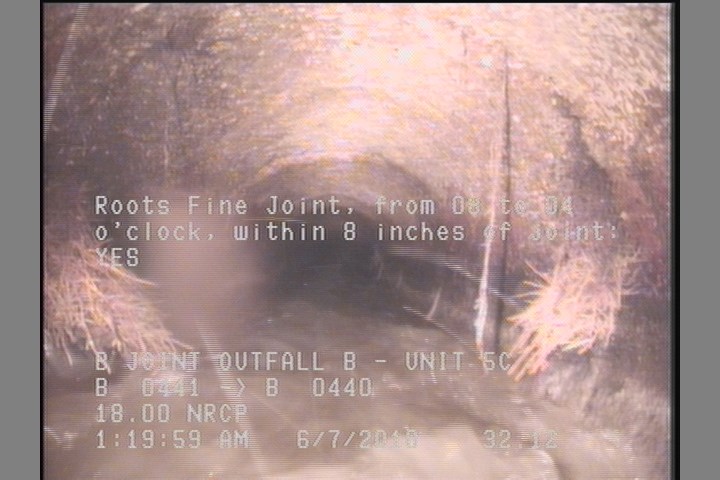

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

    32.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

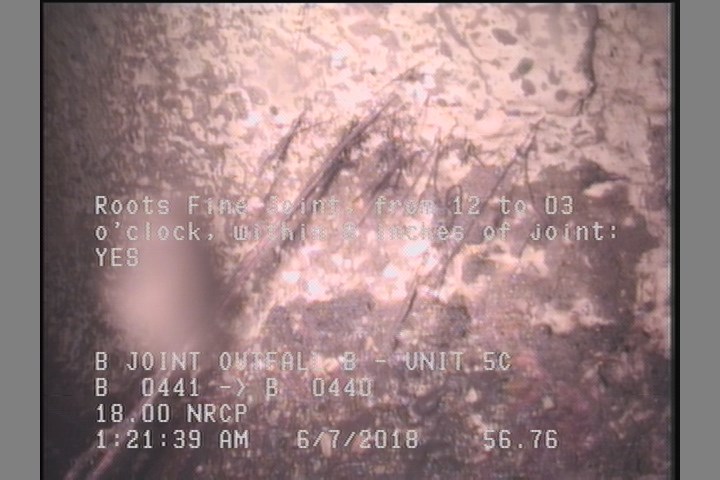

  • Roots Fine Joint, from 12 to 03 o'clock, within 8 inches of joint: YES

    56.8 ft. - Roots Fine Joint, from 12 to 03 o'clock, within 8 inches of joint: YES

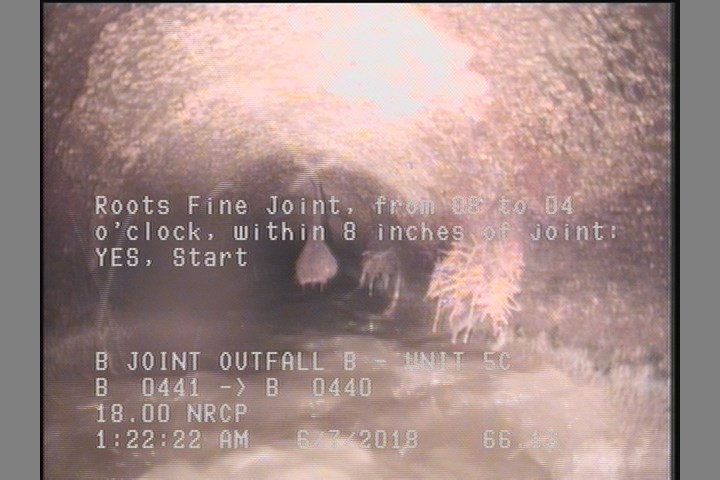

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    66.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P08953Work order 706794

Observations (16)

DistanceCodeObservation
380.1AMHB 0440
0AMHB 0441
380.1MGOCONNECTION AT MH 3 O'CLOCK
43.6RFJ—
32.1RFJ—
247.6TF—
56.8RFJ—
45.6TF—
304.9RFC—
380.1RFJ—
0MWL—
2.1SAP—
66.1RFJ—
304.9TF—
0MWM—
380.1SAP—

Properties (6)

additional_info
SC359349
custom_field_two
3
customer
LACSD
datetime
2018-06-07T01:16:05-07:00
documentation
PROPIPE
is_lateral_inspection
false
