Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 09:32 AM

  • B 0443_B 0442 _07062018_024825.mp4

Date
06/07/2018
W/O
706794
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00093
PipeID
P08955
Time
2:32 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5690
Sewer Name
B JOINT OUTFALL B - UNIT 5C
City
PASADENA
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_706794_TV16033_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
B 0443
Downstream MH
B 0442
Dir. of Survey
Downstream
Length Surveyed
400.5 ft.
Total Length
400.6 ft.
Structural Index
3
Structural Quick
3D21
Structural Rating
78
O&M Index
1
O&M Quick
1K00
O&M Rating
58
Overall Index
2
Overall Quick
—
Overall Rating
136
Pipe schematic from manhole B 0443 to B 0442
MH: B 0443MH: B 0442downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 04433.1 ft. CC - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES3.1 ft. RFJ - Roots Fine Joint, from 10 to 03 o'clock, within 8 inches of joint: YES15.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start71.9 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES105.5 ft. RFJ - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES117.2 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start140.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"151.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES174 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"174 ft. RFC - Roots Fine Connection, at 10 o'clock174.8 ft. CS - Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES278 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES292.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start391.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish391.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish400.5 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH400.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish400.5 ft. AMH - Downstream Manhole, Survey Ends - B 0442400.6 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH

Observation photos (7)

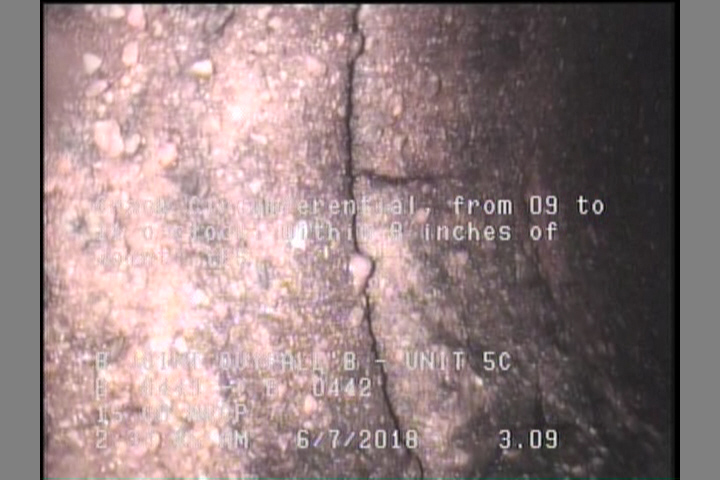

  • Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

    3.1 ft. - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    15.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    117.2 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    151.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

    174.8 ft. - Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    278 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    292.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P08955Work order 706794

Observations (22)

DistanceCodeObservation
140.2TF—
0MWL—
292.4CM—
400.5MGOCAPPED LATERAL 9 O'CLOCK @ MH
0MWM—
174TF—
3.1CC—
117.2RFJ—
174RFC—
0AMHB 0443
391.3RFJ—
400.6MGOCAPPED LATERAL 3 O'CLOCK @ MH
105.5RFJ—
3.1RFJ—
71.9CM—
151.2CM—
400.5SAV—
391.3CM—
15.3SAV—
278CM—
400.5AMHB 0442
174.8CS—

Properties (6)

additional_info
SC359349
custom_field_two
3
customer
LACSD
datetime
2018-06-07T02:32:07-07:00
documentation
PROPIPE
is_lateral_inspection
false
