Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 10:57 AM
B 0452_B 0451 _06062018_040704.mp4
- Date
- 06/06/2018
- W/O
- 706794
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00093
- PipeID
- P08964
- Time
- 3:57 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5689
- Sewer Name
- B JOINT OUTFALL B - UNIT 5C
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_706794_TV16033_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 0452
- Downstream MH
- B 0451
- Dir. of Survey
- Downstream
- Length Surveyed
- 229.4 ft.
- Total Length
- 229.4 ft.
- Structural Index
- 3
- Structural Quick
- 3H00
- Structural Rating
- 135
- O&M Index
- 2
- O&M Quick
- 3211
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 142
Observation photos (2)

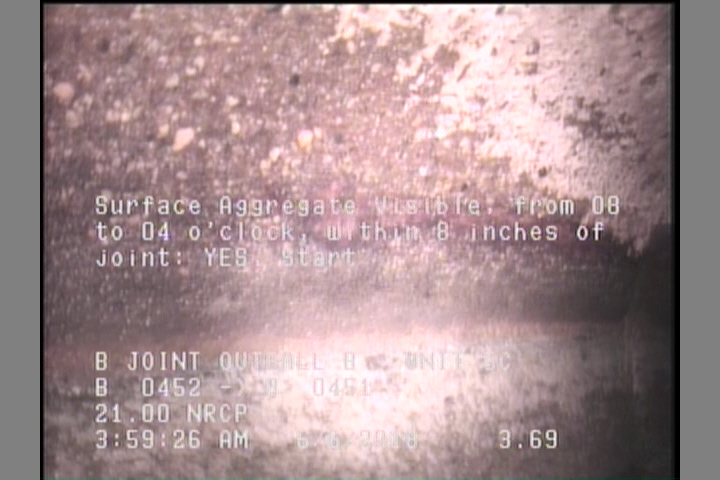

3.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

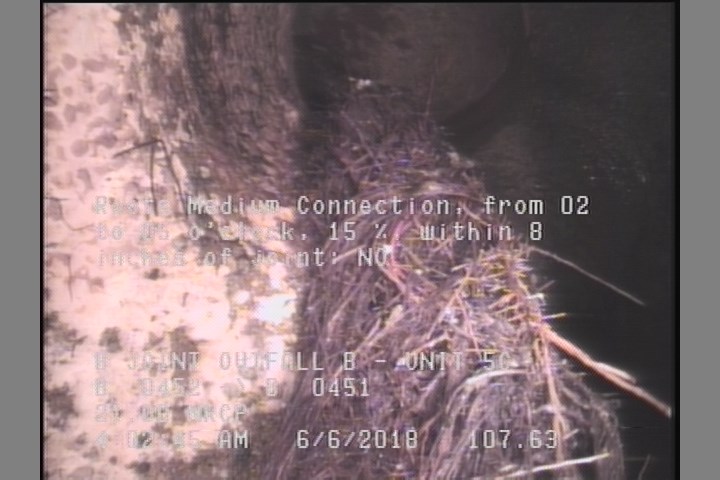

107.6 ft. - Roots Medium Connection, from 02 to 05 o'clock, 15 %, within 8 inches of joint: NO
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 186.2 | TFC | — |
| 229.4 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 2.6 | MGO | MAG COAT |
| 107.6 | RMC | — |
| 3.7 | SAV | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 229.4 | MGO | CONNECTION AT MH 12 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 229.4 | AMH | B 0451 |
| 194 | TF | — |
| 107.6 | RML | — |
| 52.4 | TFC | — |
| 228.7 | SAV | — |
| 50.2 | RFL | — |
| 107.6 | TF | — |
| 111.3 | TFC | — |
| 50.2 | TF | — |
| 0 | AMH | B 0452 |
Properties (6)
- additional_info
- SC359348
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-06T03:57:36-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
