Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 10:43 AM

  • B 0453_B 0452 _06062018_035619.mp4

Date
06/06/2018
W/O
706794
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00093
PipeID
P08965
Time
3:43 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5689
Sewer Name
B JOINT OUTFALL B - UNIT 5C
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_706794_TV16033_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
B 0453
Downstream MH
B 0452
Dir. of Survey
Downstream
Length Surveyed
291.5 ft.
Total Length
291.5 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
174
O&M Index
2
O&M Quick
3211
O&M Rating
7
Overall Index
3
Overall Quick
—
Overall Rating
181
Pipe schematic from manhole B 0453 to B 0452
MH: B 0453MH: B 0452downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 04530 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. MGO - General Observation - MAG COAT2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start87.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"147.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"150.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"216.9 ft. RMC - Roots Medium Connection, at 12 o'clock, 15 %, within 8 inches of joint: NO216.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"216.9 ft. RML - Roots Medium Lateral, at 12 o'clock, 25 %, within 8 inches of joint: NO279.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"279.2 ft. RFL - Roots Fine Lateral, at 02 o'clock281.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"291.5 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK291.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish291.5 ft. AMH - Downstream Manhole, Survey Ends - B 0452

Observation photos (2)

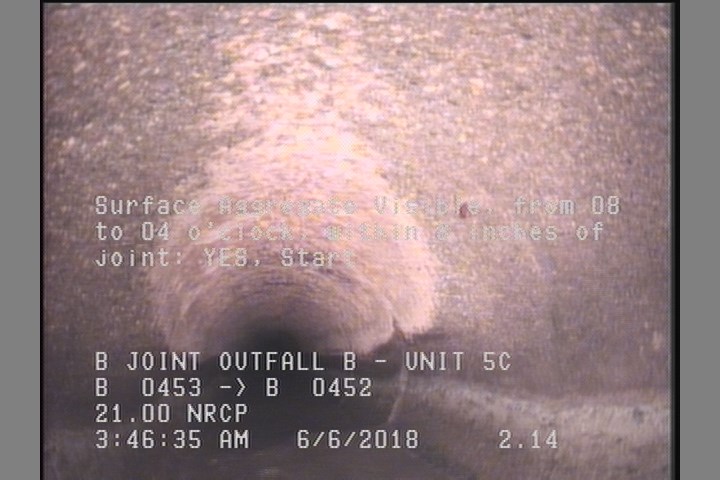

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

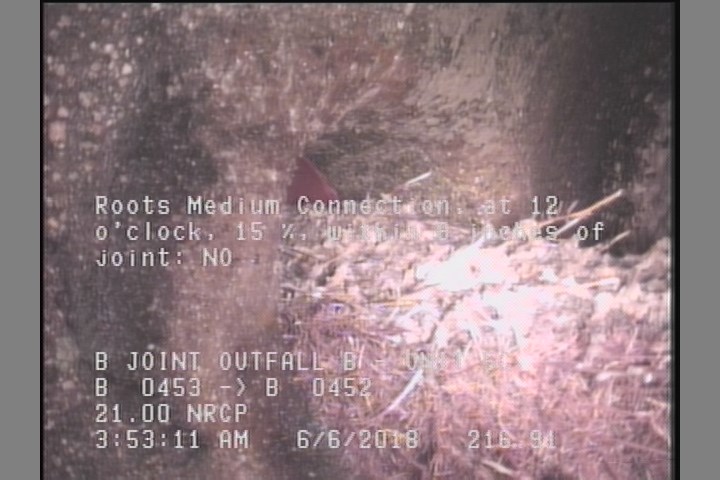

  • Roots Medium Connection, at 12 o'clock, 15 %, within 8 inches of joint: NO

    216.9 ft. - Roots Medium Connection, at 12 o'clock, 15 %, within 8 inches of joint: NO

All inspections of P08965Work order 706794

Observations (19)

DistanceCodeObservation
2.1MGOMAG COAT
150.5TFC—
291.5MGOCONNECTION AT MH 9 O'CLOCK
0AMHB 0453
0MGOCONNECTION AT MH 6 O'CLOCK
291.5SAV—
2.1SAV—
291.5AMHB 0452
0MGOCONNECTION AT MH 9 O'CLOCK
0MWM—
279.2TF—
87.2TF—
279.2RFL—
147.7TF—
0MWL—
216.9RMC—
281.7TFC—
216.9TF—
216.9RML—

Properties (6)

additional_info
SC359348
custom_field_two
3
customer
LACSD
datetime
2018-06-06T03:43:52-07:00
documentation
PROPIPE
is_lateral_inspection
false
