Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 5, 2018, 06:00 AM

  • 22 0670A_22 0670_04062018_231209.mp4

Date
06/04/2018
W/O
701523
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00827
PipeID
P17020
Time
11:00 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5635
Sewer Name
22 SUNFLOWER TRUNK
City
SAN DIMAS, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_701523_TV22166_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0670A
Downstream MH
22 0670
Dir. of Survey
Downstream
Length Surveyed
203.4 ft.
Total Length
203.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 22 0670A to 22 0670
MH: 22 0670AMH: 22 0670downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 0670A2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2.1 ft. MGO - General Observation - MAGNESIUM COATING START28.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"32.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"47.8 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Start98.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"103.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"173.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"179 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"202.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish202.2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Finish202.3 ft. MGO - General Observation - MAGNESIUM COATING END203.4 ft. AMH - Downstream Manhole, Survey Ends - 22 0670

Observation photos (2)

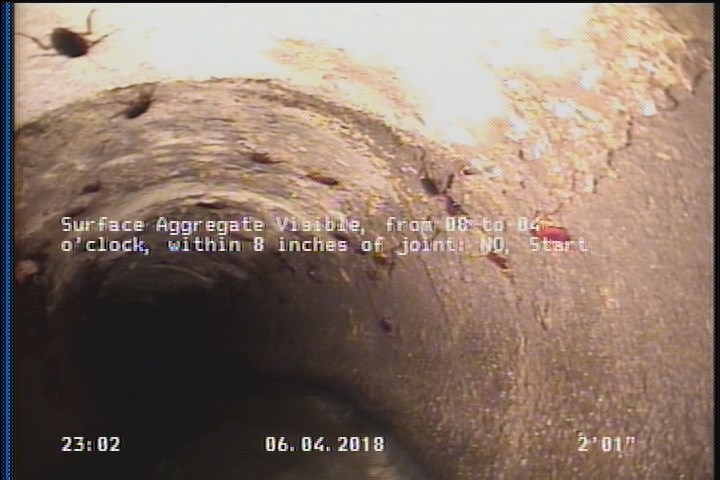

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

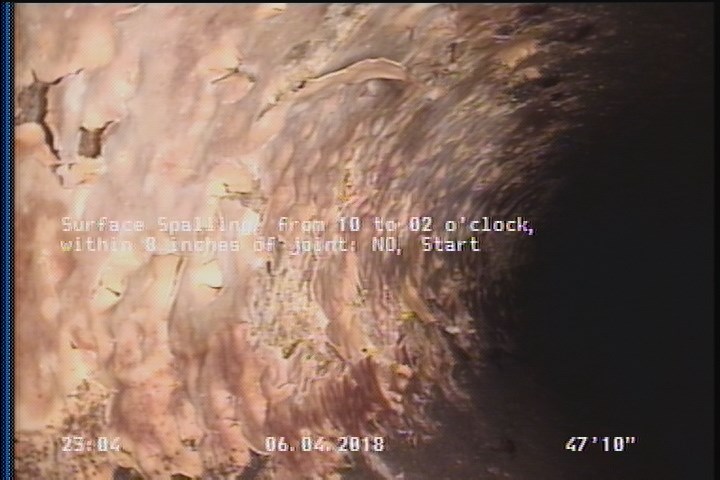

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

    47.8 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

All inspections of P17020Work order 701523

Observations (17)

DistanceCodeObservation
98.5TFC—
179TFC—
2SAV—
32.9TFC—
0MGOCONNECTION AT MH 3 OCLOCK
28.1TFC—
202.3MGOMAGNESIUM COATING END
202.2SAV—
203.4AMH22 0670
0MWL—
2.1MGOMAGNESIUM COATING START
202.2SSS—
0MWM—
173.9TFC—
103.6TFC—
0AMH22 0670A
47.8SSS—

Properties (6)

additional_info
SC359190
custom_field_two
3
customer
LACSD
datetime
2018-06-04T23:00:19-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
