Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 5, 2018, 06:50 AM

  • 22 0656_22 0655 _05062018_000637.mp4

Date
06/04/2018
W/O
701523
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00827
PipeID
P17004
Time
11:50 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5635
Sewer Name
22 SUNFLOWER TRUNK
City
SAN DIMAS, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_701523_TV22166_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0656
Downstream MH
22 0655
Dir. of Survey
Downstream
Length Surveyed
299.6 ft.
Total Length
299.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 22 0656 to 22 0655
MH: 22 0656MH: 22 0655downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 06560 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start19.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"31.6 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start72.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"76.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"165.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"186.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"239.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"243.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"299.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish299.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish299.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0655

Observation photos (2)

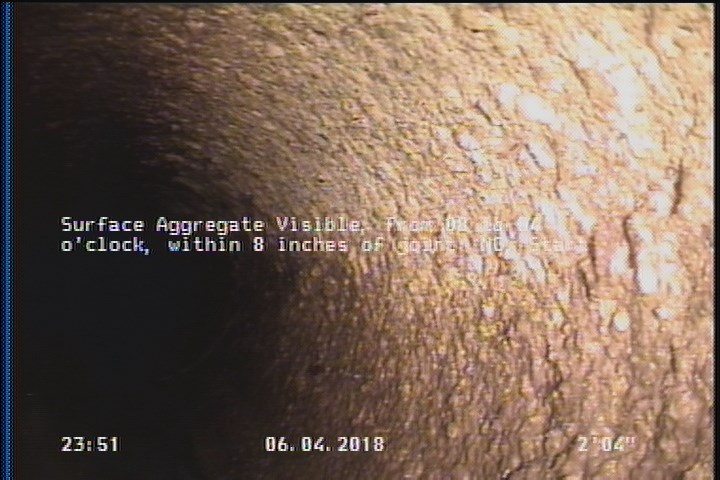

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

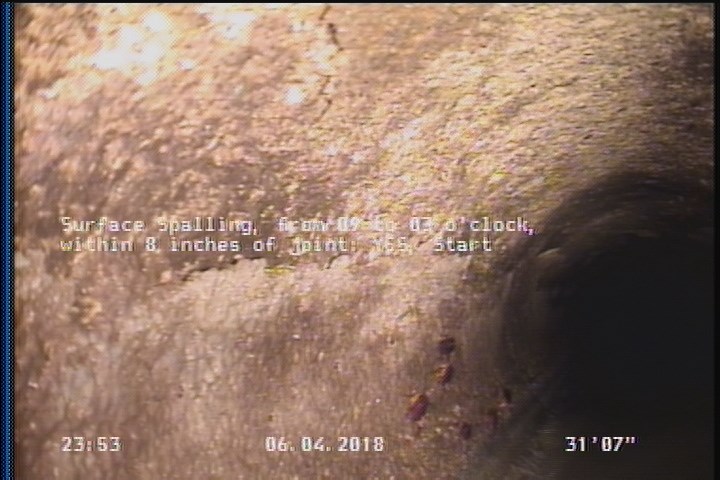

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    31.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P17004Work order 701523

Observations (15)

DistanceCodeObservation
72.6TFC—
0AMH22 0656
239.2TFC—
19.6TFC—
299.4SSS—
76.5TF—
299.4SAV—
31.6SSS—
2.3SAV—
299.6AMH22 0655
165.7TB—
243.7TF—
0MWL—
0MWM—
186.4TF—

Properties (6)

additional_info
SC359190
custom_field_two
3
customer
LACSD
datetime
2018-06-04T23:50:56-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
