Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 4, 2018, 07:42 AM

  • H 0552_H 0551 _04062018_010521.mp4

Date
06/04/2018
W/O
701278
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00185
PipeID
P10976
Time
12:42 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5683
Sewer Name
H JOINT OUTFALL H - UNIT 8B
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
WO_701278_TV15169_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 0552
Downstream MH
H 0551
Dir. of Survey
Downstream
Length Surveyed
463.6 ft.
Total Length
463.6 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
219
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
219
Pipe schematic from manhole H 0552 to H 0551
MH: H 0552MH: H 0551downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - H 05520 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area6.1 ft. MGO - General Observation - MAG COAT23.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO23.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"33.8 ft. SAV - Surface Aggregate Visible, at 10 o'clock, within 8 inches of joint: NO80.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"88.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start151.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"159.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"214.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"222.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"269.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"277.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"340.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"347.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"404.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"412.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"455.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"463.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish463.6 ft. AMH - Downstream Manhole, Survey Ends - H 0551

Observation photos (3)

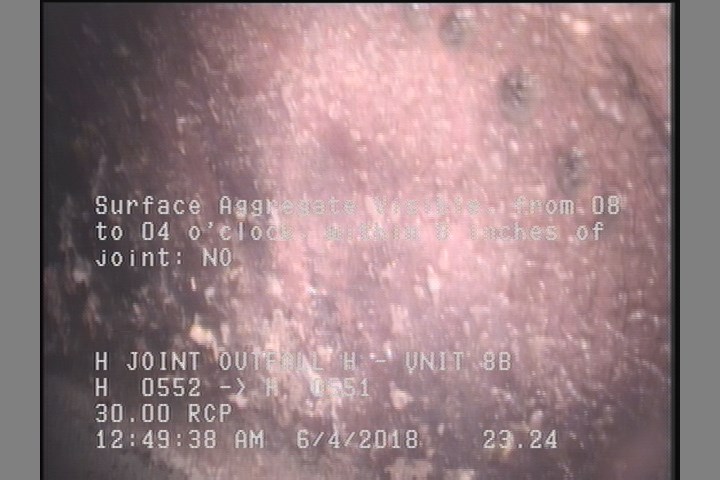

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO

    23.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO

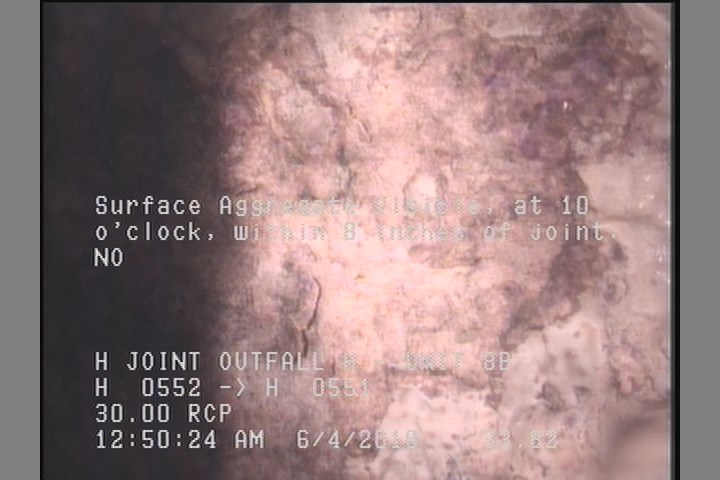

  • Surface Aggregate Visible, at 10 o'clock, within 8 inches of joint: NO

    33.8 ft. - Surface Aggregate Visible, at 10 o'clock, within 8 inches of joint: NO

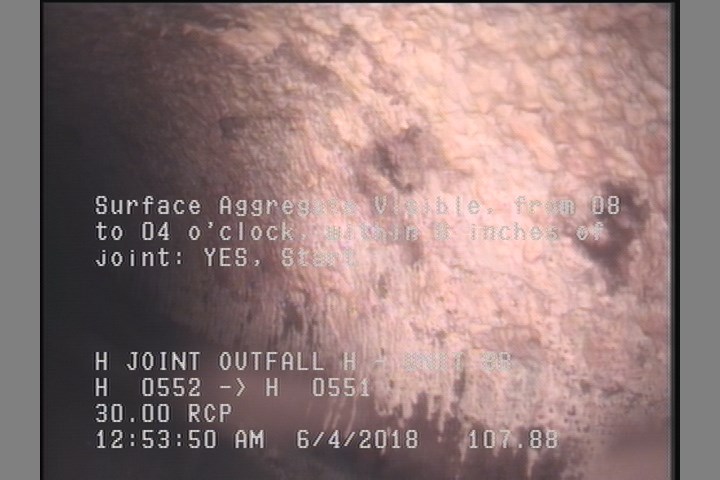

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    107.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P10976Work order 701278

Observations (24)

DistanceCodeObservation
151.9TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
23.2SAV—
107.9SAV—
412.2TFC—
463.6SAV—
277.8TFC—
159.3TFC—
23.2TF—
404.4TFC—
88.1TFC—
340.7TFC—
347.9TFA—
214.7TFC—
0AMHH 0552
0MWL—
463.6AMHH 0551
6.1MGOMAG COAT
222.7TFC—
455.1TFA—
33.8SAV—
269.3TFC—
0MWM—
80.4TFC—

Properties (6)

additional_info
SC359341
custom_field_two
3
customer
LACSD
datetime
2018-06-04T00:42:40-07:00
documentation
PROPIPE
is_lateral_inspection
false
