Wastewater/Activity/PacpInspection/1.0Sep 6, 2017, 10:42 AM
J 0141_J 0140 _06092017_034258.mp4
- Date
- 09/06/2017
- W/O
- 651864
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00052
- PipeID
- P11374
- Time
- 3:42 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4858
- Sewer Name
- J JOINT OUTFALL J - UNIT 1A
- City
- LOMITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_651864_TV05159_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- J 0141
- Downstream MH
- J 0140
- Dir. of Survey
- Downstream
- Length Surveyed
- 501.5 ft.
- Total Length
- 501.5 ft.
- Structural Index
- 3
- Structural Quick
- 3R22
- Structural Rating
- 283
- O&M Index
- 1
- O&M Quick
- 1200
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 285
Observation photos (5)

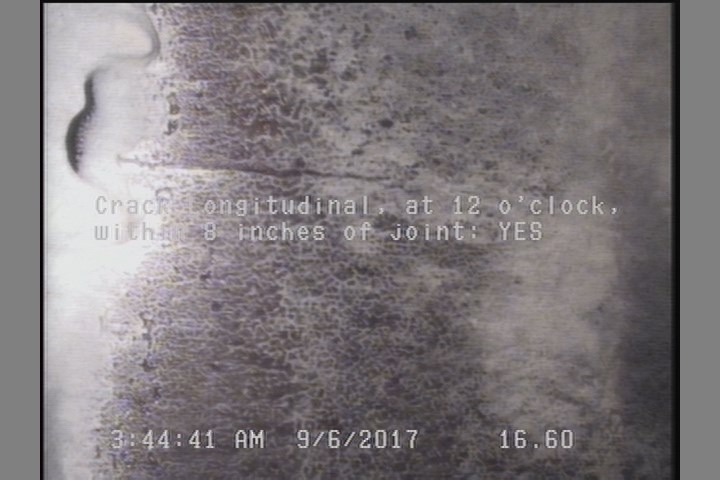

16.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

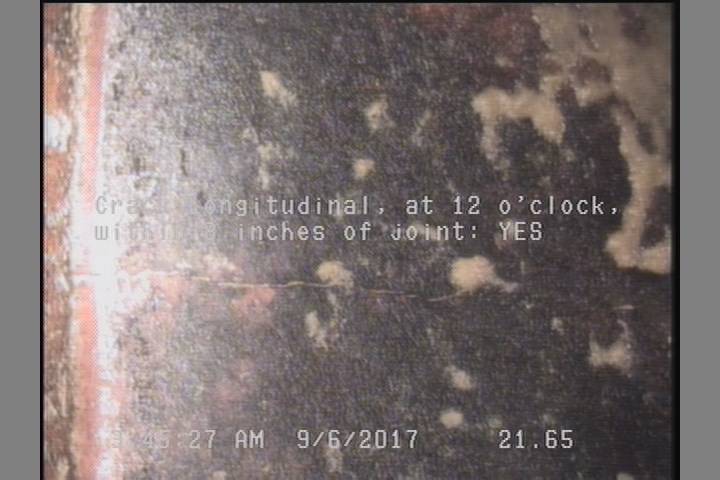

21.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

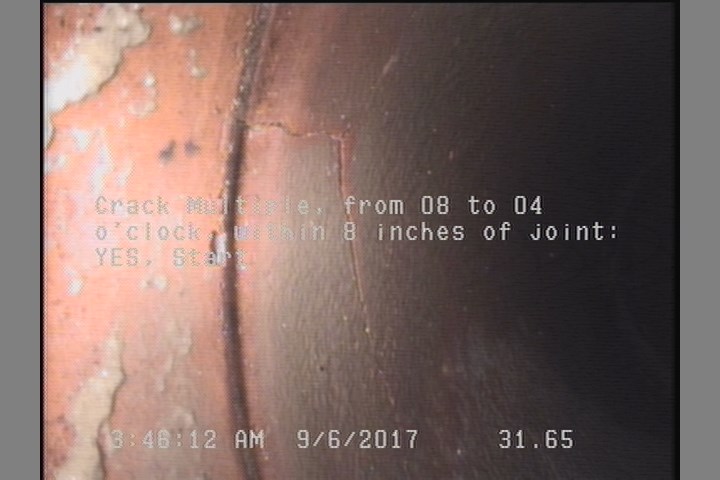

31.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

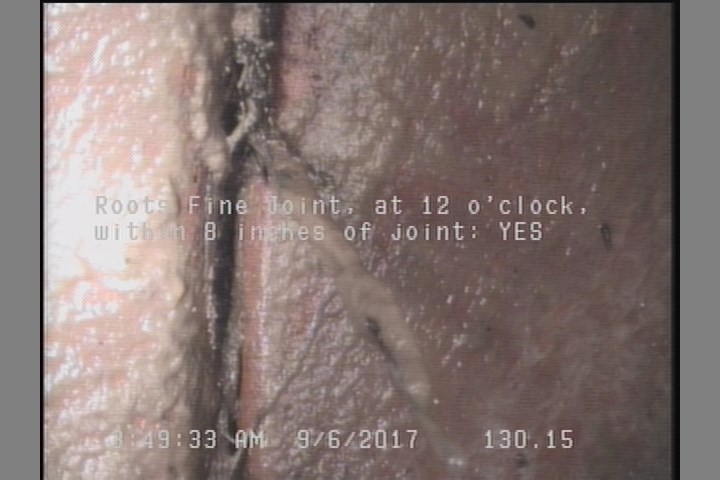

130.2 ft. - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES

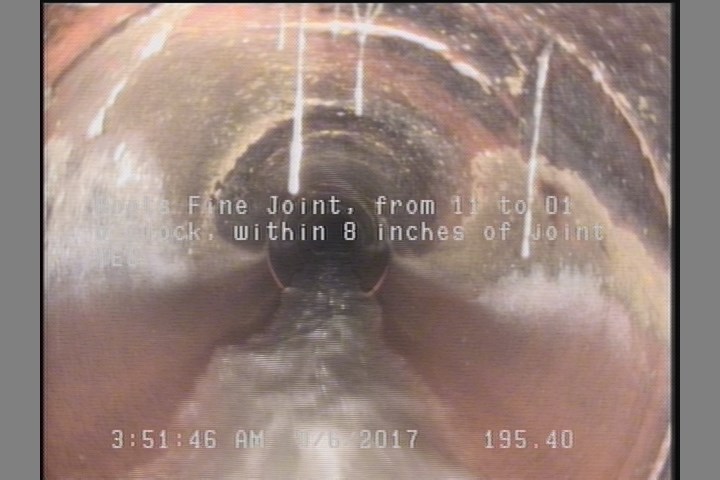

195.4 ft. - Roots Fine Joint, from 11 to 01 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 494.7 | CM | — |
| 16.6 | CL | — |
| 130.2 | RFJ | — |
| 501.5 | AMH | J 0140 |
| 0 | MWL | — |
| 21.7 | CL | — |
| 195.4 | RFJ | — |
| 31.7 | CM | — |
| 0 | MWM | — |
| 183.2 | TB | — |
| 501.5 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | J 0141 |
Properties (6)
- additional_info
- SC345917
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-06T03:42:43-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
