Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 12, 2017, 10:07 AM

  • 01 1021_01 1020_12092017_030827.mp4

Date
09/12/2017
W/O
651726
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00223
PipeID
P01866
Time
3:07 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4871
Sewer Name
01 VERNON EXTENSION RELIEF TRUNK
City
VERNON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
04
Purpose
Routine Assessment
Project
WO_651726_TV01227_AUG2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 1021
Downstream MH
01 1020
Dir. of Survey
Downstream
Length Surveyed
294 ft.
Total Length
294 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
171
O&M Index
2
O&M Quick
2C00
O&M Rating
36
Overall Index
3
Overall Quick
—
Overall Rating
207
Pipe schematic from manhole 01 1021 to 01 1020
MH: 01 1021MH: 01 1020downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 10214.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start201.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start290.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish290.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish294 ft. AMH - Downstream Manhole, Survey Ends - 01 1020

Observation photos (2)

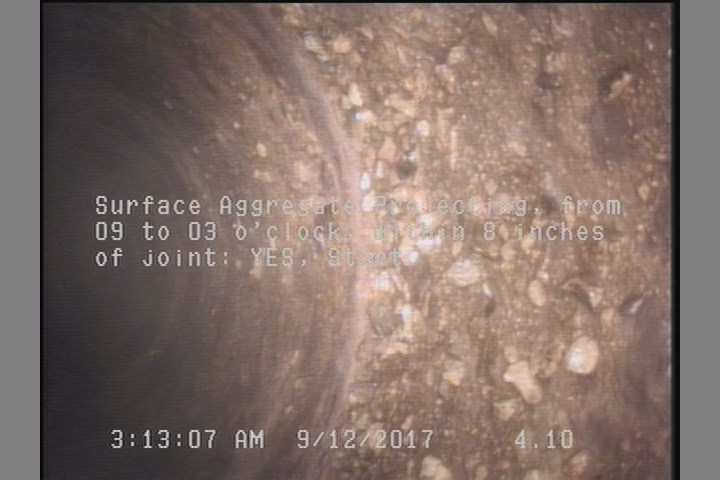

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

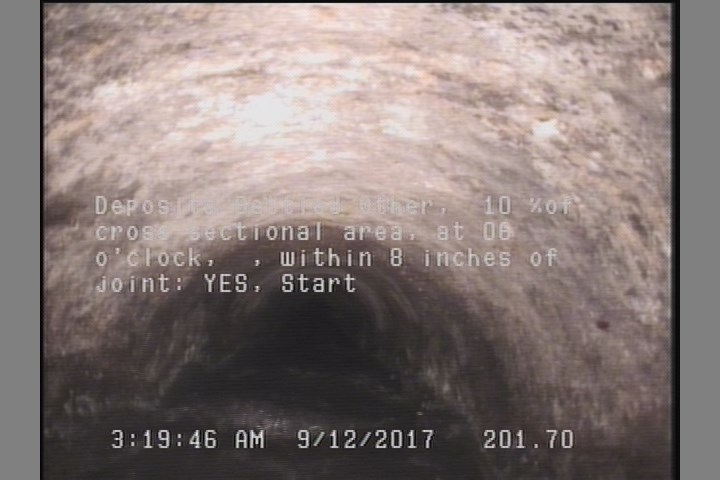

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    201.7 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01866Work order 651726

Observations (10)

DistanceCodeObservation
294AMH01 1020
0MWM—
0MWL—
201.7DSZ—
290.2SAP—
0MGOCONNECTION AT MH 3 O'CLOCK
4.1SAP—
0MGOCONNECTION AT MH 9 O'CLOCK
0AMH01 1021
290.2DSZ—

Properties (6)

additional_info
SC345930
custom_field_two
2
customer
LACSD
datetime
2017-09-12T03:07:36-07:00
documentation
PROPIPE
is_lateral_inspection
false
