Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 16, 2017, 10:09 AM

  • 20 0437_20 0436 _16062017_031046.mp4

Date
06/16/2017
W/O
640624
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00749
PipeID
P19385
Time
3:09 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4583
Sewer Name
20 10TH STREET EAST CONNECTION TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
12
Purpose
Routine Assessment
Project
WO_640624_TV20001_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
20 0437
Downstream MH
20 0436
Dir. of Survey
Downstream
Length Surveyed
267.4 ft.
Total Length
267.4 ft.
Structural Index
3
Structural Quick
3H00
Structural Rating
132
O&M Index
2
O&M Quick
312J
O&M Rating
109
Overall Index
2
Overall Quick
—
Overall Rating
241
Pipe schematic from manhole 20 0437 to 20 0436
MH: 20 0437MH: 20 0436downstream0 ft. AMH - Upstream Manhole, Survey Begins - 20 04370 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start5.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"8.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"32.7 ft. CM - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES48.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"51.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"52.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start108.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"111.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"168.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"170.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"207.6 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"207.6 ft. RML - Roots Medium Lateral, from 12 to 05 o'clock, 15 %, within 8 inches of joint: NO230.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"233.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"242.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"265.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish265.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE265.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish267.4 ft. AMH - Downstream Manhole, Survey Ends - 20 0436

Observation photos (4)

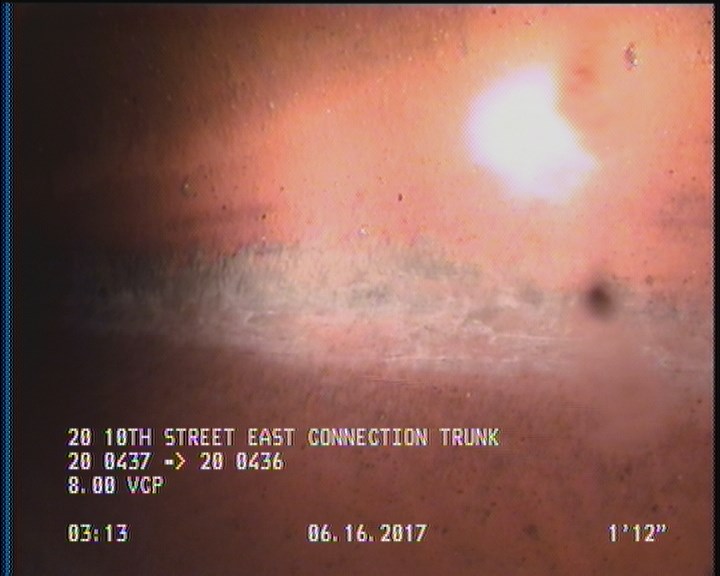

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

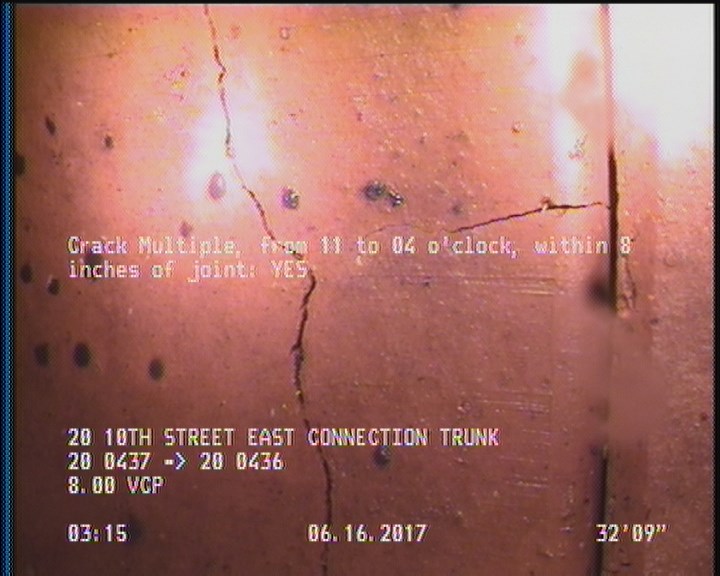

  • Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

    32.7 ft. - Crack Multiple, from 11 to 04 o'clock, within 8 inches of joint: YES

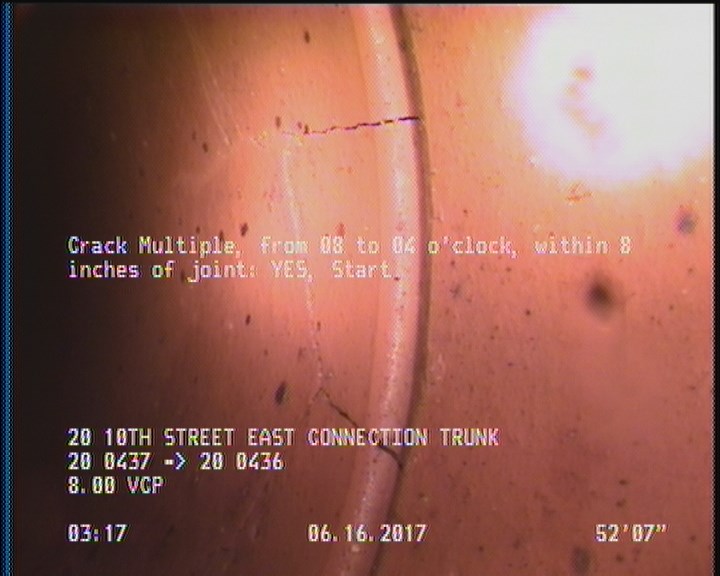

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    52.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

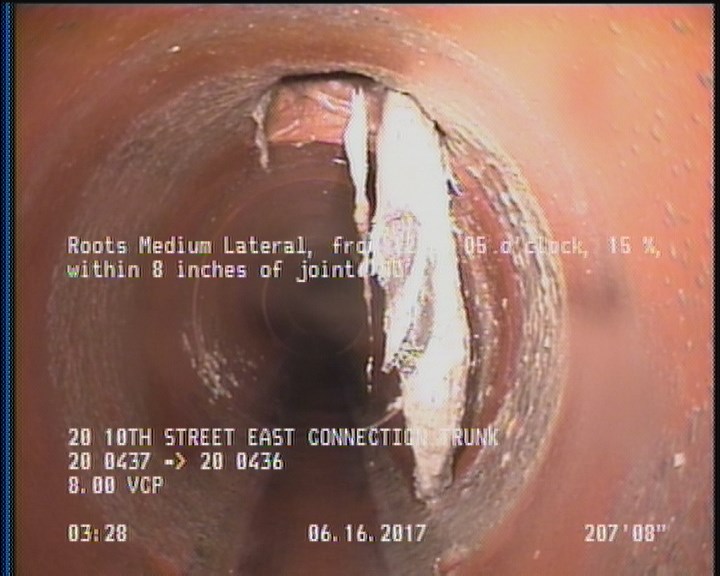

  • Roots Medium Lateral, from 12 to 05 o'clock, 15 %, within 8 inches of joint: NO

    207.6 ft. - Roots Medium Lateral, from 12 to 05 o'clock, 15 %, within 8 inches of joint: NO

All inspections of P19385Work order 640624

Observations (24)

DistanceCodeObservation
48.8TFC—
108.3TFC—
5.9TF—
52.6CM—
265.3DAGS—
2DAGS—
207.6TBA—
265.3MGOCOCKROACHES IN MANHOLE
32.7CM—
230.7TFA—
51.4TFA—
8.4TFC—
170.3TFC—
207.6RML—
267.4AMH20 0436
0AMH20 0437
0MWM—
0MGOCOCKROACHES IN MANHOLE
265.3CM—
242.6TBA—
111.1TF—
0MWL—
168.1TFC—
233.3TFC—

Properties (6)

additional_info
SC345209
custom_field_two
4
customer
LACSD
datetime
2017-06-16T03:09:31-07:00
documentation
PRO PIPE
is_lateral_inspection
false
