Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 15, 2017, 09:33 AM

  • 20 0421_20 0420 _15062017_024553.mp4

Date
06/15/2017
W/O
640624
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00749
PipeID
P19369
Time
2:33 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4582
Sewer Name
20 10TH STREET EAST CONNECTION TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_640624_TV20001_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
20 0420
Downstream MH
20 0421
Dir. of Survey
Upstream
Length Surveyed
370.9 ft.
Total Length
370.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
148
Pipe schematic from manhole 20 0420 to 20 0421
MH: 20 0420MH: 20 0421upstream0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 20 0421, RUN LIST STATES 345'.24.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"74.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"85.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"124.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"142.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"168.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"203.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"218 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"264.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"309.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"335.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"353.3 ft. MGO - General Observation - ABANDONED MH368.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start370.9 ft. MWL - Water Level, 10 %of cross sectional area370.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK370.9 ft. AMH - Downstream Manhole, Survey Begins - 20 0420370.9 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

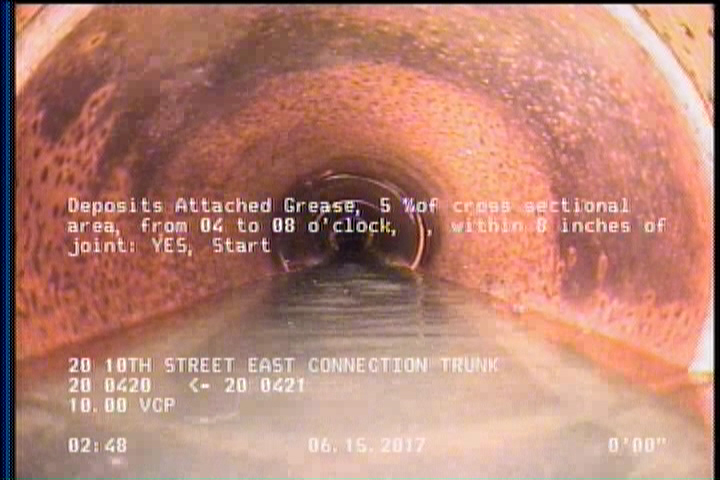

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

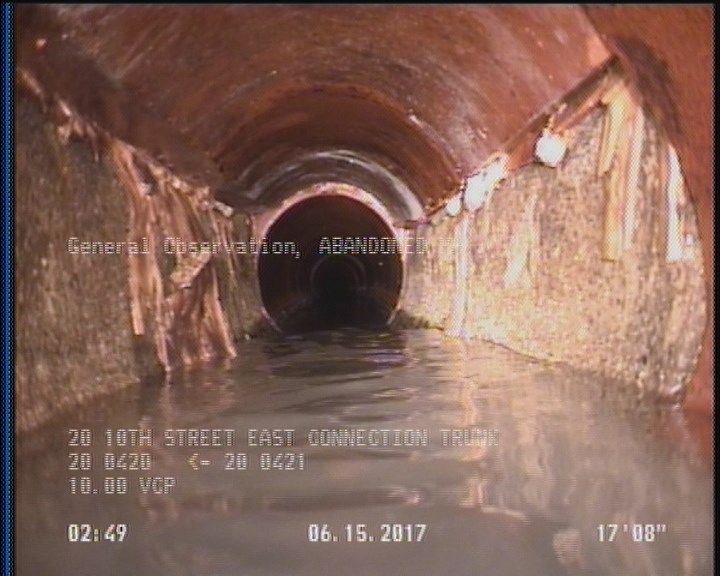

  • General Observation - ABANDONED MH

    17.6 ft. - General Observation - ABANDONED MH

All inspections of P19369Work order 640624

Observations (19)

DistanceCodeObservation
2DAGS—
0MWL—
285.7TFA—
61.7TFA—
296.3TFC—
370.9DAGS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
346.8TFC—
370.9AMH20 0421, RUN LIST STATES 345'.
0AMH20 0420
0MWM—
202.1TFC—
35.3TFC—
152.9TFC—
17.6MGOABANDONED MH
246.8TF—
106.2TF—
167.4TFA—
228.3TFA—

Properties (6)

additional_info
SC345408
custom_field_two
4
customer
LACSD
datetime
2017-06-15T02:33:17-07:00
documentation
PRO PIPE
is_lateral_inspection
false
