Wastewater/Activity/PacpInspection/1.0Feb 15, 2017, 11:50 AM
15 0074_15 1043_02152017_035128.mp4
- Date
- 02/15/2017
- W/O
- 619008
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00624
- PipeID
- P11969
- Time
- 3:50 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4242
- Sewer Name
- 15 PUENTE RELIEF TRUNK
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_619008_TV15024_FEB2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 0074
- Downstream MH
- 15 1043
- Dir. of Survey
- Downstream
- Length Surveyed
- 22.1 ft.
- Total Length
- 22.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 15
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

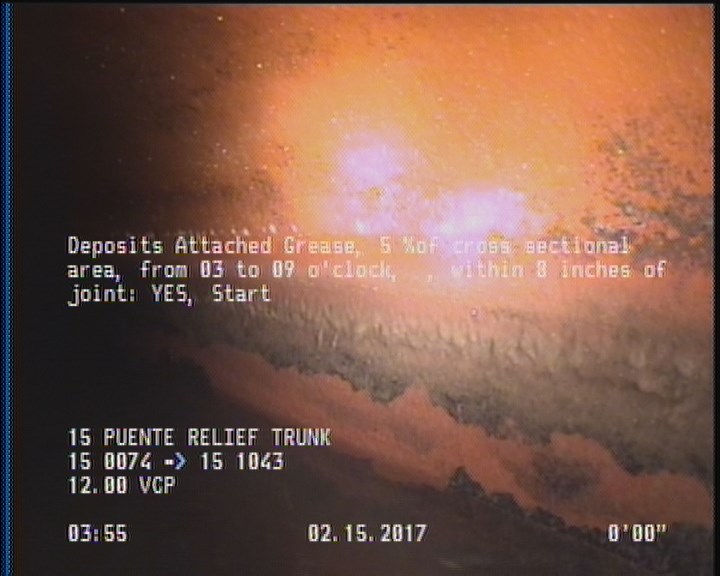

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

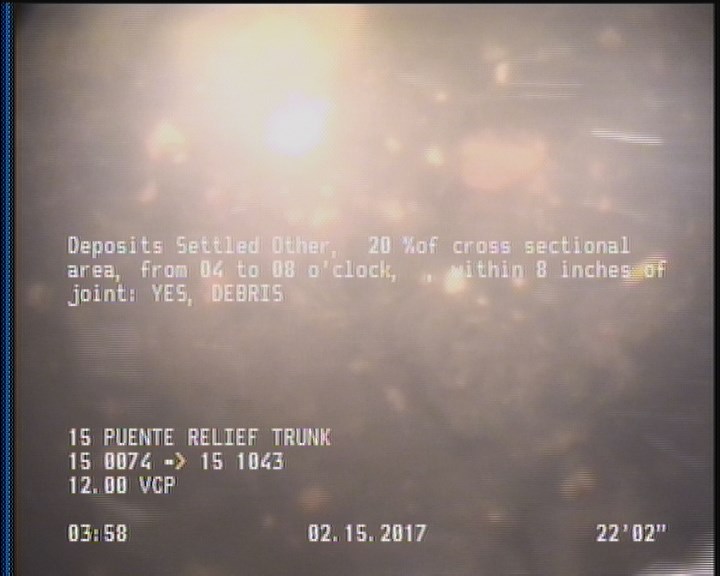

22.1 ft. - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - DEBRIS

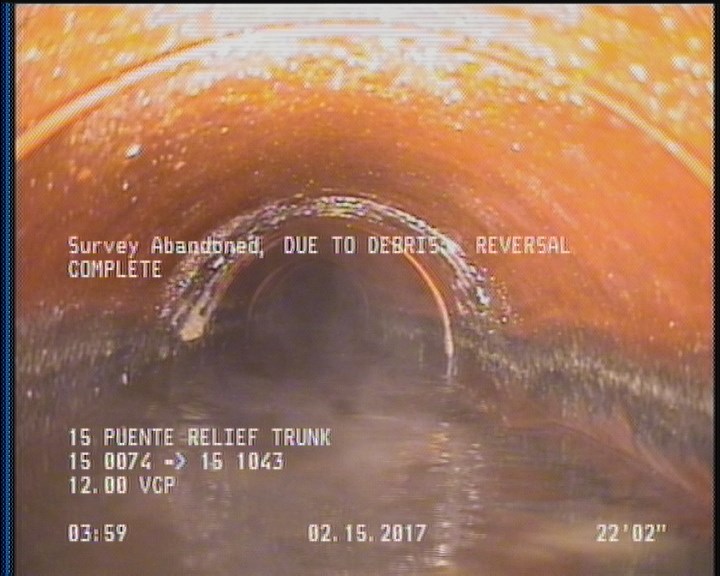

22.1 ft. - Survey Abandoned - DUE TO DEBRIS. REVERSAL COMPLETE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 22.1 | DSZ | DEBRIS |
| 0 | MWM | — |
| 22.1 | DAGS | — |
| 0 | AMH | 15 0074 |
| 22.1 | MSA | DUE TO DEBRIS. REVERSAL COMPLETE |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC306745
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-02-15T03:50:37-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
