Wastewater/Activity/PacpInspection/1.0Jan 30, 2017, 10:22 AM
21 0590_21 0477_30012017_022412.mp4
- Date
- 01/30/2017
- W/O
- 613609
- Weather
- Dry
- Operator/Surveyor
- B. FUGATE
- Sewer ID
- Z00763
- PipeID
- P15533
- Time
- 2:22 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4138
- Sewer Name
- 21 DISTRICT #21 OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_613609_TV21044_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 21 0590
- Downstream MH
- 21 0477
- Dir. of Survey
- Downstream
- Length Surveyed
- 59.6 ft.
- Total Length
- 59.6 ft.
- Structural Index
- 0
- Structural Quick
- 5132
- Structural Rating
- 11
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

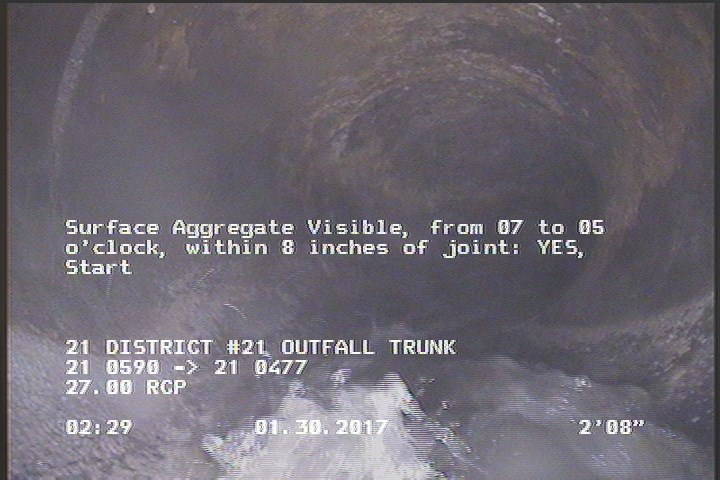

2.7 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

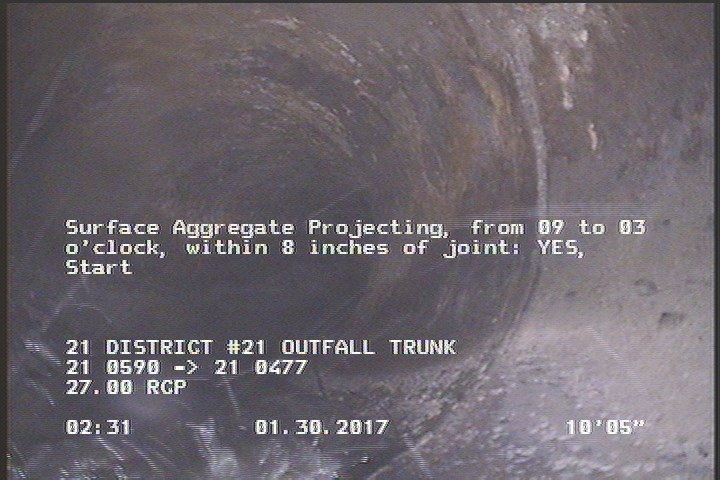

10.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

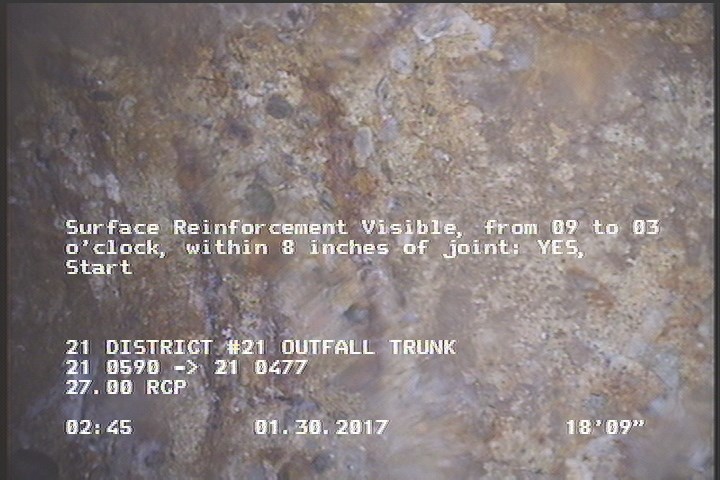

18.8 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 32.6 | TF | — |
| 59.6 | MGO | LATERAL AT MH 3 O'CLOCK |
| 59.6 | SAV | — |
| 59.6 | SAP | — |
| 39.3 | SRV | — |
| 18.8 | SRV | — |
| 2.7 | SAV | — |
| 0 | AMH | 21 0590 |
| 59.6 | AMH | 21 0477 |
| 10.4 | SAP | — |
Properties (6)
- additional_info
- SC306494
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-01-30T02:22:00-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
