Wastewater/Activity/PacpInspection/1.0Jan 18, 2017, 07:48 PM
21 0297_21 0296_18012017_114822.mpg
- Date
- 01/18/2017
- W/O
- 613609
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00763
- PipeID
- P15492
- Time
- 11:48 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4129
- Sewer Name
- 21 DISTRICT #21 OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_613609_TV21044_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 21 0297
- Downstream MH
- 21 0296
- Dir. of Survey
- Downstream
- Length Surveyed
- 403.5 ft.
- Total Length
- 403.6 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

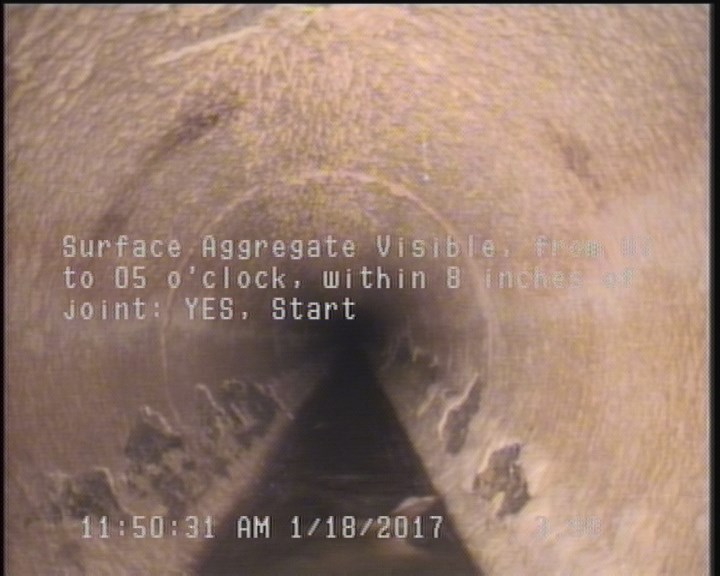

3.9 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

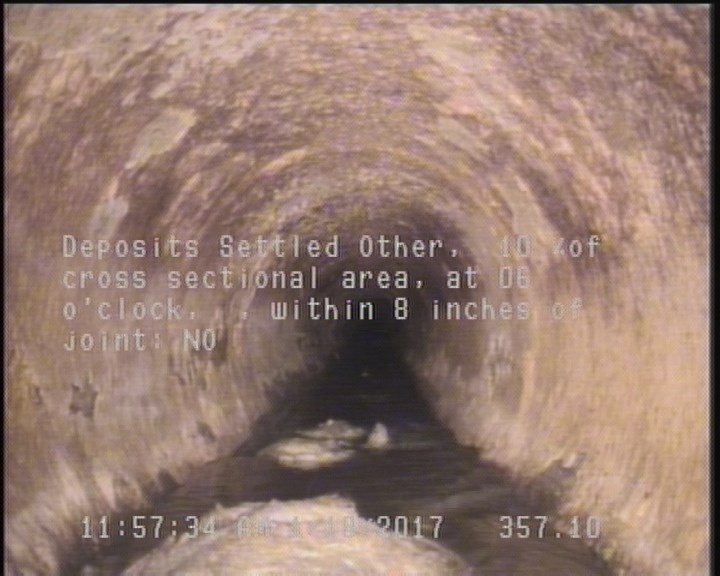

357.1 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 403.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 0 | MWM | — |
| 403.6 | AMH | 21 0296 |
| 403.6 | SAV | — |
| 0 | AMH | 21 0297 |
| 3.9 | SAV | — |
| 357.1 | DSZ | — |
Properties (6)
- additional_info
- SC306485
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-18T11:48:22-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
