Wastewater/Activity/PacpInspection/1.0Jan 13, 2017, 09:32 AM
21 0287_21 0286 _13012017_013300.mpg
- Date
- 01/13/2017
- W/O
- 613609
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00763
- PipeID
- P15482
- Time
- 1:32 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4126
- Sewer Name
- 21 DISTRICT #21 OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_613609_TV21044_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 21 0287
- Downstream MH
- 21 0286
- Dir. of Survey
- Downstream
- Length Surveyed
- 411.4 ft.
- Total Length
- 411.4 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 240
- O&M Index
- 3
- O&M Quick
- 3G00
- O&M Rating
- 114
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 354
Observation photos (3)

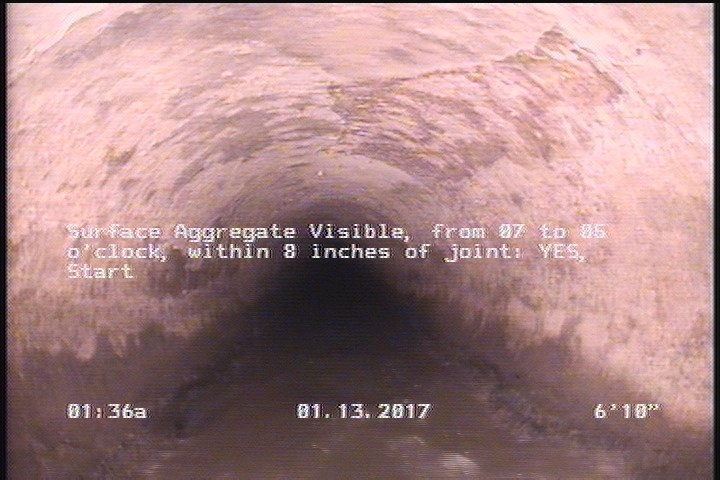

6.8 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

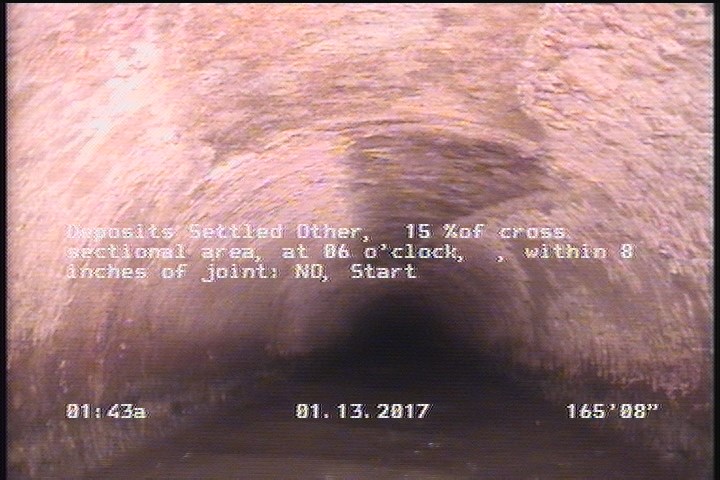

165.6 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

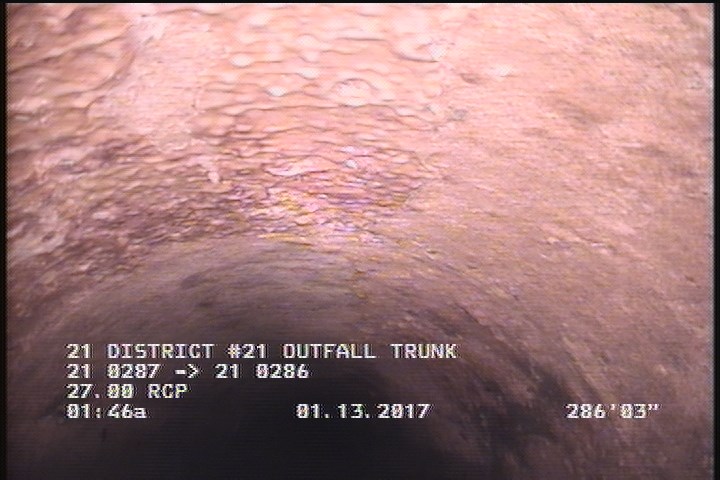

286.3 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 235.9 | DSZ | — |
| 0 | AMH | 21 0287 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 407.6 | SAV | — |
| 60.5 | TB | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 411.4 | AMH | 21 0286 |
| 6.8 | SAV | — |
| 407.6 | DSZ | — |
| 6.8 | MGO | MAG COAT |
| 165.6 | DSZ | — |
| 286.3 | DSZ | — |
Properties (6)
- additional_info
- SC306482
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-13T01:32:05-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
