Wastewater/Activity/PacpInspection/1.0Dec 27, 2014, 09:45 AM
30 0333_30 0332_20141227_014611.mp4
- Date
- 12/27/2014
- W/O
- 480747
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00879
- PipeID
- P17984
- Time
- 1:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K1940
- Sewer Name
- 30 SOUTH BAY CITIES MAIN EXT #3 RELIEF TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_480747_TV30037_2014DECEMBER
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Other
- Height
- 21 in.
- Upstream MH
- 30 0333
- Downstream MH
- 30 0332
- Dir. of Survey
- Downstream
- Length Surveyed
- 522.1 ft.
- Total Length
- 522.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)
0 ft. - Upstream Manhole, Survey Begins - 30 0333

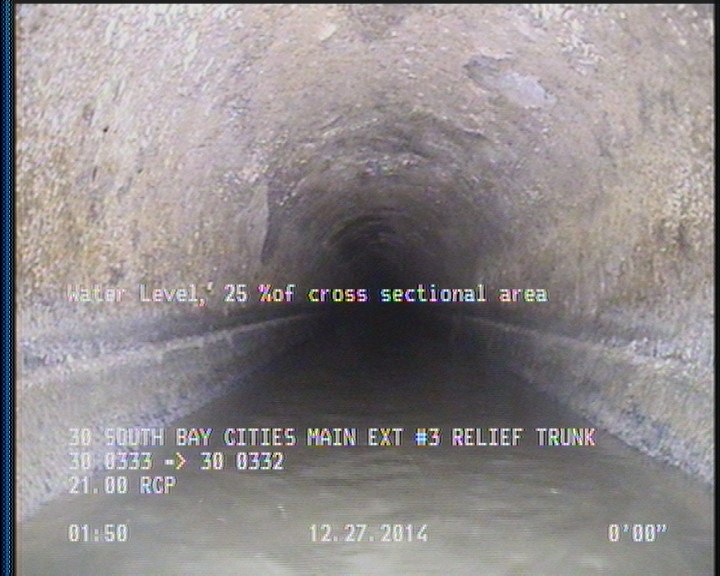

0 ft. - Water Level, 25 %of cross sectional area

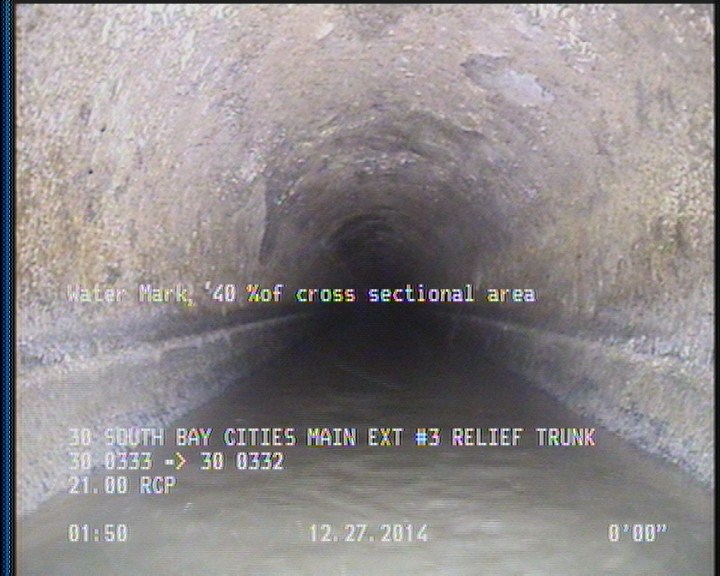

0 ft. - Water Mark, 40 %of cross sectional area

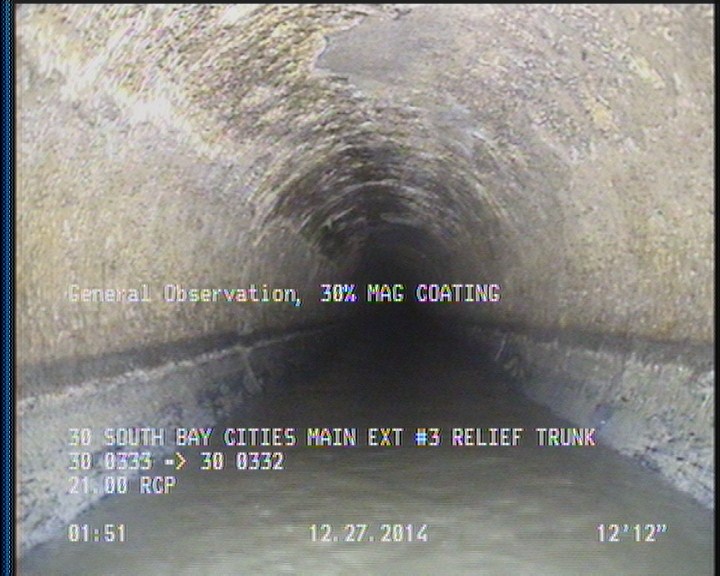

13 ft. - General Observation - 30% MAG COATING
522.1 ft. - Downstream Manhole, Survey Ends - 30 0332
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 522.1 | AMH | 30 0332 |
| 0 | AMH | 30 0333 |
| 13 | MGO | 30% MAG COATING |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (7)
- additional_info
- SC190177
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2014-12-27T01:45:53-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 19781025
