Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2019, 10:49 AM

  • Section#4_18 0274_18 0273__7222019__I0185R.mp4

Date
07/22/2019
W/O
0777342
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00652
PipeID
P13316
Time
3:49 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0185R
Sewer Name
16 CHAPEL AVENUE TRUNK, SECTION 1
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Maintenance Related
Project
20190722MDM_CHAPEL_AVENUE_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
18 0274
Downstream MH
18 0273
Dir. of Survey
Downstream
Length Surveyed
249.7 ft.
Total Length
249.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3211
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 18 0274 to 18 0273
MH: 18 0274MH: 18 0273downstream0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MWM - Water Mark, 20 %of cross sectional area8 ft. MGO - General Observation - 18" VCP30.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB46.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB57.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB81.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB93.2 ft. RMJ - Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR95.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB98.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN105.1 ft. RMJ - Roots Medium Joint, from 03 to 04 o'clock, 5 %, within 8 inches of joint: YESR108.4 ft. RFJ - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YESR - 1%119.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB139.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB146 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN151.8 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE157.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB169.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN180.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB192.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB207.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB219.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB231.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - STUB249 ft. MGO - General Observation - MH CONN 9:00 ACTIVE249.7 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (2)

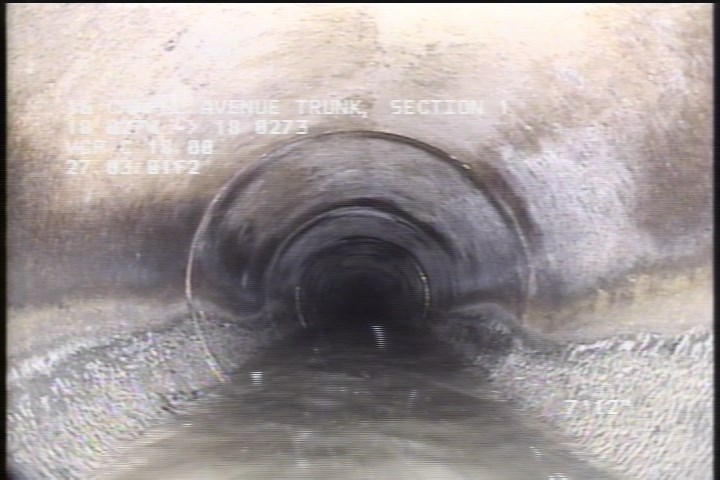

  • General Observation - 18" VCP

    8 ft. - General Observation - 18" VCP

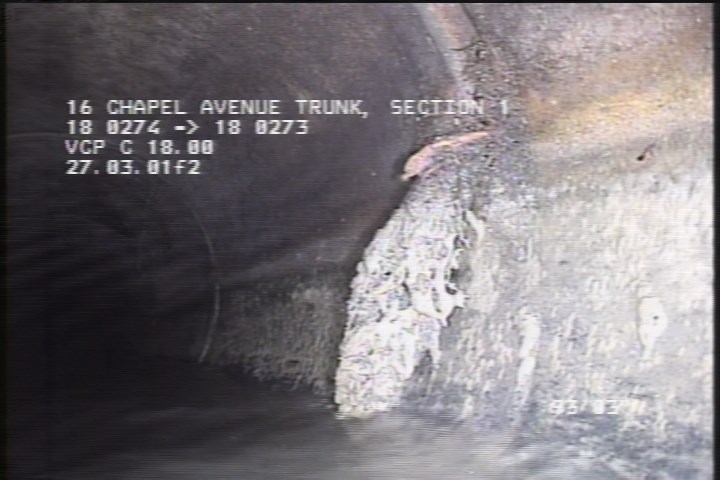

  • Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR

    93.2 ft. - Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR

All inspections of P13316Work order 0777342

Observations (27)

DistanceCodeObservation
30.8TFCSTUB
81.1TFCSTUB
105.1RMJ—
249.7AMH4:40AM
219.3TFCSTUB
169.3TFOPEN
57.5TFCSTUB
146TFOPEN
93.2RMJ—
139.8TFCSTUB
192.5TFCSTUB
0MGOMH CONN 9:00 ACTIVE
46.3TFCSTUB
231.2TFCSTUB
95.8TFCSTUB
249MGOMH CONN 9:00 ACTIVE
180.7TFCSTUB
119.3TFCSTUB
108.4RFJ1%
151.8TBACTIVE
0MWL—
0AMH4:15AM
98.7TFOPEN
0MWM—
157.2TFCSTUB
207.7TFCSTUB
8MGO18" VCP

Properties (5)

additional_info
ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-07-22T03:49:12-07:00
documentation
MARTIN,REVELES,OLIVER 111,SHADLER
is_lateral_inspection
false
