Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2019, 10:56 AM

  • Section#2_18 0943_18 0942__7192019__I0181R.mp4

Date
07/19/2019
W/O
0777341
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00701
PipeID
P14790
Time
3:56 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0181R
Sewer Name
18 SCOTT AVENUE RELIEF TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Maintenance Related
Project
20190719MDM_SCOTT_AVENUE_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
7.519999980926514 in.
Upstream MH
18 0943
Downstream MH
18 0942
Dir. of Survey
Downstream
Length Surveyed
156.7 ft.
Total Length
156.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 18 0943 to 18 0942
MH: 18 0943MH: 18 0942downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AMAM0 ft. MWM - Water Mark, 30 %of cross sectional area46.9 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN46.9 ft. MGO - General Observation - 7.5" VCP = PVCP156 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - METAL BOLT INSIDE MH#941156.1 ft. MGO - General Observation - MH CONN 9:00 ACTIVE156.7 ft. AMH - Downstream Manhole, Survey Ends - 4:20AM

Observation photos (2)

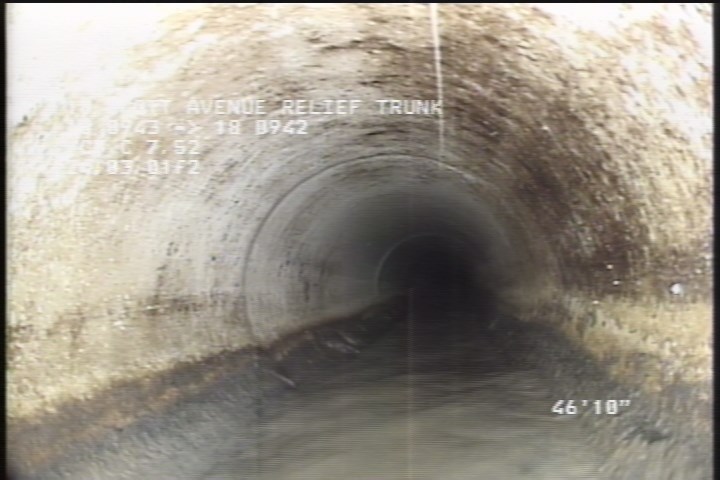

  • General Observation - 7.5" VCP = PVCP

    46.9 ft. - General Observation - 7.5" VCP = PVCP

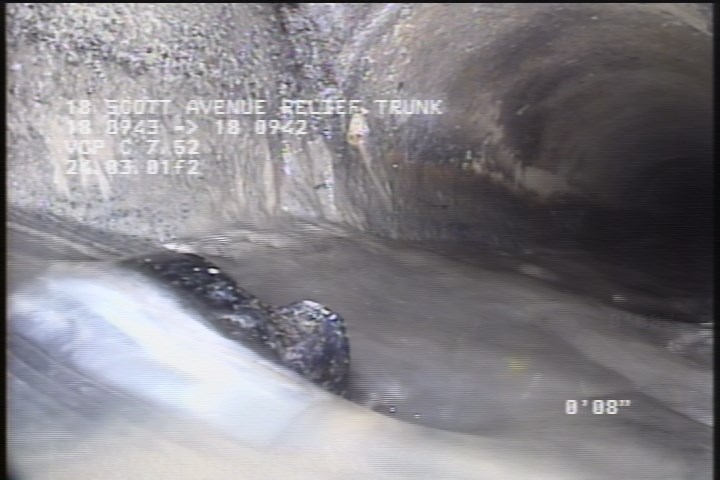

  • Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - METAL BOLT INSIDE MH#941

    156 ft. - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - METAL BOLT INSIDE MH#941

All inspections of P14790Work order 0777341

Observations (8)

DistanceCodeObservation
156.1MGOMH CONN 9:00 ACTIVE
156DSZMETAL BOLT INSIDE MH#941
0MWL—
46.9TBOPEN
0AMH4:00AMAM
156.7AMH4:20AM
0MWM—
46.9MGO7.5" VCP = PVCP

Properties (6)

additional_info
POSR ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-07-19T03:56:38-07:00
documentation
MARTIN,REVELES,OLIVER 111,SHADLER
is_lateral_inspection
false
lining
PVCP
