Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2019, 11:56 AM

  • B 1322_B 1321_7192019_055622.mp4

Date
07/19/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01126
PipeID
P25217
Time
4:56 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8032
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Woods
Location Code
E
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Routine Assessment
Project
20190719DF_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
B 1322
Downstream MH
B 1321
Dir. of Survey
Downstream
Length Surveyed
102.1 ft.
Total Length
102.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole B 1322 to B 1321
MH: B 1322MH: B 1321downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:00 AM0.1 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. MWM - Water Mark, 20 %of cross sectional area25.5 ft. MGP - General Photograph37.7 ft. MGP - General Photograph40.5 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Start61.6 ft. MGP - General Photograph - POSSIBLE DEBRIS82 ft. MGP - General Photograph94.2 ft. MGP - General Photograph94.2 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Finish96 ft. MGP - General Photograph102.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)102.1 ft. AMH - Downstream Manhole, Survey Ends - 6:18 AM

Observation photos (8)

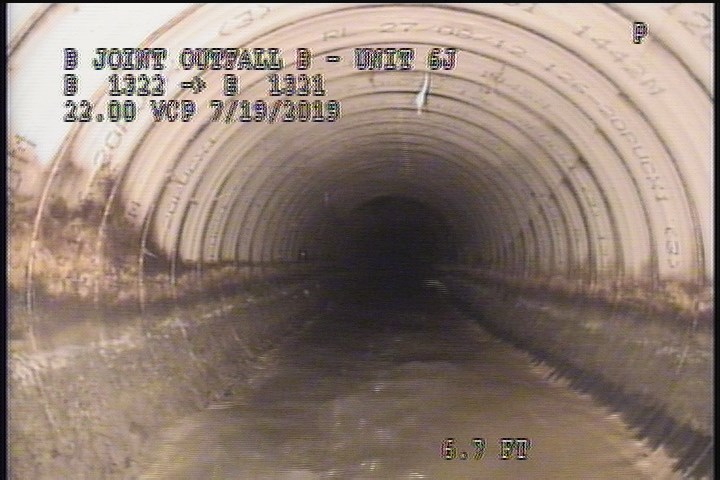

  • Water Mark, 20 %of cross sectional area

    0.1 ft. - Water Mark, 20 %of cross sectional area

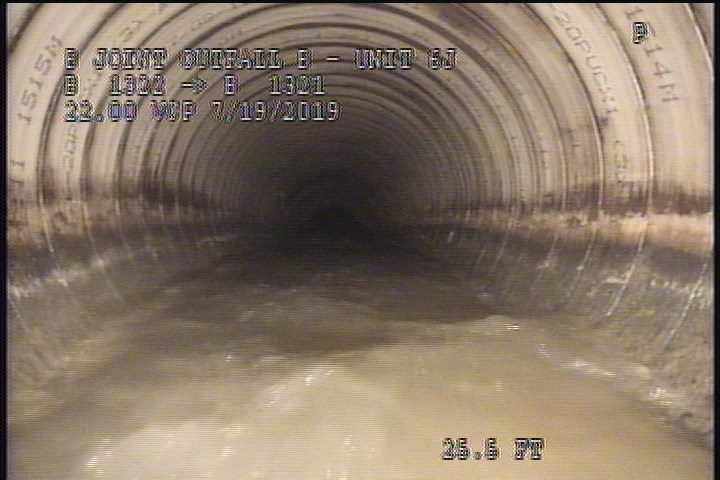

  • General Photograph

    25.5 ft. - General Photograph

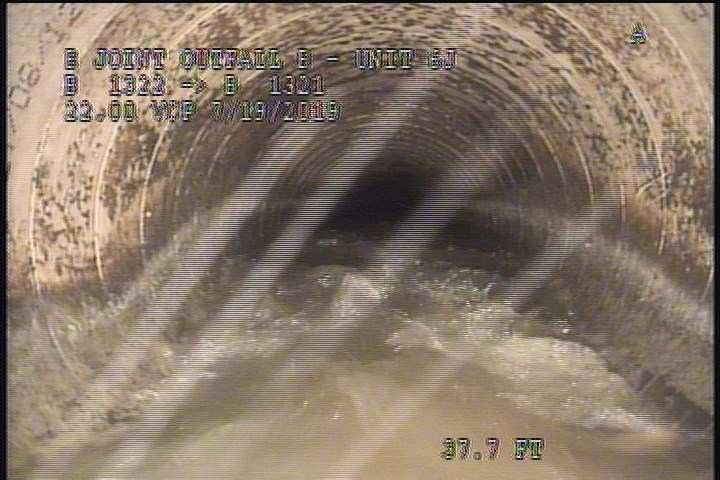

  • General Photograph

    37.7 ft. - General Photograph

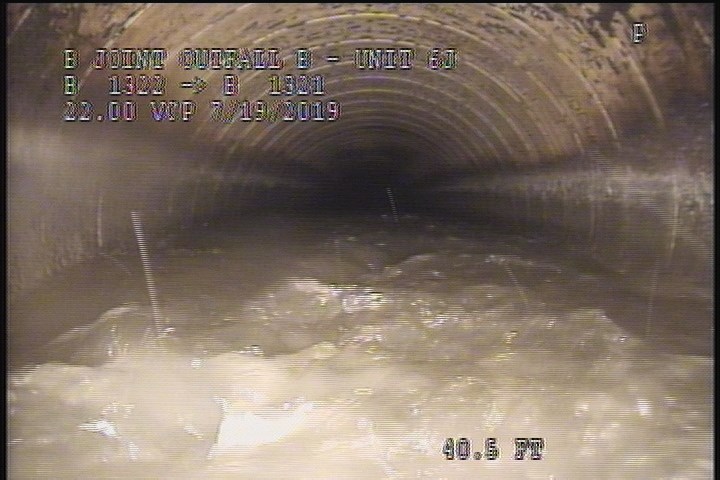

  • Water Level, Sag in pipe, 20 %of cross sectional area, Start

    40.5 ft. - Water Level, Sag in pipe, 20 %of cross sectional area, Start

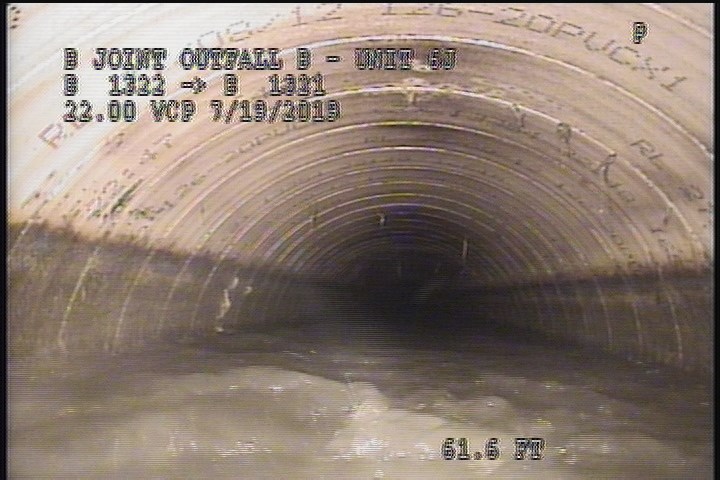

  • General Photograph - POSSIBLE DEBRIS

    61.6 ft. - General Photograph - POSSIBLE DEBRIS

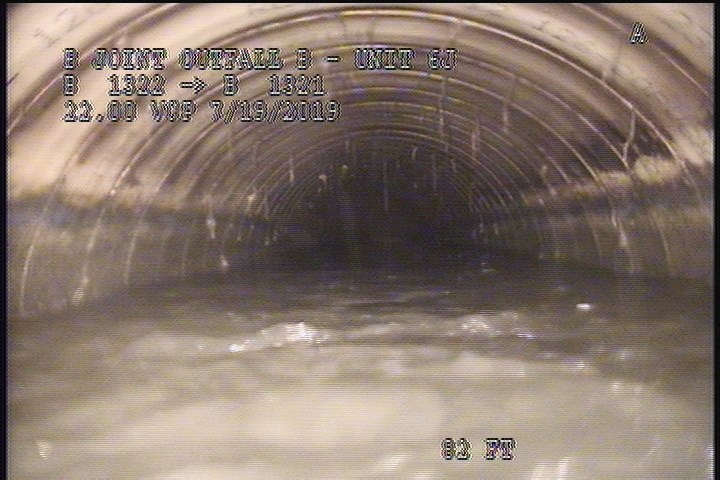

  • General Photograph

    82 ft. - General Photograph

  • General Photograph

    94.2 ft. - General Photograph

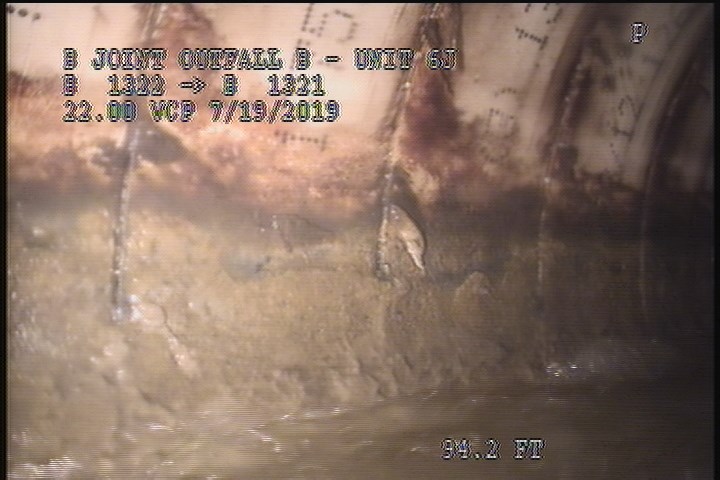

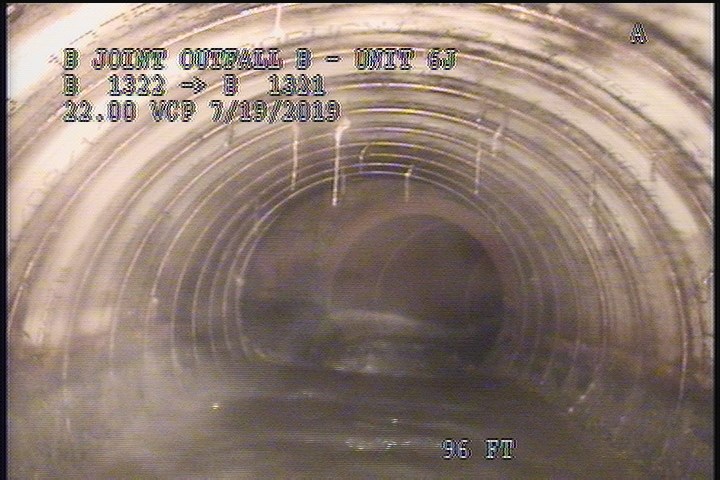

  • General Photograph

    96 ft. - General Photograph

All inspections of P25217Work order 0771792

Observations (13)

DistanceCodeObservation
0.1MWL—
102.1MGOGREASE THROUGHOUT THE REACH (5%)
102.1AMH6:18 AM
94.2MGP—
25.5MGP—
0.1MWM—
96MGP—
40.5MWLS—
0AMH5:00 AM
94.2MWLS—
37.7MGP—
61.6MGPPOSSIBLE DEBRIS
82MGP—

Properties (6)

custom_field_three
DEBRIS THROUGHOUT
custom_field_two
4
customer
LACSD
datetime
2019-07-19T04:56:07-07:00
documentation
FRANKLIN, CASTILLO, RUVALCABA, IGNACIO
is_lateral_inspection
false
