Wastewater/Activity/PacpInspection/1.0Jul 19, 2019, 03:50 PM
A 1226_A 0302A_7192019_115327.mp4
- Date
- 07/19/2019
- W/O
- 0767441
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00325
- PipeID
- P26774
- Time
- 8:50 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G8033
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- WHITTIER
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20190719DF_JOA_1A_SAN_JOSE_CREEK_WRP_INT
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0302A
- Downstream MH
- A 1226
- Dir. of Survey
- Upstream
- Length Surveyed
- 13 ft.
- Total Length
- 13 ft.
- Structural Index
- 4
- Structural Quick
- 5231
- Structural Rating
- 15
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

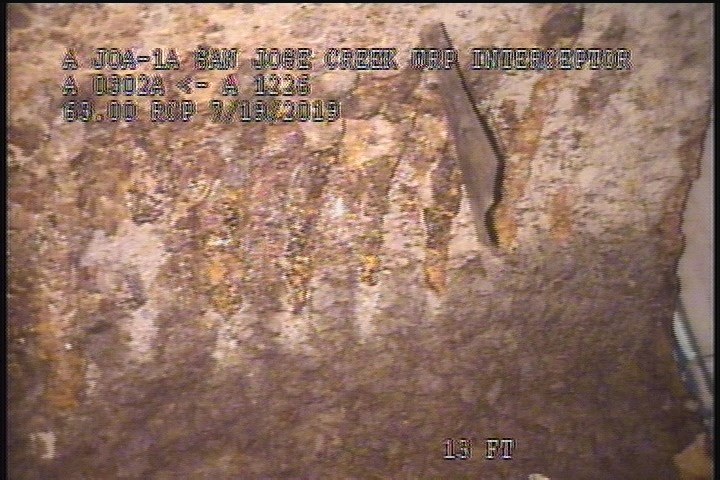

13 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

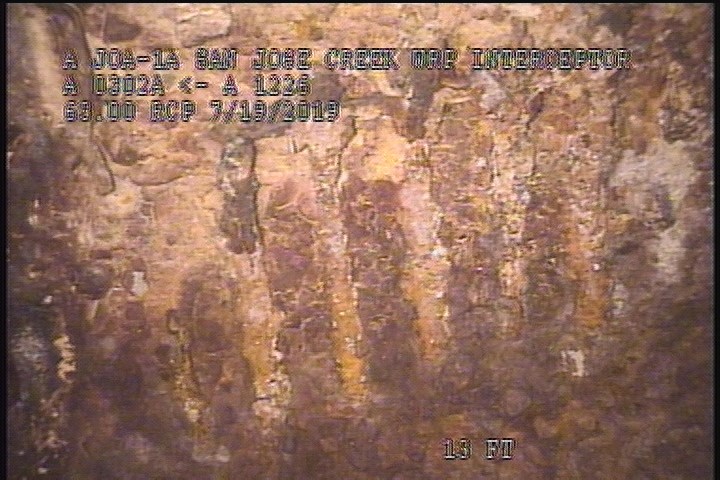

13 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES

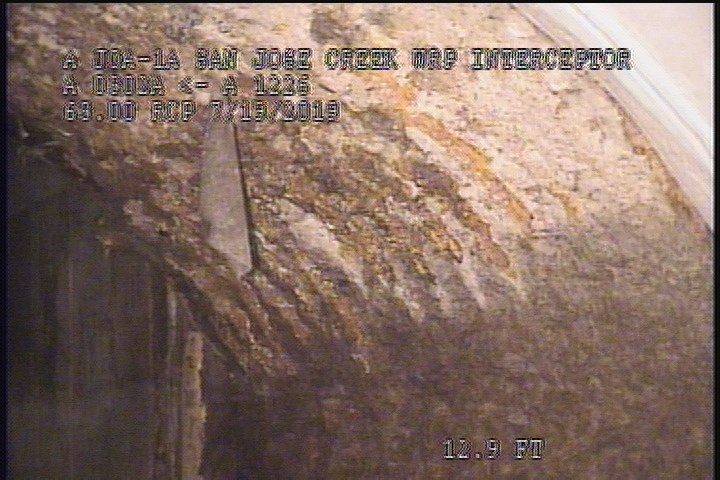

13 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

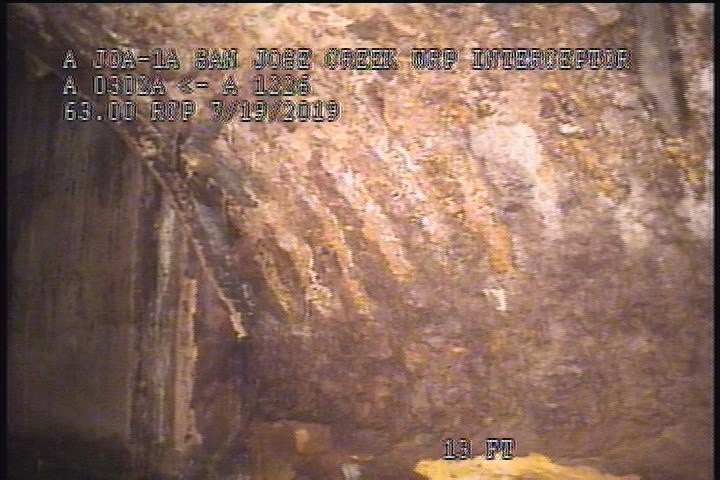

13 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 11:54 AM |
| 13 | SSS | — |
| 13 | SRC | — |
| 13 | MGO | Peeling & Flaking Throughout The Reach |
| 13 | SRV | — |
| 13 | AMH | 12:00 PM |
| 13 | SAV | — |
| 0.1 | MWL | — |
| 0.1 | MWM | — |
Properties (6)
- custom_field_three
- SURFACE AGGREGATE AND REINFORCEMENT VISIBLE
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-07-19T08:50:27-07:00
- documentation
- FRANKLIN, CASTILLO, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
