Wastewater/Activity/PacpInspection/1.0Jul 18, 2019, 10:34 AM
Section#4_21 0393_21 0392__7182019__I0179.mp4
- Date
- 07/18/2019
- W/O
- 0777339
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00757
- PipeID
- P15599
- Time
- 3:34 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0179
- Sewer Name
- 21 CENTER STREET TRUNK
- City
- INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Maintenance Related
- Project
- 20190718MDM_CENTER_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0393
- Downstream MH
- 21 0392
- Dir. of Survey
- Downstream
- Length Surveyed
- 348 ft.
- Total Length
- 348 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

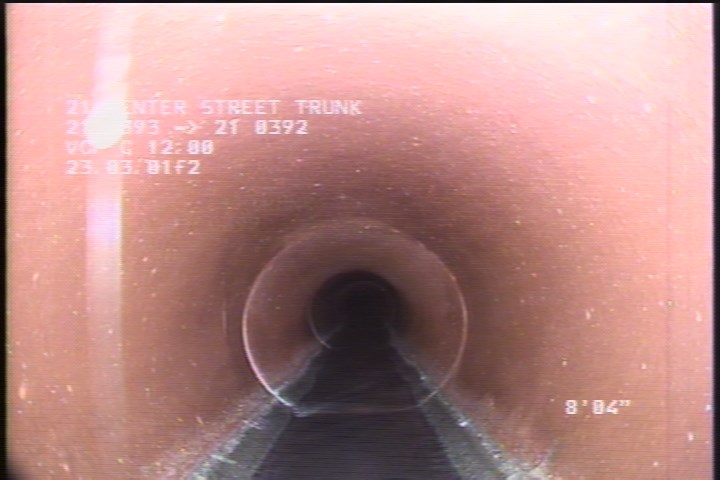

8.4 ft. - General Observation - 12" VCP

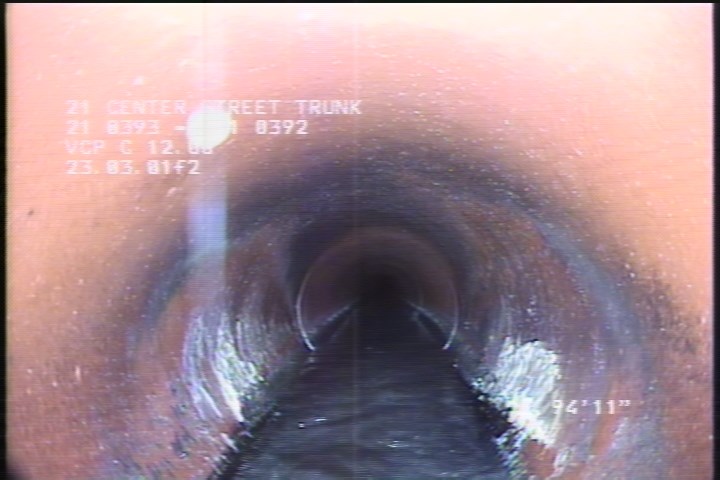

100.8 ft. - Deposits Attached Grease, 4%of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

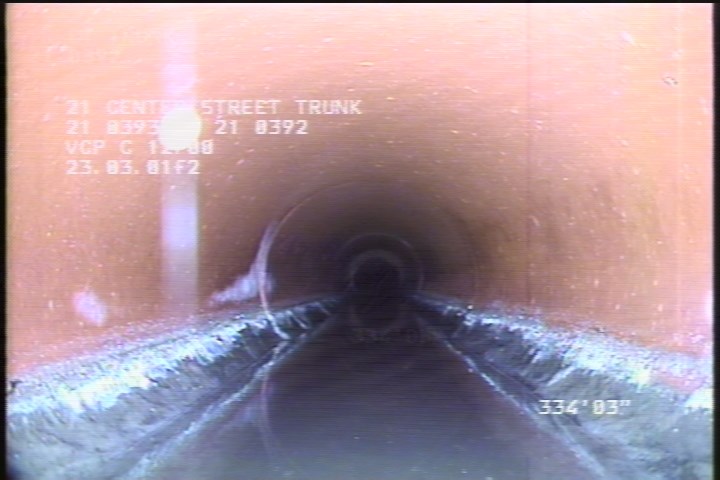

334.3 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 219.8 | TFC | STUB |
| 100.8 | DAGS | — |
| 0 | AMH | 3:35AM |
| 348 | AMH | 3:55AM |
| 334.3 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 8.4 | MGO | 12" VCP |
Properties (5)
- additional_info
- PRE - CLEANING INSPECTION ONLY
- customer
- LACSD
- datetime
- 2019-07-18T03:34:10-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,SHADLER
- is_lateral_inspection
- false
