Wastewater/Activity/PacpInspection/1.0Jul 18, 2019, 09:39 AM
Section#3_21 0394_21 0393__7182019__I0179.mp4
- Date
- 07/18/2019
- W/O
- 0777339
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00757
- PipeID
- P15600
- Time
- 2:39 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0179
- Sewer Name
- 21 CENTER STREET TRUNK
- City
- INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Maintenance Related
- Project
- 20190718MDM_CENTER_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0394
- Downstream MH
- 21 0393
- Dir. of Survey
- Downstream
- Length Surveyed
- 349.2 ft.
- Total Length
- 349.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3121
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

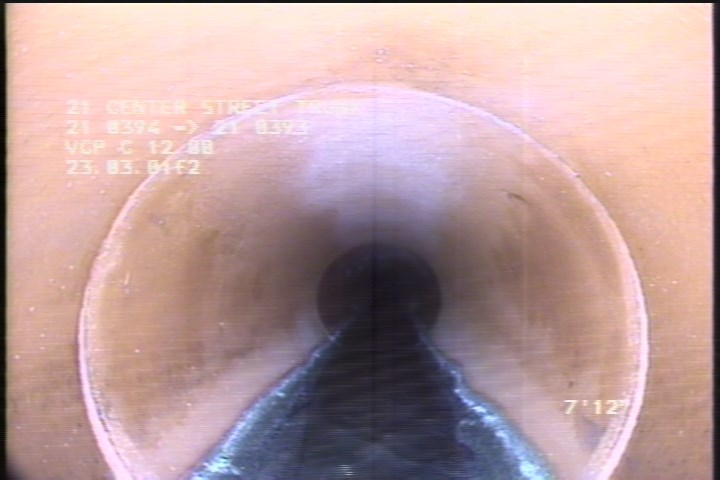

8 ft. - General Observation - 12" VCP

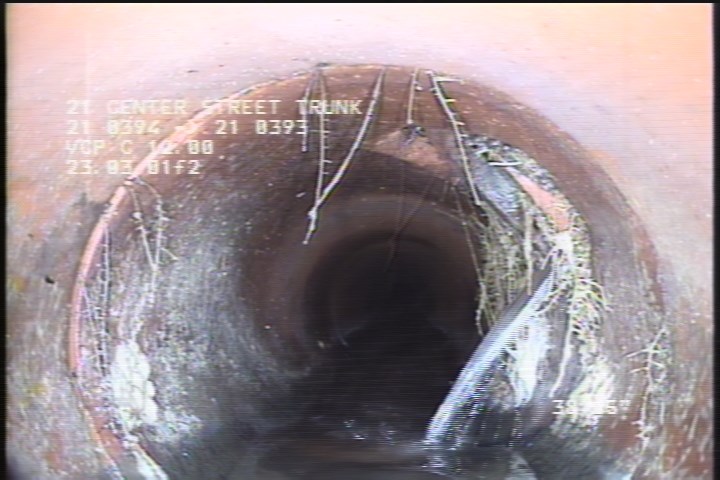

40.5 ft. - Roots Medium Joint, from 07 to 05 o'clock, 10 %, within 8 inches of joint: YESR - ROOTS & GREASE

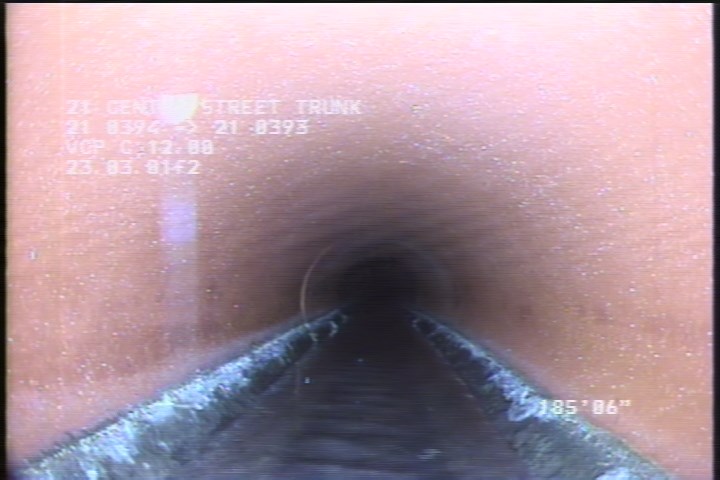

185.5 ft. - Deposits Attached Grease, 1% %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 349.2 | AMH | 3:15AM |
| 185.5 | DAGS | — |
| 40.5 | RMJ | ROOTS & GREASE |
| 272.2 | TFC | STUB |
| 40.5 | TB | ACTIVE |
| 0 | AMH | 2:55AM |
| 105.1 | RFJ | 1% |
| 8 | MGO | 12" VCP |
| 0 | MWM | — |
| 89.8 | RFJ | 2% |
| 0 | MWL | — |
Properties (5)
- additional_info
- PRE- CLIEANING INSPECTION ONLY
- customer
- LACSD
- datetime
- 2019-07-18T02:39:00-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,SHADLER
- is_lateral_inspection
- false
