Wastewater/Activity/PacpInspection/1.0Jul 18, 2019, 08:25 AM
Section#2_21 0395_21 0394__7182019__I0179.mp4
- Date
- 07/18/2019
- W/O
- 0777339
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00757
- PipeID
- P15601
- Time
- 1:25 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0179
- Sewer Name
- 21 CENTER STREET TRUNK
- City
- INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Maintenance Related
- Project
- 20190718MDM_CENTER_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0395
- Downstream MH
- 21 0394
- Dir. of Survey
- Downstream
- Length Surveyed
- 348.2 ft.
- Total Length
- 348.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

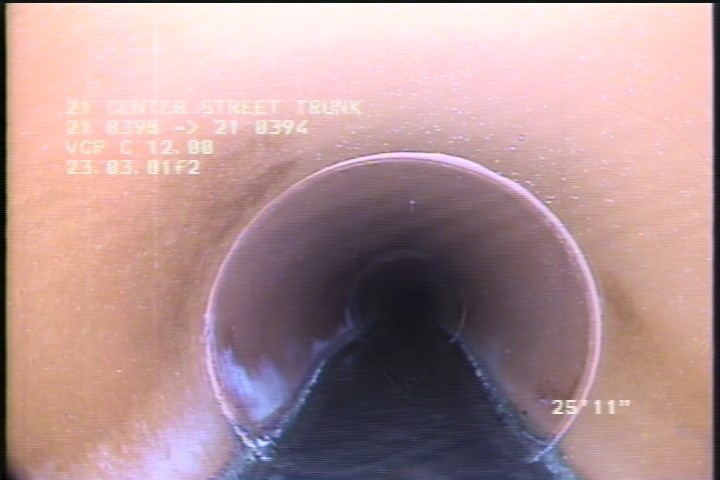

25.9 ft. - General Observation - 12" VCP

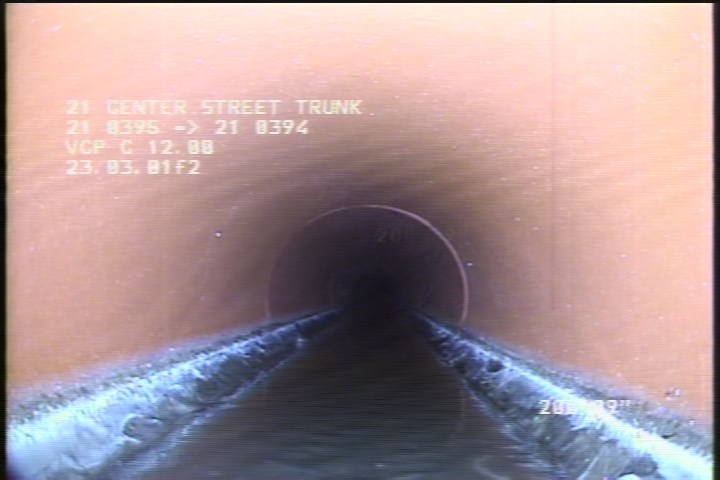

200.8 ft. - Deposits Attached Grease, 1 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1:30AM |
| 200.8 | DAGS | — |
| 348.2 | AMH | 1:55AM |
| 0 | MWL | — |
| 0 | MWM | — |
| 200.8 | MWM | — |
| 84 | TFC | STUB |
| 321.9 | TFC | STUB |
| 25.9 | MGO | 12" VCP |
Properties (5)
- additional_info
- PRE- CLEANING INSPECTION ONLY
- customer
- LACSD
- datetime
- 2019-07-18T01:25:52-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,SHADLER
- is_lateral_inspection
- false
