Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 12, 2019, 08:10 PM

  • H 0296_H 0295_7122019_131822.mp4

Date
07/12/2019
W/O
9776918
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00174
PipeID
P10751
Time
1:10 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8026
Sewer Name
H JOINT OUTFALL H - UNIT 3
City
PICO RIVERA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
21
Purpose
Capital Improvement Program Assesment
Project
20190712SHO_JOINT_OUTFALL_H_UNIT_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Upstream MH
H 0295
Downstream MH
H 0296
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole H 0295 to H 0296
MH: H 0295MH: H 0296upstream0 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES0 ft. MSA - Survey Abandoned - RESERSAL COMPLETE, ZOOMED IN AS FAR AS POSSIBLE0 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES0 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 05 to 07 o'clock - OLD MAG COAT2 ft. MWL - Water Level, 5 %of cross sectional area - DRY LINE2 ft. AMH - Downstream Manhole, Survey Begins - H 295

Observation photos (4)

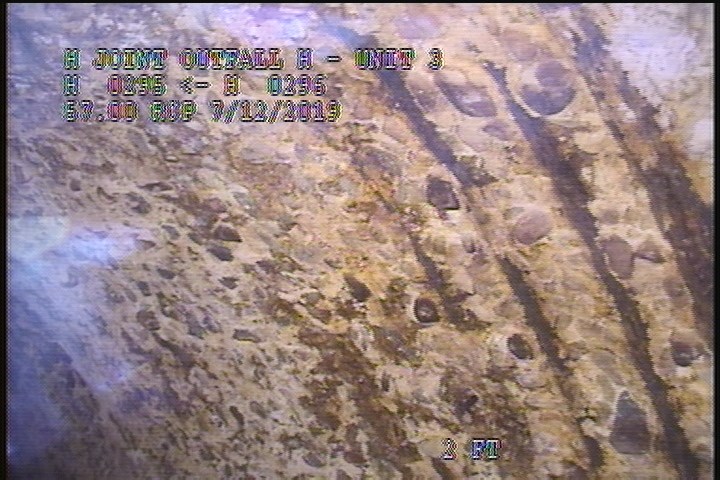

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

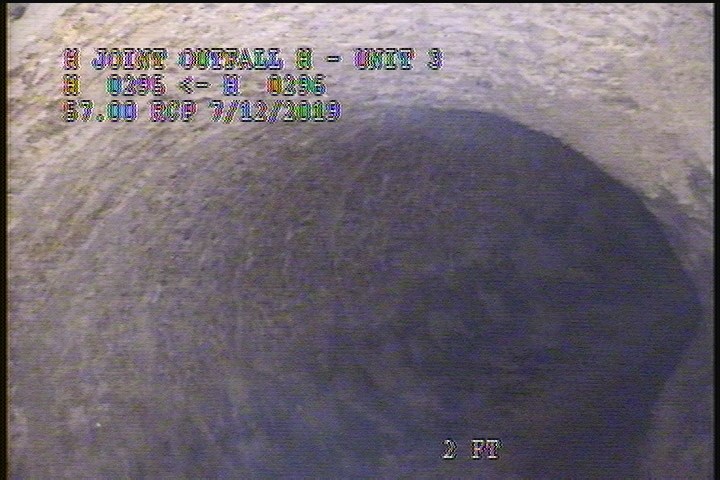

  • Survey Abandoned - RESERSAL COMPLETE, ZOOMED IN AS FAR AS POSSIBLE

    2 ft. - Survey Abandoned - RESERSAL COMPLETE, ZOOMED IN AS FAR AS POSSIBLE

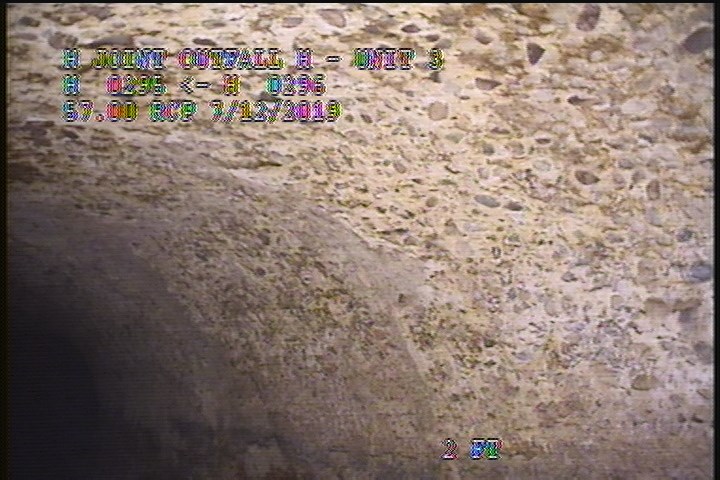

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES

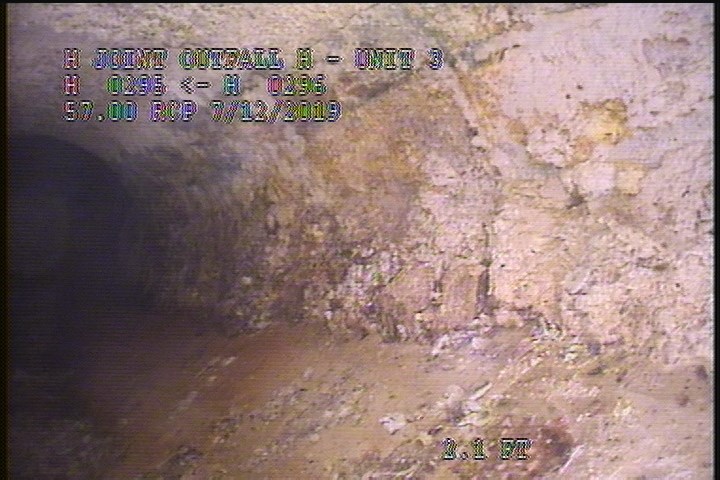

  • Obstacles Other, 10 %of cross sectional area, from 05 to 07 o'clock - OLD MAG COAT

    2 ft. - Obstacles Other, 10 %of cross sectional area, from 05 to 07 o'clock - OLD MAG COAT

All inspections of P10751Work order 9776918

Observations (6)

DistanceCodeObservation
2SRV—
0MWLDRY LINE
0AMHH 295
2MSARESERSAL COMPLETE, ZOOMED IN AS FAR AS POSSIBLE
2SAP—
2OBZOLD MAG COAT

Properties (7)

additional_info
LOOKING U/S TO COMPLETE THE INSPECTION
custom_field_three
REBAR IS VISIBLE, ALSO HAVE AGG. PROJ.
custom_field_two
2
customer
LACSD
datetime
2019-07-12T13:10:03-07:00
documentation
OBREGON, CASTILLO, BRAR, IGNACIO
is_lateral_inspection
false
