Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 12, 2019, 07:56 PM

  • H 0296_H 0295_7122019_130344.mp4

Date
07/12/2019
W/O
9776918
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00174
PipeID
P10751
Time
12:56 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8026
Sewer Name
H JOINT OUTFALL H - UNIT 3
City
PICO RIVERA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
21
Purpose
Capital Improvement Program Assesment
Project
20190712SHO_JOINT_OUTFALL_H_UNIT_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Upstream MH
H 0296
Downstream MH
H 0295
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole H 0296 to H 0295
MH: H 0296MH: H 0295downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 2960 ft. MWL - Water Level, 5 %of cross sectional area - DRY LINE2 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES2 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES2 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 05 to 07 o'clock - OLD MAG COAT2 ft. MSA - Survey Abandoned - LOOKED D/S AS FAR AS POSSIBLE

Observation photos (3)

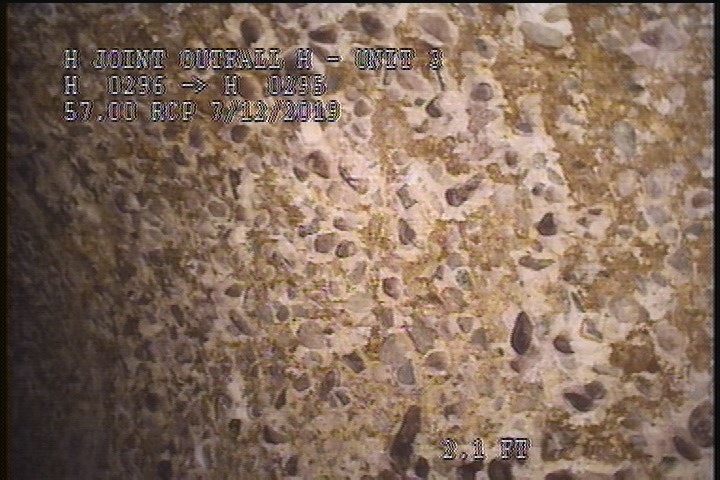

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES

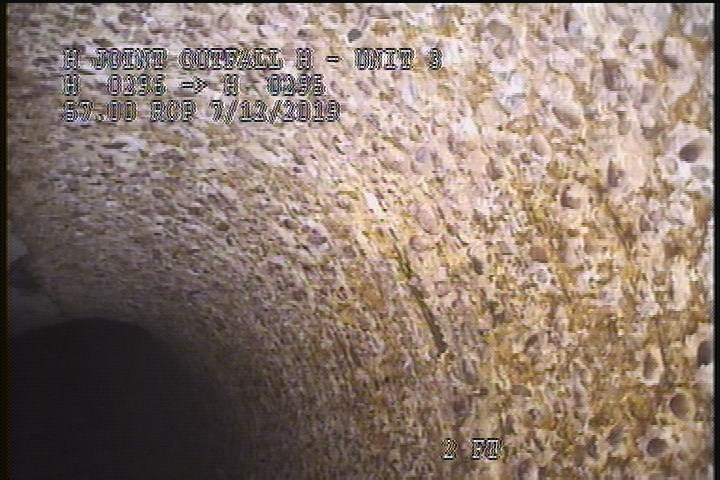

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

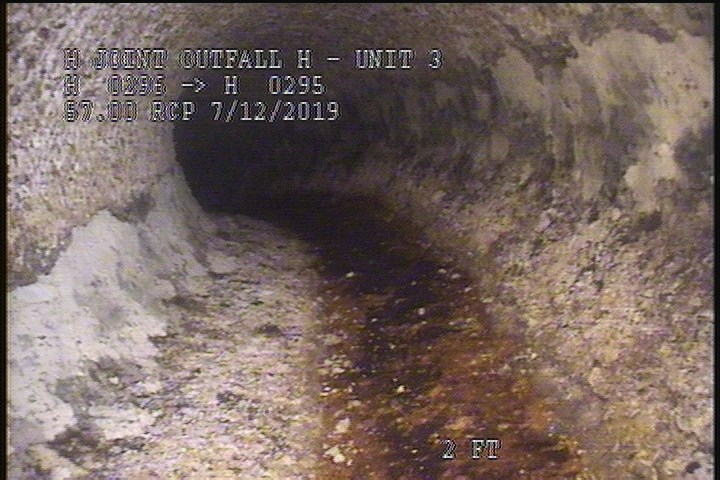

  • Obstacles Other, 10 %of cross sectional area, from 05 to 07 o'clock - OLD MAG COAT

    2 ft. - Obstacles Other, 10 %of cross sectional area, from 05 to 07 o'clock - OLD MAG COAT

All inspections of P10751Work order 9776918

Observations (6)

DistanceCodeObservation
2SAP—
2SRV—
0AMHH 296
2OBZOLD MAG COAT
0MWLDRY LINE
2MSALOOKED D/S AS FAR AS POSSIBLE

Properties (7)

additional_info
LOOKING D/S AS FAR AS POSSIBLE
custom_field_three
REBAR IS VISIBLE, ALSO HAVE AGG. PROJ.
custom_field_two
2
customer
LACSD
datetime
2019-07-12T12:56:58-07:00
documentation
OBREGON, CASTILLO, BRAR, IGNACIO
is_lateral_inspection
false
