Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 11, 2019, 07:08 PM

  • 2_1_1_12062019_001036.mp4

Date
06/11/2019
W/O
766537
Weather
Dry
Operator/Surveyor
J. VARGAS
Sewer ID
Z00714
PipeID
P14200
Time
12:08 PM
Certificate
U-209-8149
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6602-SC377528
Sewer Name
18 WASHINGTON BOULEVARD TRUNK
City
SANTA FE SPRINGS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_766537_TV18179_MAY2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0366
Downstream MH
18 0365
Dir. of Survey
Downstream
Length Surveyed
42.4 ft.
Total Length
73.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4122
O&M Rating
9
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 0366 to 18 0365
MH: 18 0366MH: 18 0365downstream0 ft. VC - Vermin Cockroach, within 8 inches of joint: YES0 ft. MWM - Water Mark, 65 %of cross sectional area0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 18 03662 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start39.8 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish39.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish42.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED42.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED42.4 ft. AMH - Downstream Manhole, Survey Ends - 18 0365

Observation photos (2)

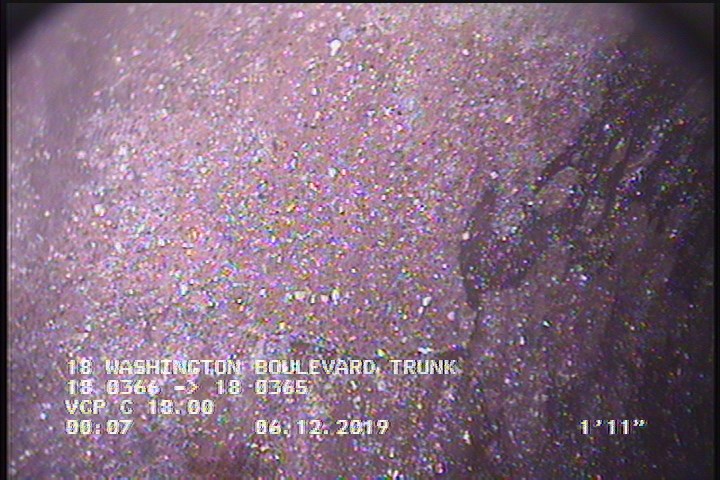

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

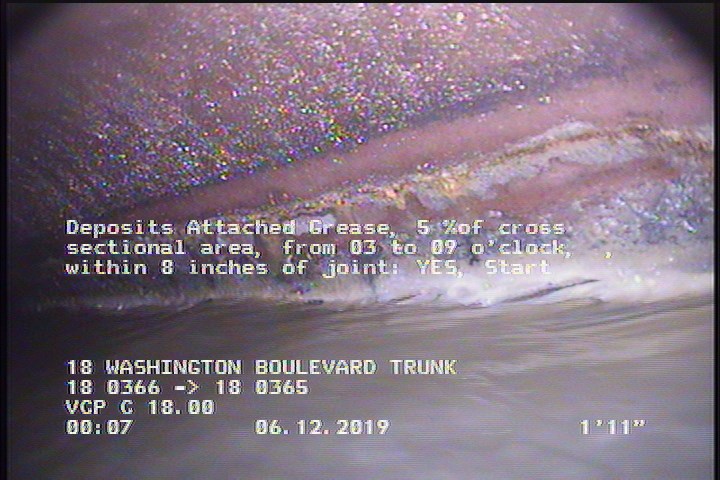

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14200Work order 766537

Observations (12)

DistanceCodeObservation
2DAE—
42.3MGOCONNECTION AT MH 9 O'CLOCK CAPPED
0VC—
42.3MGOCONNECTION AT MH 3 O'CLOCK CAPPED
39.8DAE—
0MWM—
0MWL—
39.8DAGS—
0MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
2DAGS—
0AMH18 0366
42.4AMH18 0365

Properties (6)

additional_info
SC77528
custom_field_two
3
customer
LACSD
datetime
2019-06-11T12:08:05-07:00
documentation
PRO PIPE
is_lateral_inspection
false
